Application

NA180 is particularly suitable for apartments and two to three-bed houses.

Description

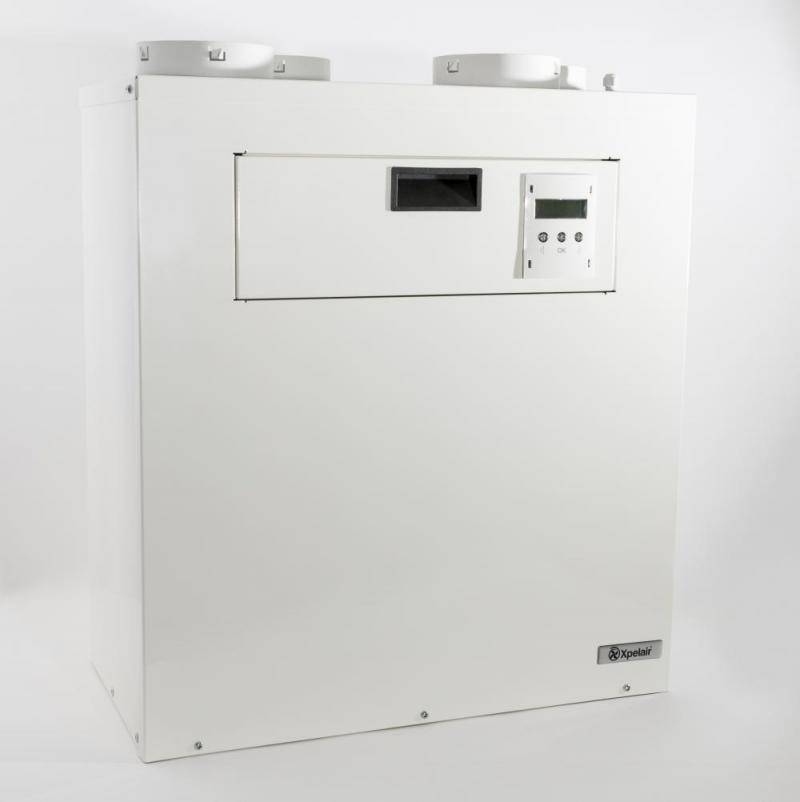

Natural Air 180 Mechanical Ventilation with Heat Recovery unit provides balanced whole-house ventilation to prevent pollutants getting trapped inside the home. There is also a Passivhaus-approved model complete with duct heater available.


Features and benefits:

  • Sound absorbing EPP construction with metal casing.
  • Fans are configured for optimal efficiency, with forward curved impellers and housed in robust steel.
  • Easy installation in two lightweight pieces.
  • Onboard active humidistat.
  • Control panel located on front panel.
  • Filter change signal.
  • Easy maintenance with access to components from the front.
  • Customisable with various controls and add-ons.
  • 100% summer bypass and winter defrost.

General information

Color

White

Shape

Rectangle

Width

552 mm

Height

609 mm

Warranty description

Two year

Uniclass

Pr_65_67_29_23 Domestic fan unitsPrimary

CAWS

U90/413 Ventilation fan units

U90/413 Ventilation fan units

Specification data - Domestic fan units

Duty

77 L/s (FID), 61 L/s (at 250 Pa).

Manufacturer guidance

Maximum extract performance.

Mounting

Wall.

Kitchen cupboard.

Controls

Integral humidity sensor.

Motor

EC type.

Air speed

Trickle/boost/purge.

Power

148 W (maximum).
