NATURALSoundBlok Timber Reflective Acoustic Fence - Timber Reflective Barriers
Verified by manufacturer 4 months ago
Augered foundations
Augered foundations
High Specification Timber Acoustic fencing/ reflective barrier. NATURALSoundBlok is perfect cost effective solution for use on roads, rail, industrial and house building.
Application
GRAMM NATURALSoundBlok Acoustic fencing/ reflective barrier, can be set into concrete foundations, bolted down to individual concrete pads or a continuous concrete strip/pad.
Typical applications:

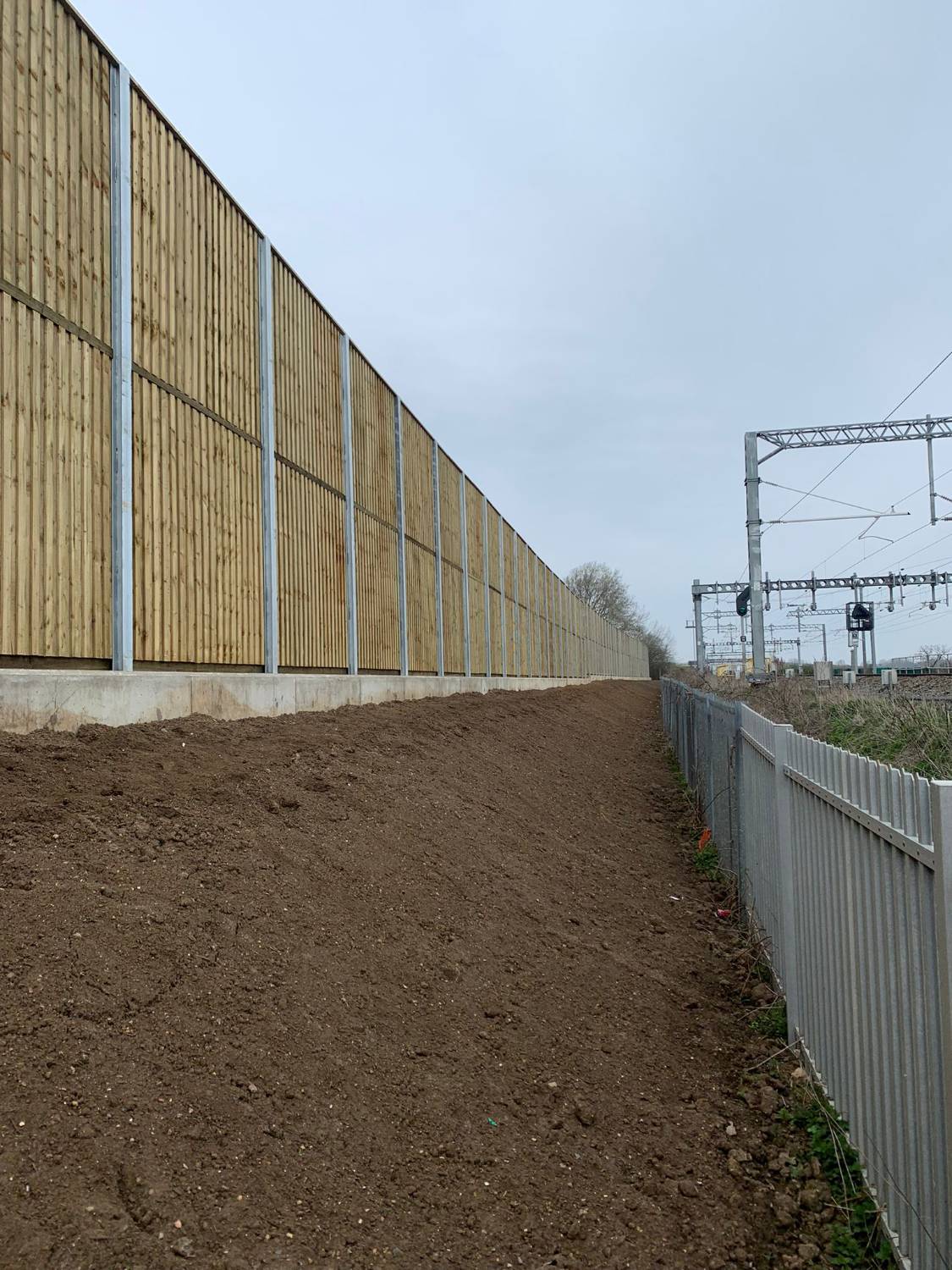

- Road; rail; commercial; industrial; utilities; ports; residential and housing.
Description

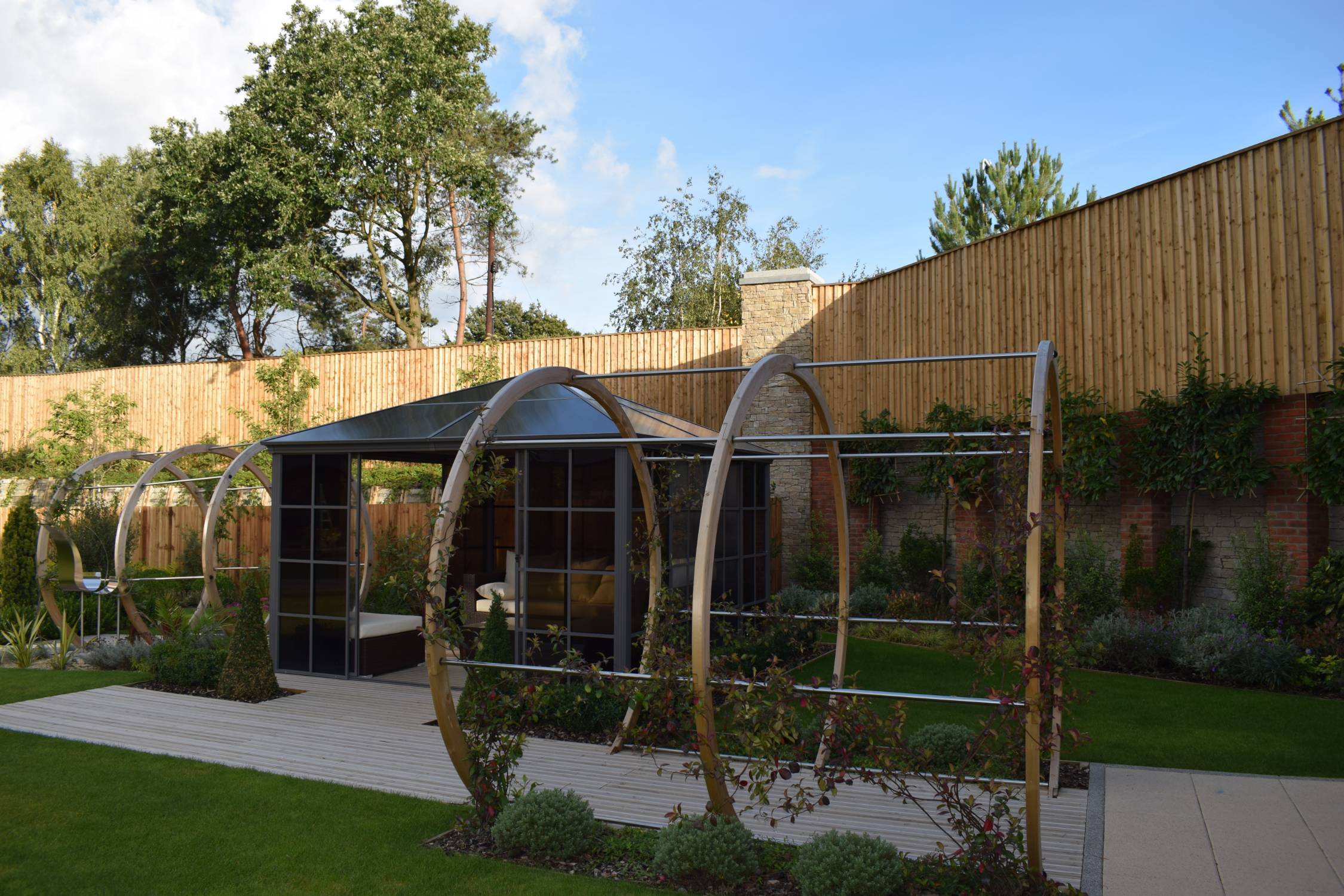

NATURALSoundBlok timber Acoustic fencing/ reflective barrier with a classic look most suited to rural environments.
Features and benefits:
- Panels are constructed using incised, Tanalith® E pressure-treated timber which is sourced from an FSC-approved supplier.
- Barrier heights up to 10 m with bay widths between 1 and 3 m.
- Developed to provide high decibel reductions (30 DLR) and 30-year maintenance-free design life.
- CE Marked for use on road traffic schemes and National Highways compliant to LD119.
- Uses an exclusive double acoustic board design on structural supports which allow the timber to move whilst maintaining an acoustic seal for the full life span.
- Can be manufactured to suit the requirements of each individual site, ensuring the barrier system provides the highest level of sound reduction available.
General information
Color | Green Brown Manufacturer guidancePanels only (Tanalith® E). |
Finish | Pre-treated Guidance for specification option: Tanalith® E. Natural Guidance for specification option: Timber. |
Material | Timber Steel |
Shape | Square Rectangle |
Length | 3000 mm |
Width | 119 mm |
Height | 2000 mm 2500 mm 3000 mm 3500 mm 4000 mm |
Uniclass | |
CAWS | Q40/430 Proprietary fencing Q40/170 Acoustic fencing Q40/30 Proprietary fencing |
Product range |
Specification data - Post and panel fencing systems
System performance | Guidance for specification option: Insert requirements and cross-reference to related clause(s) e.g. Performance of acoustic fencing, or omit. |
Posts | Steel RSJ posts.Manufacturer guidanceWith baseplates fixed to concrete pad footings using chemfix resin anchors/ studs. OR Set into augered foundations using ST5 concrete. |
Post foundations | Augered foundations.Guidance for specification option: Maximum 3 m centres. |
Rails | Timber structural rails.Guidance for specification option: Consult manufacturer for details. |
Base boards | Timber structural gravel boards.Guidance for specification option: Consult manufacturer for details. |
Panels | NATURALSoundBlok® Reflective panels, Tanalith® E (green).NATURALSoundBlok® Reflective panels, Tanalith® E (brown).Manufacturer guidanceColour achieved with Tanatone®. See also Bay size and Fence height below to specify dimensions. |
Fence topping | Timber fencing battens. |
Site applied finishes | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer for options e.g. matching doors and insert requirements, or omit. |
Panel size | Guidance for specification option: Insert requirements or e.g. drawing reference/ schedule:
Bespoke dimensions available on request. |
Fixings | Stainless steel. Guidance for specification option: Consult manufacturer for details. |
Panel weight | 26.4 kg/m². |
Sound absorption | Class A0 (0 DLa). |
Sound insulation | Class B3. |
Sound reflection | 30 DLr. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Timber Steel |
Recyclability | 90% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

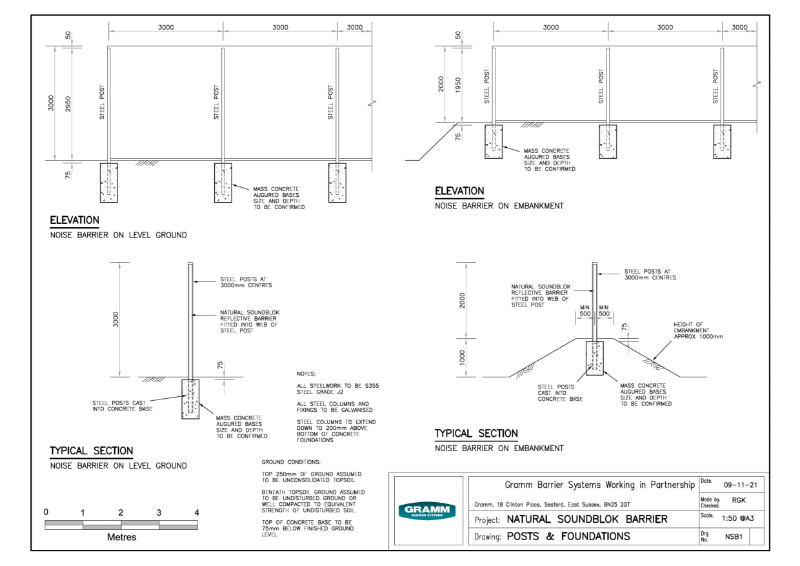

NATURALSoundBlok Reflective Acoustic Fence Layout

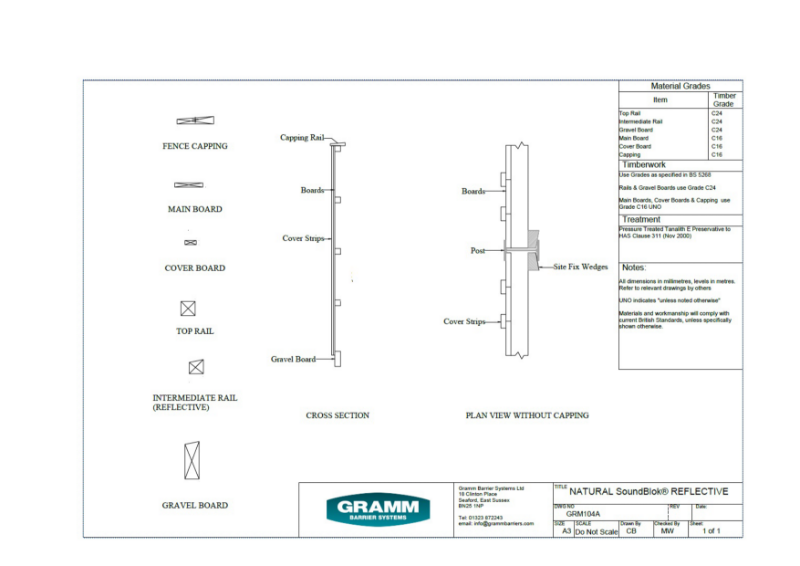

NATURALSoundBlok Panel Drawing

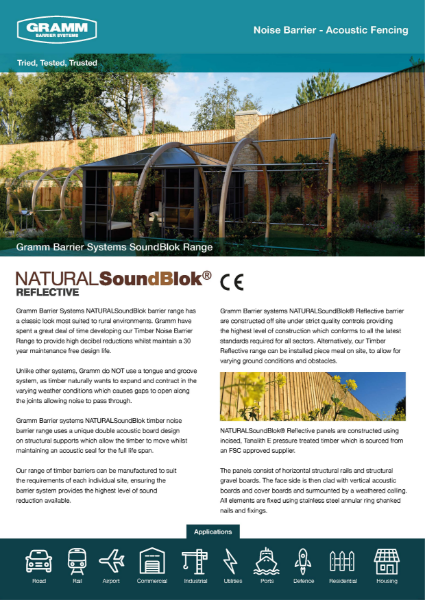

NATURALSoundBlok Timber Acoustic Fence
