New Supreme

Verified by manufacturer 5 months ago

Interfloor Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

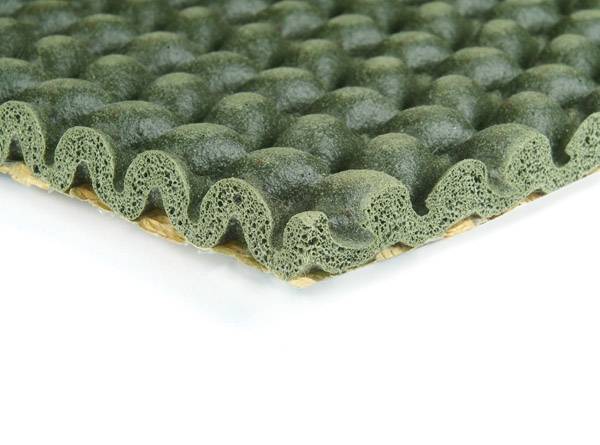

Underlay suitable for the stretch-fit installation of carpets.

Jump to:
+44 (0)1706 238820 Website

Application

Suitable for the stretch-fit installation of carpets.

Description

Underlay suitable for the stretch-fit installation of carpets.


Features and benefits:

  • Sponge rubber.
  • Green Label Plus certified.
  • End use classification (to BS 5808): L/U, luxury use.
  • Contains not less than 65% post-consumer recycled material. MR 4.0 points available.
  • At the end of the underlay's useful life it can be 100% recycled. MR 2.0 points available.
  • Regional materials: Where used within 500 miles of production facility, MR 5.0 points available.
  • Meets or exceeds the industry standard for indoor air quality as established by the CRI Green Label Programme. IEQ 4.3 points available.
  • Antimicrobial and mildew resistance: Pass.
  • Russian GOST FR Test Classification: KM3.
  • US Methenamine Pill Test: Pass.

General information

Color

Green

Finish

Other

Material

Rubber

Shape

Other

Length

1.37 mm

Warranty description

Lifetime

Uniclass

Pr_35_57_11_13 Cellular rubber underlaysPrimary

CAWS

M50/170 Carpeting

M50/25 Carpeting

Product range

Carpet Underlays

Specification data - Cellular rubber underlays

Use class

L/U.

Thickness (minimum)

8.75 mm.

Manufacturer guidance

Nominal.

Recycled content

65%.

Guidance for specification option:

Post-consumer.

Nominal weight

3424 g/m².

Manufacturer guidance

Nominal square weight.

Area

10.96 m².

Manufacturer guidance

Roll area.

Roll size

1.33 x 8.24 m.

Roll weight

37.5 kg.

Manufacturer guidance

Nominal roll weight.

Nominal density

391 kg/m³.

Odour

No objectionable odour.

Colour

Green.

Backing

Printed Textron backing.

Impact sound reduction

39 dB.

Manufacturer guidance

Delta Lw.

VOC emissions

Meets low VOC emission criteria, certified GLP051 Cat CC10 rubber.

Manufacturer guidance

US Carpet and Rug Institute.

Thermal resistance

1.00 togs.

Thermal resistance (R-value)

0.08.

Compression

143 J/m².

Guidance for specification option:

Work of compression (minimum 50 J/m²).

88%.

Guidance for specification option:

Retention of work of compression (minimum 40%).

Technical characteristics, other

3.7%.

Guidance for specification option:

After dynamic loading.

3.3%.

Guidance for specification option:

After static loading.

Manufacturer guidance

Loss in thickness (maximum 15%).

Performance

2.2 PSI.

Guidance for specification option:

25% deflection.

6.7 PSI.

Guidance for specification option:

50% deflection.

15.9 PSI.

Guidance for specification option:

65% deflection.

Manufacturer guidance

Test Performance to US Standards. CFD (Compression Force Deflection).

Performance class

Moderate traffic class I.

Manufacturer guidance

Recommended use.

Flammability

Low radius of ignition.

Manufacturer guidance

Hot metal nut test.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Guidance for specification option:

Haslingden, BB4 4LS, UK.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

44.49 kg CO₂ eq/unit

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Third party certifications

Third party certifications

EPD

EPD

Flat sponge underlay 8.25-11.4mm

Literature

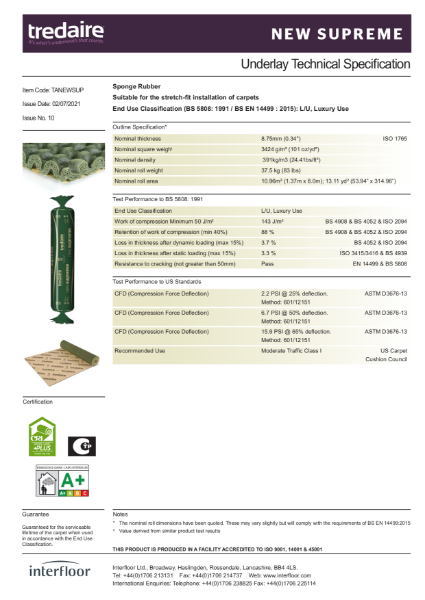

New Supreme Specification
