Newcastle Canopy / Shelter - Canopy and open sided shelter.

Verified by manufacturer 28 days ago

BXMW/NEWS/MONO

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

The Newcastle Canopy / Shelter is a cost effective, free standing versatile canopy. Manufactured to any size, this modular canopy is made from galvanised steel with a choice of roof panels available.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

The Newcastle canopy / shelter accommodates a large range of covered applications including waiting areas, walkways, dining areas, outdoor learning/play areas, covered entrances and external pedestrian spaces.


This modular canopy is ideal for a range of sites including commercial locations, public transport hubs, schools, hospitality, sport and leisure centres and healthcare settings.


The Newcastle Canopy / Shelter brings versatility to every outdoor space and opens up the possibility of fresh opportunities, new ventures and innovative uses for existing site assets. With a Newcastle canopy or shelter, outdoor areas are reimagined and given a new lease of life with function and purpose.


The Broxap canopies for schools range includes everything from playground shades to cycle parking shelters, with the Newcastle canopy often chosen to provide outdoor learning space or outdoor dining facilities. Our experienced teams understand that education environments need to deliver best value not only in terms of budget but also through the provision of a high-quality learning environment. This is why the Newcastle is well-suited to schools, nurseries, colleges and universities.


Our varied range of shelter styles and designs ensures we can offer a canopy solution suited to every location, whether it is meeting specific policy aims such as providing UV protection and much-needed shade in summer, or for practical reasons such as releasing pressure on indoor space through the creation of an outdoor school dining area complete with weather-proof canopy. We also design, manufacture and install canopies for drop-off and pick-up points at schools, with many of our passenger waiting shelter options also suitable for the likes of healthcare environments.


On a larger scale we can provide covered parking options for ambulances, taxis and other vehicles as well as entrance canopies and car park shelters, offering protection to drivers as they retrieve their pay and display tickets.


Modular polycarbonate canopies such as the Newcastle Canopy / Shelter open up al fresco dining options at cafes, pubs and restaurants while an entrance canopy can help venues stand out among the competition in the high street.


The Newcastle can also be found at retail parks and business villages, encouraging visitors to stay on site for longer with attractive covered outdoor socialising spaces.

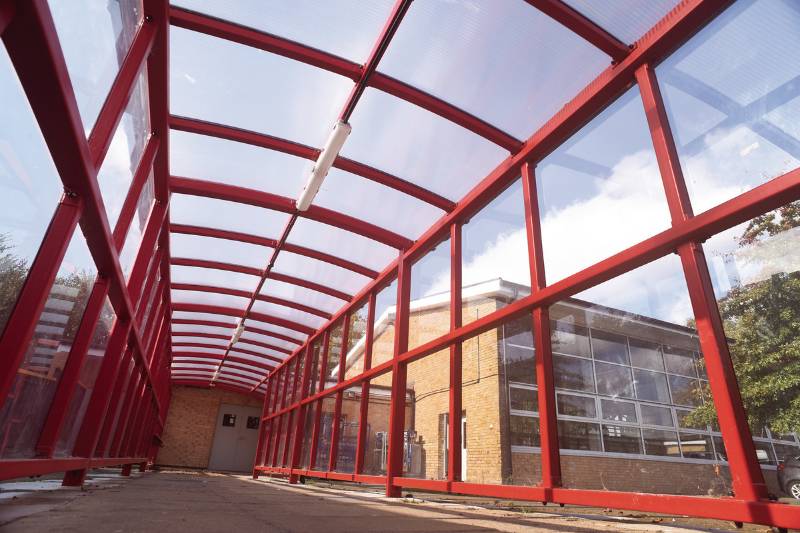

It can form a covered walkway to guide pedestrians safely to entrance and exit points, as well as offer safe routes around busy transport hubs.


Whatever the application, Broxap clients can be sure they are dealing with a responsible manufacturer, designing shelters which comply with Eurocode standards. Our engineers follow an embedded design philosophy of creating shelter and canopy products that are safe, strong and secure and which are made from long-life durable materials.

Description


Features and benefits of the Newcastle shelter and canopy include:

  • Multi-wall polycarbonate roof sheeting
  • Choice of roof shape
  • Robust tough construction featuring load bearing purlins
  • Pitch can be towards or away from existing building
  • Range of standard sizes available as well as made to measure designs
  • Welded end frames and purlin section made from heavy-duty steel box section assembled with anti tamper high strength bolts
  • Hot dipped galvanized to BS EN ISO 1461
  • Decorative polyester powder coating
  • Modular extension to any length
  • Lattice beam, optional for large spans (BXMW/NEWSLAT)
  • Metal profile, trapezoidal roof cladding (other finishes available)
  • Full installation service
  • Internal lighting or solar lighting.


The Broxap Newcastle Canopy and Shelter is suited to a wide range of uses. This includes:

  • Playground canopies
  • Outdoor classrooms
  • Outdoor dining areas
  • Covered walkways
  • Recreational areas
  • Healthcare canopies
  • Waiting areas
  • Pick up and drop off zones

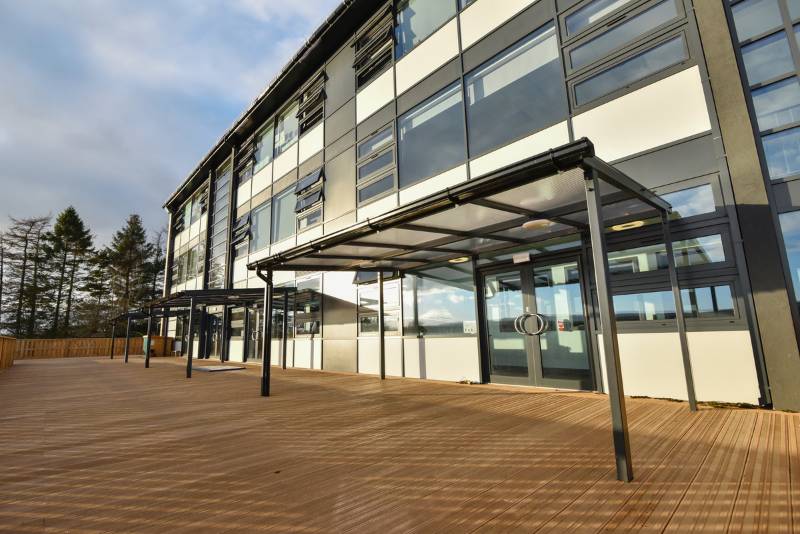

  • Entrance canopies
  • Social spaces
  • Car park canopies.


Its modular design is ideal for nurseries, schools, colleges and universities, allowing for the easy expansion and adaptation of the Newcastle Canopy to meet the needs of users.

The Newcastle Canopy offers an attractive multi-functional design which is easy to maintain and happily contrasts and complements existing buildings and structures. The Newcastle Canopy from Broxap is ideal for hospitals, clinics and other healthcare settings where staff, visitors and patients may need to travel across the site. It is the perfect Pick Up and Drop Off (PUDO) Canopy, providing a dry, safe waiting area for pupils getting the school bus, or for defining taxi ranks or collection points.


Other options include:

  • Lean-to design (Building mounted)
  • Opal or Bronze roof cladding
  • Glazed roof cladding
  • Infill panels in PETg UV
  • Glazed infill panels
  • PVC roller blinds
  • Electric operated steel roller shutters
  • Manual push bar release fire doors
  • UPVC or aluminium guttering and down pipes
  • Coloured vinyl transfers
  • Heating
  • CCTV
  • Protective post pads.


Polyester Powder Coating


Steel elements of your chosen Newcastle shelter can be powder coated. We have a standard range of colour options available, however, should you have a specific colour in mind to match a co-ordinated scheme, we can provide a similar colour from within the RAL or BS range to match.

Broxap’s advanced polyester powder coating system features the unique, eco-friendly PROTEXâ„¢ metal surface treatment and decorative colour coating process.

PROTEXâ„¢ employs the chemistry of organic phosphorus compounds and is totally free of heavy metals.

The nanocoating created by the process provides excellent adhesion for powder coating metal and achieves BS EN 13438:2013 compliance for superior levels of corrosion protection compared to conventional powder coating methods.


Trapezoidal Roof Cladding


Designed to withstand even the most demanding and aggressive environments, our pre-finished steel, trapezoidal roof cladding provides super durability and corrosion resistance. It is made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.

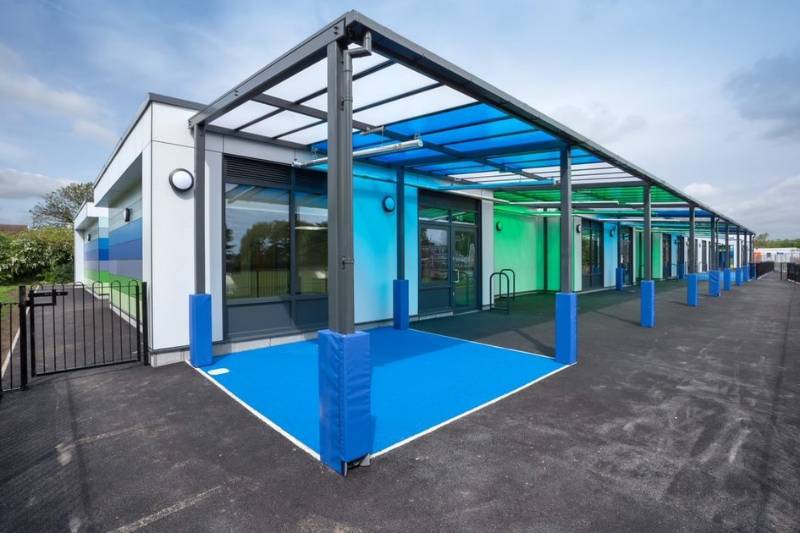

Canopy and Shelter Post Protectors


Post protectors are an ideal way to both add extra protection and enhance your canopy or shelter. Post protectors can be supplied in a single colour or in multi colour arrangements to create a bright visual effect beneath the canopy or shelter.


Specialist Glazing


We can produce bespoke glazing solutions such as coloured glass and even materials pressurised between toughened laminate glass panels for a stunning visual effect.

General information

Color

Finish

Galvanized

Powder-coated

Primed

Material

Steel

Polycarbonate

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

12 months parts and labour, including 10 years' guarantee and 50 year design life.

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Newcastle Monopitch

Dimensions

-

Plan size

3000 x 2000 mm.

3000 x 2500 mm.

3000 x 3000 mm.

3000 x 3500 mm.

3000 x 4000 mm.

3000 x 5000 mm.

4000 x 2000 mm.

4000 x 2500 mm.

4000 x 3000 mm.

4000 x 3500 mm.

4000 x 4000 mm.

4000 x 5000 mm.

5000 x 2000 mm.

5000 x 2500 mm.

5000 x 3000 mm.

5000 x 3500 mm.

5000 x 4000 mm.

5000 x 5000 mm.

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

Anthracite Grey RAL 7016

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

Glass.

Openings

-

Doors

Aluminium Door.

Fixed PETg UV Clad Side Panels.

Roller Shutter Doors.

PVC Roller Blinds.

Rainwater drainage

PVC Guttering.

Aluminium Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

Mesh Gates.

PET Gates.

PET Side Panels.

Multiwall Side Panels.

Glass Side Panels.

Trapezoidal profile 1000/32 side panels.

Flat steel Side Panel.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Polycarbonate

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

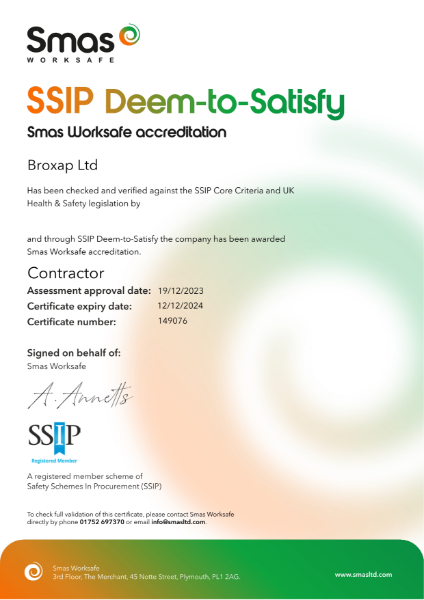

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

Newcastle Monopitch Specification Sheet

Newcastle Monopitch Specification Sheet

Broxap Street Furniture Showcase Brochure 2023

Broxap Street Furniture Showcase Brochure 2023

Shelters for Schools EYFS, KS1 & KS2 Brochure 2023/24

Shelters for Schools EYFS, KS1 & KS2 Brochure 2023/24

Shelters for Schools Secondary & Higher Education Brochure 2023/24

Shelters for Schools Secondary & Higher Education Brochure 2023/24

Case studies

Haltwhistle Primary Academy, Northumberland

Haltwhistle Primary Academy, Northumberland

Reynalds Cross School, Solihull

Reynalds Cross School, Solihull

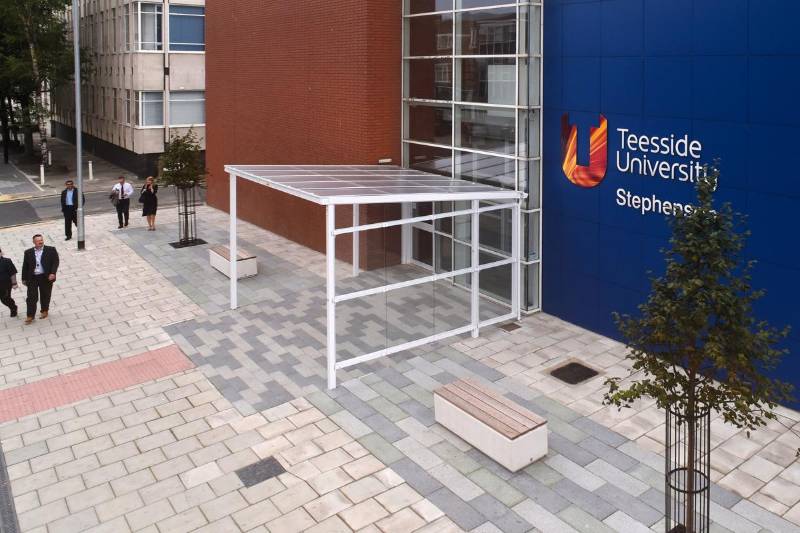

Teesside University, Middlesbrough

Teesside University, Middlesbrough

Wistaston Academy, Crewe

Wistaston Academy, Crewe

Ysgol Nantgwyn, Rhondda Cynon Taf

Ysgol Nantgwyn, Rhondda Cynon Taf

Hatch End High School, Harrow

Hatch End High School, Harrow

Ravensdale Infant and Nursery School, Derby

Ravensdale Infant and Nursery School, Derby

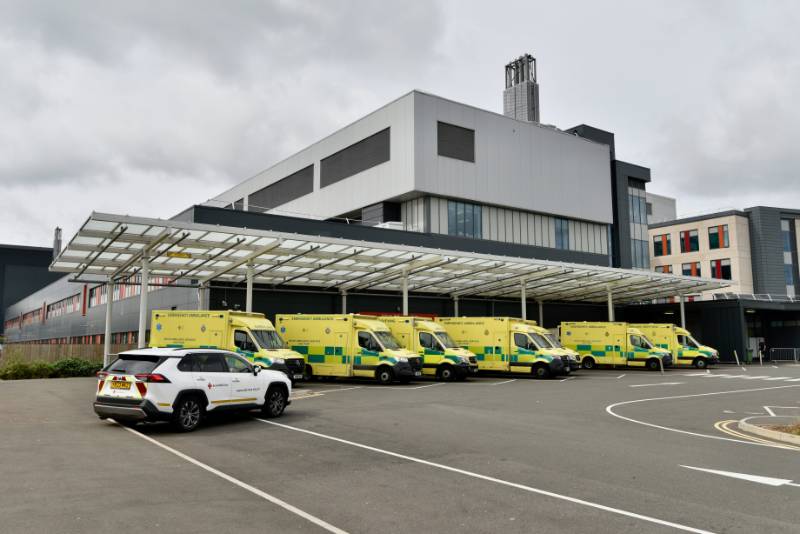

The Grange University Hospital, Gwent

The Grange University Hospital, Gwent

Tor View School, Rossendale

Tor View School, Rossendale

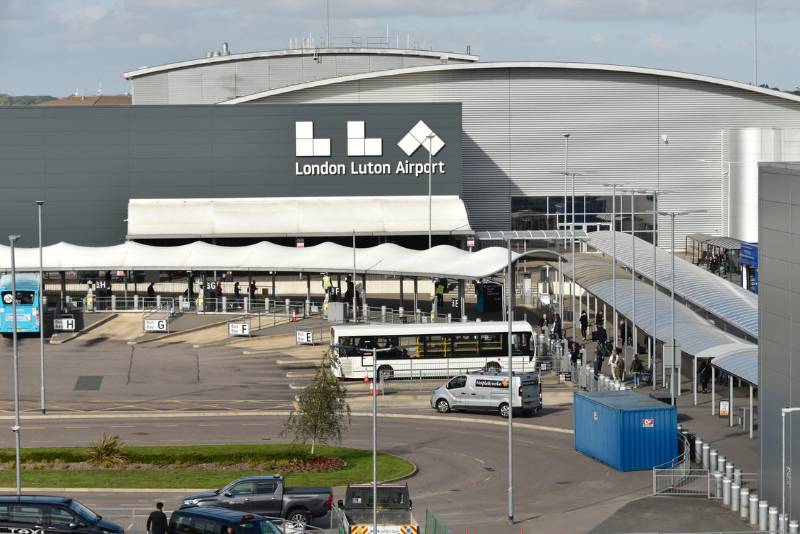

London Luton Airport
