Newcastle Duopitch Canopy - Canopy and open sided shelter

Verified by manufacturer 7 months ago

BXMW/DUO-LATT

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Suitable for a range of uses and locations, the Newcastle Duopitch is a versatile canopy solution.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

  • Outdoor Classrooms
  • Entrance Canopies
  • Covered Walkway
  • Outdoor Dining and Social Canopy

Broxap specialise in designing canopies and covered walkways that provide structurally sound and stylish solutions for every type of external requirement. Whether it's their standard or bespoke designs, all canopies work to complement our entire street furniture range.

Canopies and covered walkways are available in both traditional or contemporary styles, these which include glazed structures, polycarbonate canopies, timber structures, cast iron and fabric canopies. In addition, Broxap also have a number of roofing options, which include transparent polycarbonate, glass solutions or opaque architectural cladding.

The versatile canopy styles, materials and flexibility in design means that our canopies suit any application. Uses can include a playground canopycanopies, outdoor dining areas, and passenger waiting shelters, to name a few. Canopies are available as standard or bespoke designed to any requirements

Covered walkways provide a cost effective solution to create a link walkway. Suitable for many purposes from universities and hospitals to shopping arcades and schools. Covered walkways provide a link walkway between existing buildings, providing protection from the weather. Changes in height, direction and roof profile are all easily integrated into our walkway offering which is bolstered by our Design and Build service.

Bespoke Canopies And Walkways

As part of the bespoke Design and Build service, we offer a complete bespoke solution from the initial consultancy through to the installed and finished product. As part of our bespoke canopies and walkways service, they also offer optional extras such as the inclusion of guttering, side screens, solar lighting, a colour range, as well as other add-ins.

Description

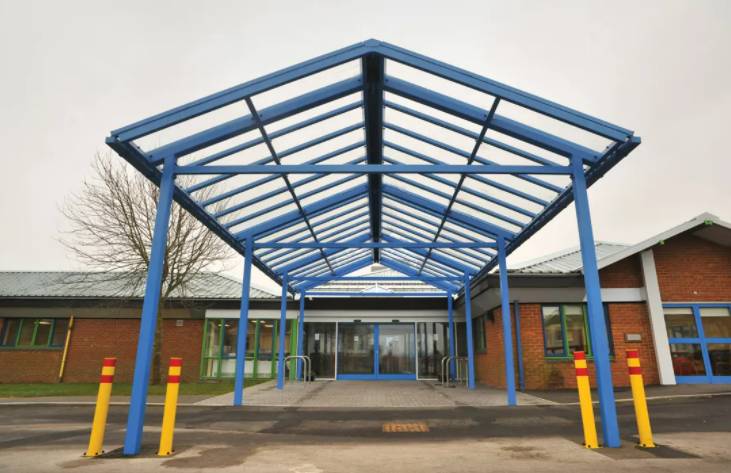

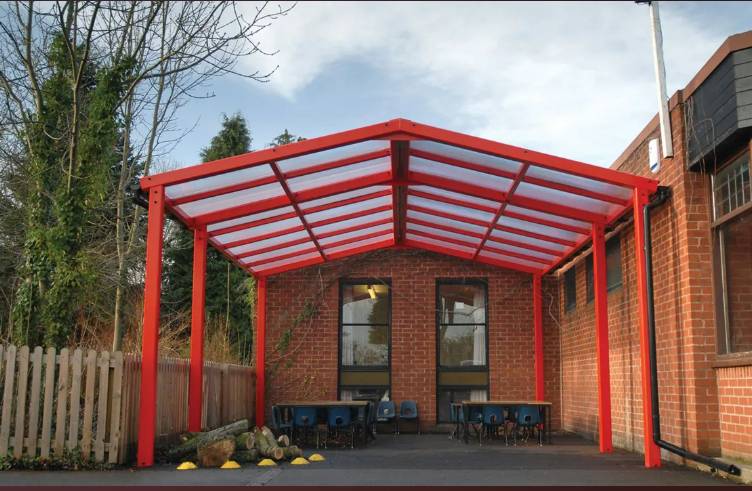

This duopitch shelter is a true modular canopy / walkway which combines contemporary features with a traditional look.


Features and benefits:

  • Trapezoidal Roof Cladding (other finishes available)
  • Internal lighting or solar lighting
  • Polyester powder coating
  • Multi wall polycarbonate roofing sheets
  • Modular design, extensions added without drilling or welding
  • Robust tough construction
  • Peaked roof to shed rainwater to both sides
  • Available in many sizes / orientations
  • Polyester powder coated in a standard colour
  • Welded end frames and purlins made from heavy-duty box section assembled with anti-tamper high strength bolts
  • Hot dip galvanized to BS EN ISO 1461:2009
  • Full installation service

General information

Color

Finish

Galvanized

Primed

Powder-coated

Material

Steel

Polycarbonate

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Newcastle Duopitch Lattice

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013.

Goose Grey BS 4800 00-A-05.

Holly Green BS 4800 14-C-39.

Jet Black RAL 9005.

Nimbus Grey BS 4800 10 A 07.

Sky Blue RAL 5015.

Traffic Yellow RAL 1023.

Traffic White RAL 9016.

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

Glass.

Openings

-

Doors

Aluminium Door.

Vinyl roller blinds/doors.

Rainwater drainage

PVC Guttering.

Aluminium Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

Mesh Gates.

PET Gates.

PET Side Panels.

Multiwall Side Panels.

Glass Side Panels.

Trapezoidal profile 1000/32 side panels.

Flat steel Side Panel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

Newcastle Duopitch Specifications Sheet

Newcastle Duopitch Specifications Sheet
