Noracon Cradle

Verified by manufacturer 3 months ago

BMU workcage scout.

Eurosafe Solutions Ltd Variant:

Lightweight aluminium BMU cradle for facade access and maintenance.

Jump to:
+44 (0)114 250 7411 Website

Application

Cradle designed to provide access to facades for general maintenance purposes.

Cradles can be mounted to monorails via a variety of trolleys to provide full access to buildings.

Horizontal and vertical movement can be achieved using manually powered or electrically powered trolleys and hoists.

Description

Lightweight aluminium BMU cradle.


Features and benefits:

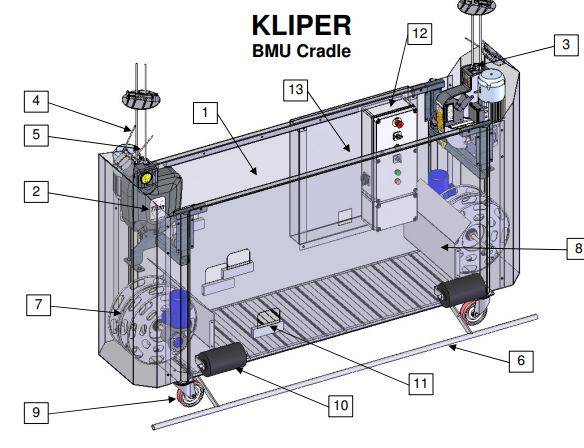

-Kliper BMU Cradle

  • Lightweight aluminium construction.
  • All-around solid plate aluminium cladding, including around the wire winders.
  • Powered by TITAN-403 PI traction hoist with: electro-mechanical overload detection device in series, electro-mechanical service brake, ‘No Power’ emergency descent, thermal protection in series and slack rope safety device.
  • Safety devices: Top limit switch, ultimate top limit switch, mechanical anti-tilt device, bottom limit trip bar, twin-drum wire winders up to 125 m and internal cover over wire winder.
  • Low-noise castor wheels Ø160 mm.
  • Non-marking soft wall rollers.
  • CE-marked safety harness attachment points.
  • Foot-steps on both sides for in/ out.

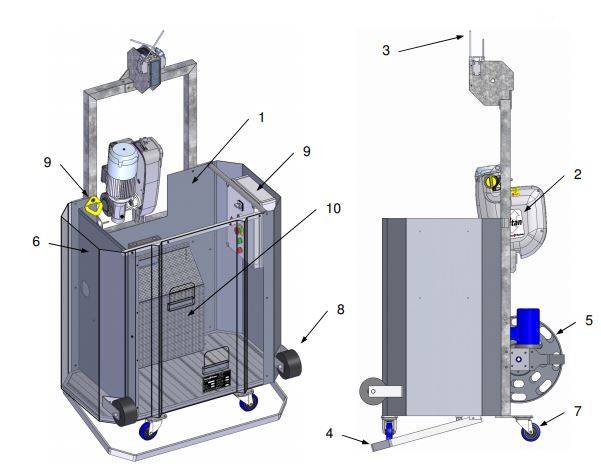

-BMU Workcage Cradle

  • Light weight aluminium construction .
  • All-around cladding (solid aluminium plate).
  • Powered by TITAN hoist with thermal protection.
  • Power supply: 3 x 415 V + Neutral + Earth, three phase, 50Hz.
  • Two built-in safeties: Slack rope safety device and overspeed safety device.
  • Top and Ultimate top limit switch.
  • Bottom limit trip bar.
  • Electro-mechanical overload detection device.
  • Electro-mechanical service brake.
  • ‘No Power’ emergency descent system.
  • Twin-drum wire winders up to 125 m.
  • Internal cover for wire winder.
  • Cable bin max. capacity 75m of cable.
  • Low-noise castor wheels.
  • Non-marking soft wall rollers.
  • CE-marked safety harness attachment points.

General information

Color

Silver

Other

Guidance for specification option:

Can be powder coated to any standard RAL.

Manufacturer guidance

RAL painting available, consult manufacturer and insert requirement.

Finish

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_40_70_75_01 Access cradlesPrimary

CAWS

N25/110 Permanent suspended access system

Product range

Facade Access

Specification data - Access cradles

Carrying capacity

One person.

Rated load

1200 N.

Manufacturer guidance

Safe Working Load (SWL).

Working dimensions

-

Clear working width

655 mm.

Length

700 mm.

1100 mm.

1500 mm.

Platform construction

-

Type

Single deck.

Material

Aluminium.

Factory finish

-

Coating

Not required.

Powder coated.

Colour

Not required.

RAL.

Type

BMU workcage scout.

Power supply

415 V, 50Hz.

Ropes

Ø 8.4 mm (52.3 kN).

Manufacturer guidance

Safety and suspension rope.

Control cabinet

Required.

Guidance for specification option:

  • Hold to run ‘up/down’ operating buttons.
  • Emergency stop.
  • Bottom trip bar bypass button.
  • Overload warning light.
  • ‘Power-on’ indicator light.
  • Thermal protector for wire winder motor.
  • Hour Meter.
  • Phase Protector.
  • 230V control circuit.

Accessories

Not required.

Telescopic wall rollers.

Controls for monorail trolleys.

Low Voltage Control Circuit (48 V).

Single phase and 60 Hz power supplies.

Guidance for specification option:

Special request.

Sustainability data

Country of material origin

Norway

Country of product manufacture

Norway

Recyclability

100%

Case studies

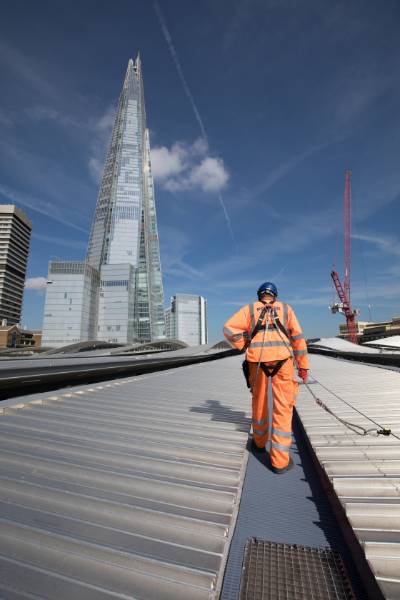

London Bridge Station
