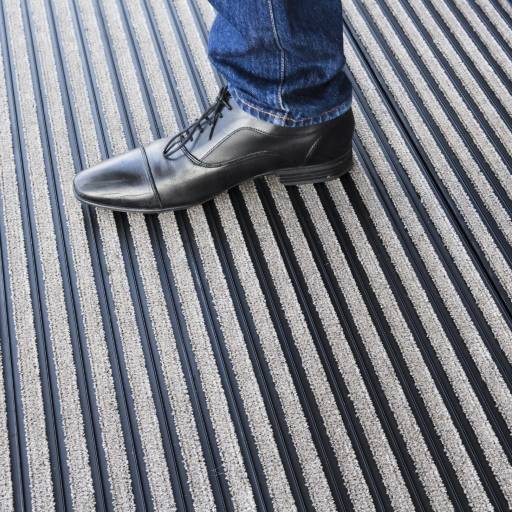

Nuway Tuftiguard Double Open - Entrance mat
Verified by manufacturer 5 months ago
Tuftiguard Classic
Tuftiguard Classic
Certificate of Conformity
Certificate type
Nuway Tuftiguard Entrance System has the durability, strength and structural integrity to deliver excellent performance and appearance retention in very heavy traffic locations.
Application
Nuway Tuftiguard has the durability, strength and structural integrity to deliver excellent performance and appearance retention in intense-traffic locations, and where high levels of soil have to be removed from the soles of shoes and wheel treads.
Description
Customizable, double-sided entrance matting, available with single or double wiper strips.
Features and benefits:
- Matting placed outside will defend against soil and the coarsest of foot-borne dirt.
- Matting placed inside will defend against foot-borne moisture and finer dirt particles.
- Nuway Tuftiguard can be customized with names, logos and corporate messages.
- Available with single or double wiper strips for increased moisture removal.
- Available in open or closed format.
- Nuway Tuftiguard is available in Bamboo: a sustainable species of grass that also prevents strobing in bright entrances.
- Nuway Tuftiguard can be reversible, effectively doubling its life.
- There is a wide choice of wiper strips and scraper bars, which allow Tuftiguard mats to coordinate with all interior finishes.
General information
Finish | Anodized |
Material | Aluminium Rubber |
Length | Bespoke |
Width | Bespoke |
Warranty description | Ten year Guidance for specification option: Fifteen-year guarantee if installed by a FESSI, Forbo Entrance System Specialist Installer). |
Uniclass | |
CAWS | N10/300 Entrance matting |
Product range |
Specification data - Entrance mats
Arrangement | Loose lay external or internal. |
Pattern | Ribbed. |
Integral accessories | Not required.Aluminium matwell frame. |
Product Reference | Tuftiguard Classic |
Wiper | Rubber. |
Pile | 100% Polyamide BCF. |
Construction | Open. |
Number of wiper strips | Double. |
Maximum width per module | 2500 mm. |
Aluminium scraper bars | Not required. Silver. Black. Sand. Bronze. |
Scraper | Non-reflective aluminium. Bamboo. |
Colour | Not required. Grey. |
Maximum static load (Kg/ cm2) | 12 mm Aluminium = 200 kg. Guidance for specification option: Aluminium. 12 mm Bamboo = 100 kg. Guidance for specification option: Bamboo. 17mm Aluminium = 200 kg. 17 mm Bamboo = 200 kg. |
Dynamic loading | 12 mm Aluminium = 200 kg. Guidance for specification option: Aluminium. 12 mm Bamboo = 100 kg. Guidance for specification option: Bamboo. 17mm Aluminium = 200 kg. 17 mm Bamboo = 200 kg. Manufacturer guidance(kg) 2 wheels, 80mm, 20,000 passes. |
Thickness | 12 mm. 17 mm. |
Sustainability data
Country of material origin | United Kingdom |
Material | Aluminium Rubber |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
Third party certifications
Certificate of Conformity
SA8000 Management System Certification Certificate
