NVELOPE® Rainscreen Sub Frame System - NVF2F - Rainscreen Cladding System
Verified by manufacturer 7 days ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type

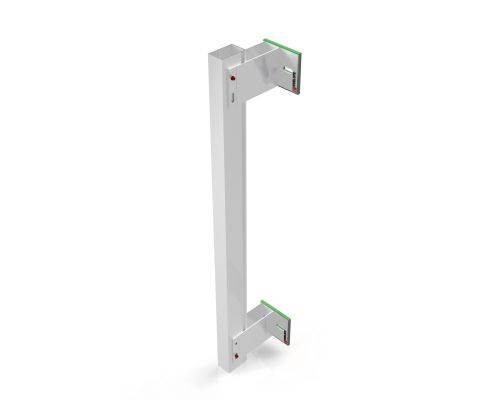

Aluminium secondary support carrier system utilizing floor to floor brackets, vertical box profiles and NVELOPE® 'back frame'.
Application
Suitable as a back frame system (NVF2F is the basis of all NVELOPE® Floor to Floor Rainscreen Systems) – NVF2F is suitable for face fixing/ rivet fixing cladding elements to (e.g. fibre cement, high pressure laminate (HPL), aluminium composite material (ACM) and metal rainscreen panels).
Description
Vertical aluminium sub frame system for rainscreen applications mounted at floor slab level, can be used for direct cladding panel fixing or combine with other system.
Features and benefits:
- NVF2F is the NVELOPE® back frame – vertical floor to floor cladding applications.
- NVELOPE® floor to floor (mullion) box ‘T’ profiles are fixed using NVELOPE® support brackets.
- NVELOPE® brackets absorb wind loading and allow for expansion and contraction.
- NVELOPE® fixed-point brackets absorb vertical dead loads.
- NVELOPE® bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads and cladding zone.
General information
Finish | Mill Anodized Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Up to 25 years - consult manufacturer. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 1090-3:2008; Eurocode 9 Pt 1-4. |
Factory finish | Mill. |
Material/ Finish | Aluminium alloy 6005 T6; mill aluminium standard finish. Guidance for specification option: Anodized and powder coating option, consult manufacturer. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.59 kg CO₂ eq/kg |
Recyclability | 6005 aluminium fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
