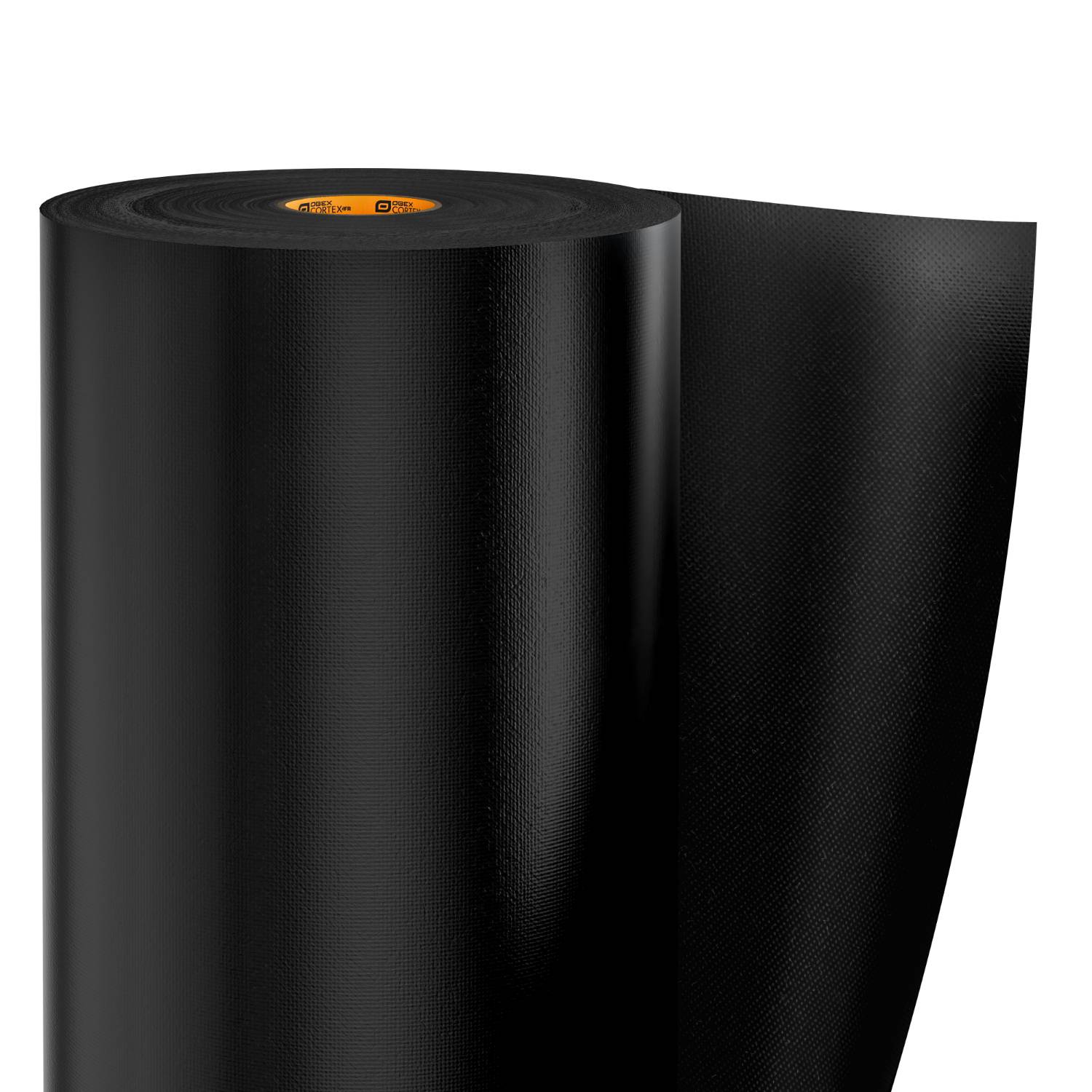

OBEX CORTEX 0400FR One-Piece Modular Roofing Membrane - Flexible Fire Classified Membrane
Verified by manufacturer 3 months ago
ISO 9001 Quality Management
Certificate type
A flexible fire classified membrane used for covering module roofs to protect against water ingress and weathering during the construction, storage, transportation and install stages of the project.
Application
- For covering roofs of modular buildings to protect against water ingress during the construction, storage, transportation, and installation of the module.
- Modular unit roof sealing.
- Temporary building roof sealing.
Description
OBEX CORTEX 0400FR Class B Modular Roofing Membrane is a flexible membrane used for covering module roofs to protect against water ingress and weathering during the construction, storage, transportation and install stages of the project.
The membrane achieves a fire classification of B-s3,d0 according to EN 13501-1 and is highly UV resistant, watertight and airtight.
The 0400FR membrane is very robust and can withstand high levels of foot traffic during the construction and installation of the module.
Features and benefits:
- Class B-s1,d0.
- Flexible membrane.
- Highly UV resistant.
- Watertight.
- Airtight.
General information
Color | Black |
Finish | Textured |
Material | Polyester Guidance for specification option: Chemical characterization, soft PVC coated polyester fabric. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | 0.50 mm |
Uniclass |
Specification data - Polymeric membranes
Material | PVC coated polyester fabric. |
Standard | To EN 13984. |
Performance characteristics | |
Reaction to fire | To EN 13501-1, B-s3,d0. |
Watertightness | To EN 1928, pass - 2 kPa and 60 kPa for 24 hours. |
Tensile properties | To EN 12311-2, 2490 N/50 mm (MD); 2079 2079 N/50 mm (CD). |
Tear resistance | To EN 12310-2, 264 N (MD); 405 N (CD). |
Recycled content | None permitted. |
Width (minimum) | Manufacturer guidanceBespoke. Consult manufacturer and insert requirements. |
Thickness (minimum) | 0.5 mm. |
Colour | Black. |
Accessories | Not required.OBEX CORTEX 0824FR double sided tape.OBEX CORTEX 0823FR UV resistant façade tape. |
Static load resistance | To EN 12370, 20 kg. |
Impact resistance | To EN 12691, 200 mm. |
Elongation at break | To EN 12311-2, 28% (MD); 31% (CD). |
Service temperature | -40°C to +70°C. |
Sustainability data
Material | Polyester Guidance for specification option: Chemical characterization, soft PVC coated polyester fabric. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001 Certificate
Literature
OBEX CORTEX 0400FR One-Piece Modular Roofing Membrane - SDS
OBEX CORTEX 0400FR One-Piece Modular Roofing Membrane - TDS
