Obra Tree Grille
Verified by manufacturer 5 months ago
Obra R
Obra R
ISO 9001 Quality Management
Certificate type

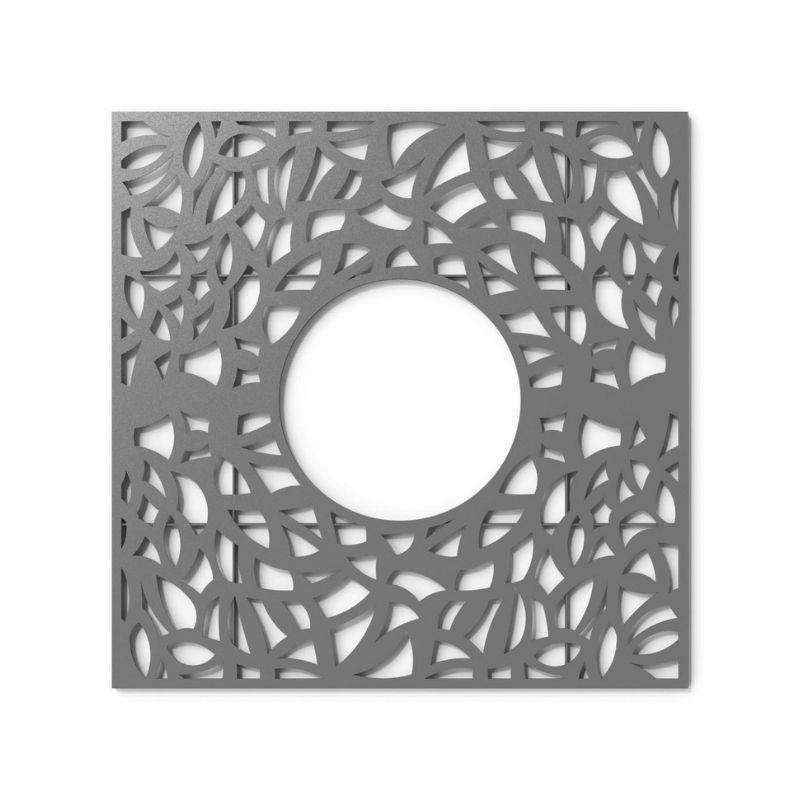

Tree grille with perforated leaf design.
Application

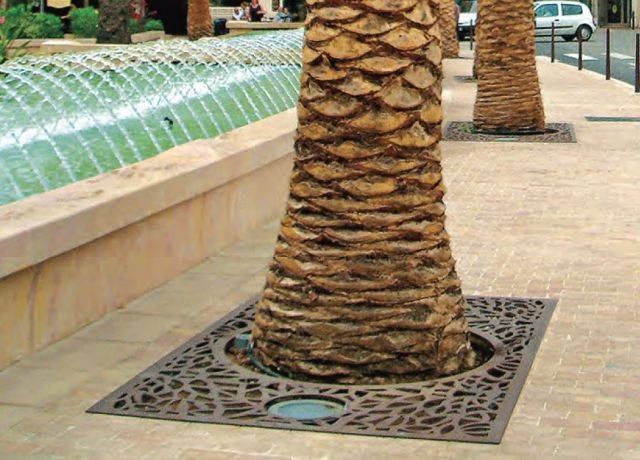

For external installation.
Description
Tree grille with perforated leaf design, from Metalco's Stile collection.
These tree grilles are made up of two halves, reinforced by a surround in steel plate which is designed for screwing together. They are also supplied with an L-profile, steel-frame with brackets for installation into concrete foundations.
Available in circular, square or rectangular designs, and various sizes.
General information
Color | Silver Black Blue Bronze Brown |
Finish | Powder-coated |
Material | Steel Stainless steel |
Shape | Square Rectangle Circle |
Length | 990 mm 1990 mm 2300 mm |
Height | 40 mm |
Uniclass | |
CAWS | Q50/262 Tree grilles Q50/30 Street furniture |
Product range |
Specification data - Tree grilles
Material | Stainless steel.Steel. |
Finish | Corten steel.Powder-coated steel.Guidance for specification option: Consult manufacturer and insert requirements. Stainless steel. |
Colour | Silver. |
Shape | Rectangular. |
Size | 40 x 1500 x 1000 mm.Guidance for specification option: For Obra R only. Opening is 500 mm. 40 x 2300 x 1495 mm.Guidance for specification option: For Obra R only Opening is 800 mm. |
Fixings | Below ground. Guidance for specification option: Into concrete foundations. Freestanding. |
Sustainability data
Country of product manufacture | Italy |
Third party certifications
ISO 9001 Quality Management
ISO 9001: 2015
Literature
Metalco Planters and Tree Grilles
