OmniCare Advance Disabled Refuge Remote Unit
Verified by manufacturer 5 months ago
Powder coated green
Powder coated green
Advanced disabled refuge remote for the OmniCare EVC system. The object includes finish details and main product features.
Application
Suitable for surface or flush mounting.
Description

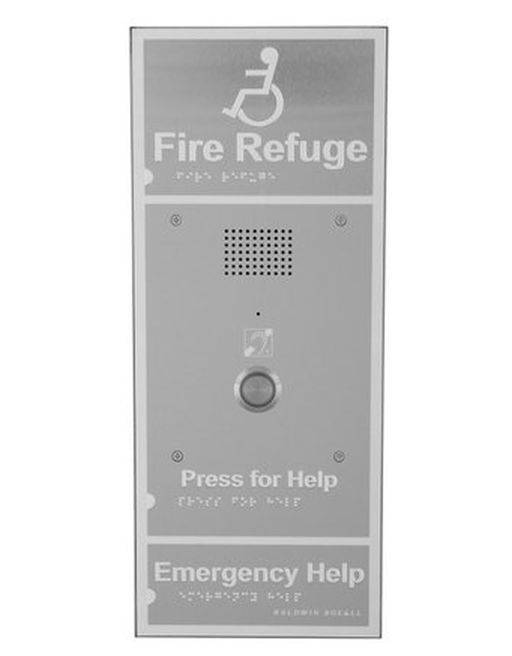

Advanced disabled refuge remote for the OmniCare EVC system. The unit is powered by the line which is a 4-core loop circuit from the control panel. Up to 200m distance is permitted between items on the loop (for longer distances the addition of repeater units (BVOCRIF) will be required.
The Advance unit can be fitted to the same loop circuit along with any combination of remote units included in the OmniCare range.
Features and benefits:
- Large call button with integral illuminated ring.
- Braille and tactile luminescent text and an integral induction loop.
- Fully BS 5839-9 compliant.
General information
Color | Green |
Finish | Powder-coated |
Material | Metal |
Shape | Rectangle |
Width | 178 mm |
Height | 440 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | W53/335 Disabled refuge outstations |
Specification data - Disabled refuge outstations
Standard | In accordance with BS 5839-9. |
Mounting type | Surface-mounted.Flush-mounted. |
Material | Stainless Steel Grade 304. |
Colour | Green. |
Finish: | Powder coated. |
Sheen | 30% gloss. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

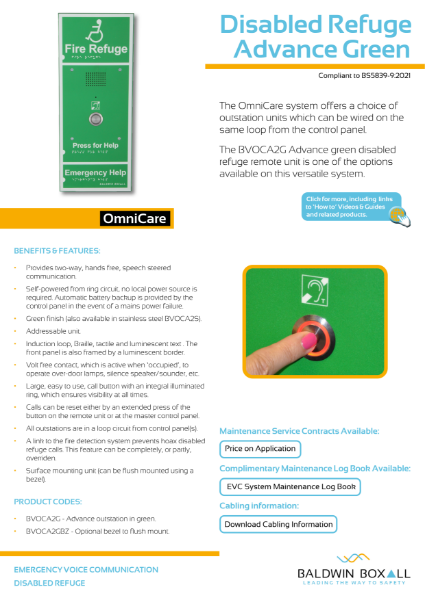

OmniCare advanced refuge remote - green
