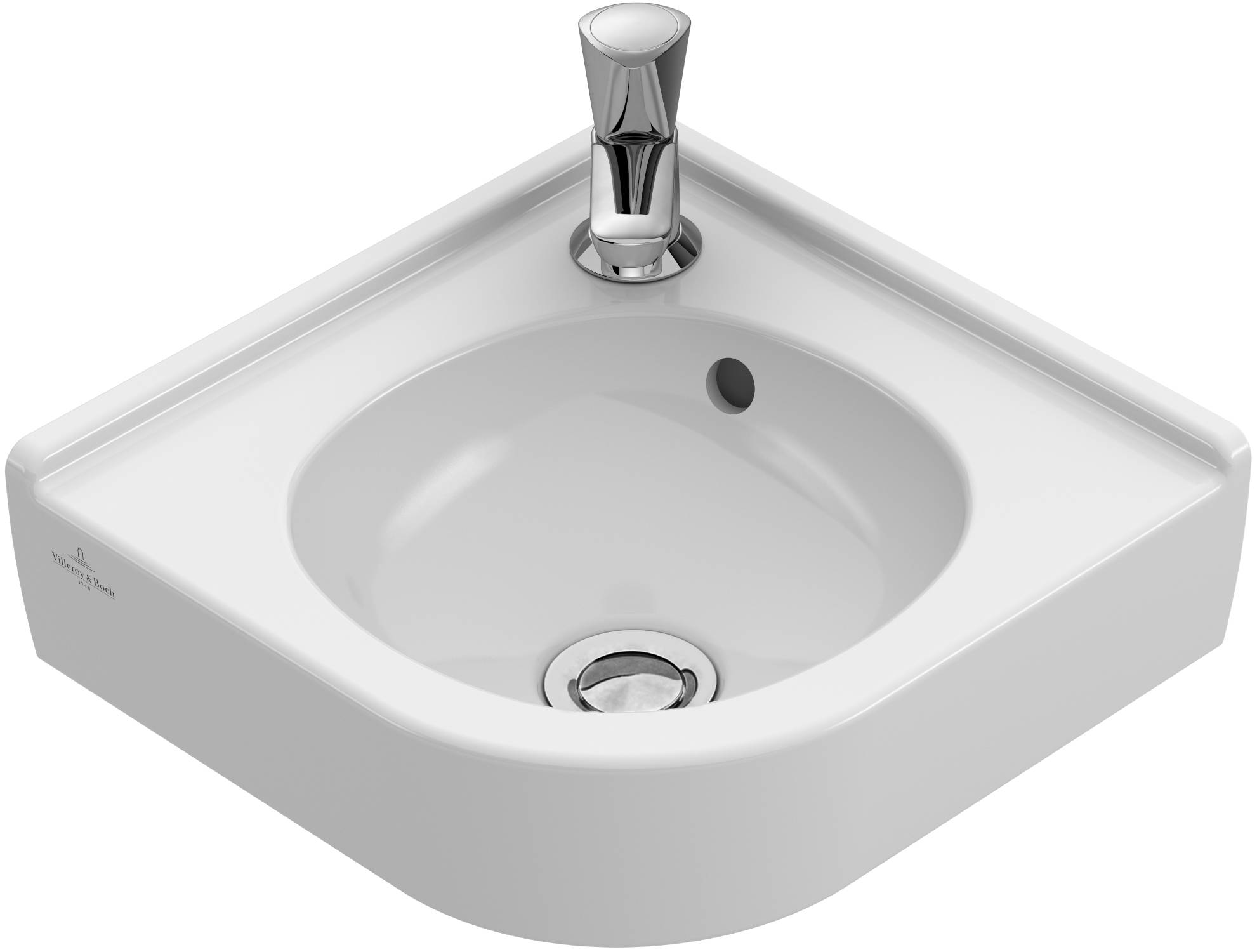

O.novo Corner Handwashbasin 731033
Verified by manufacturer 8 months ago
73103301
73103301
Rectangular, corner handwash basin.
Description
Rectangular, corner handwash basin.
Features and benefits:
- Sanitary ceramics.
- Complies to EN 31 and EN 14688.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Rectangle |
Width | 320 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 31 and EN 14688. |
Form | Wall-hung corner wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 320 x 320 mm.Guidance for specification option: Side length, width; depth. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 1-hole tap fittings, tap hole punched out. |
Overflow | None. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 6.9 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 1 |
 3Ds Max | - | 1 |
 SketchUp | - | 1 |
