O.novo Washbasins 4A416F
Verified by manufacturer 8 months ago
4A416F01
4A416F01

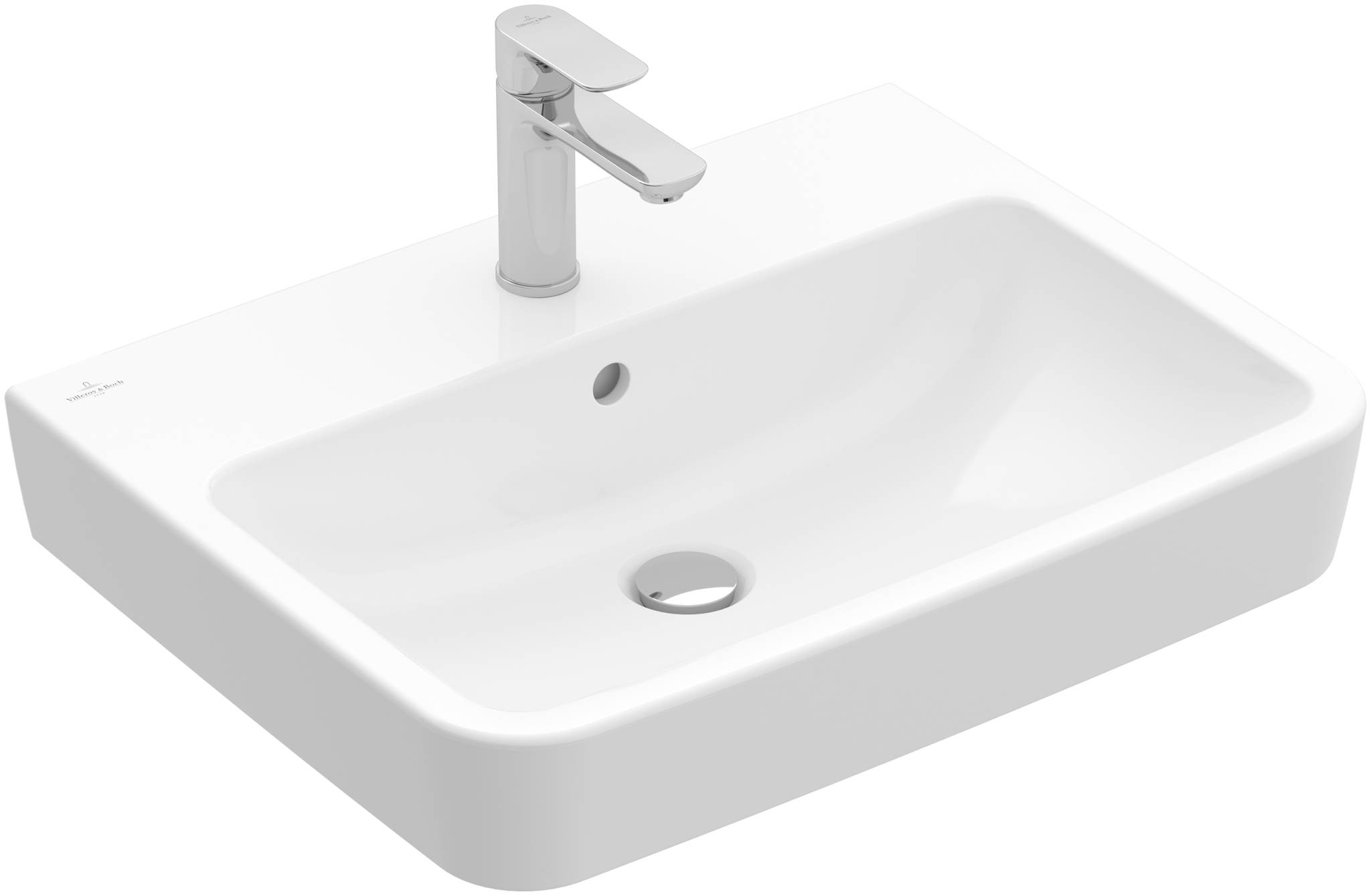

Angular washbasin.
Description
Angular washbasin.
Features and benefits:
- Ground underside and rear.
- Sanitary ceramics.
- Central basin.
- Installation instructions and template included.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Other Guidance for specification option: Angular. |
Width | 600 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Form | Wall-hung wash basin. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 600 x 460 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | None.Guidance for specification option: Please note: unclosable outlet valve must be used with models without overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Closable valve 6806 00, Unclosable outlet valve 6808 00, Unclosable outlet valve 6809 00, Closable valve 6810 00; Unclosable outlet valve 8798 90. |
Weight | 18.9 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 Revit | - | 1 |
