O.novo Washbasins 516061

Verified by manufacturer 8 months ago

51606001

Villeroy & Boch AG Variant:

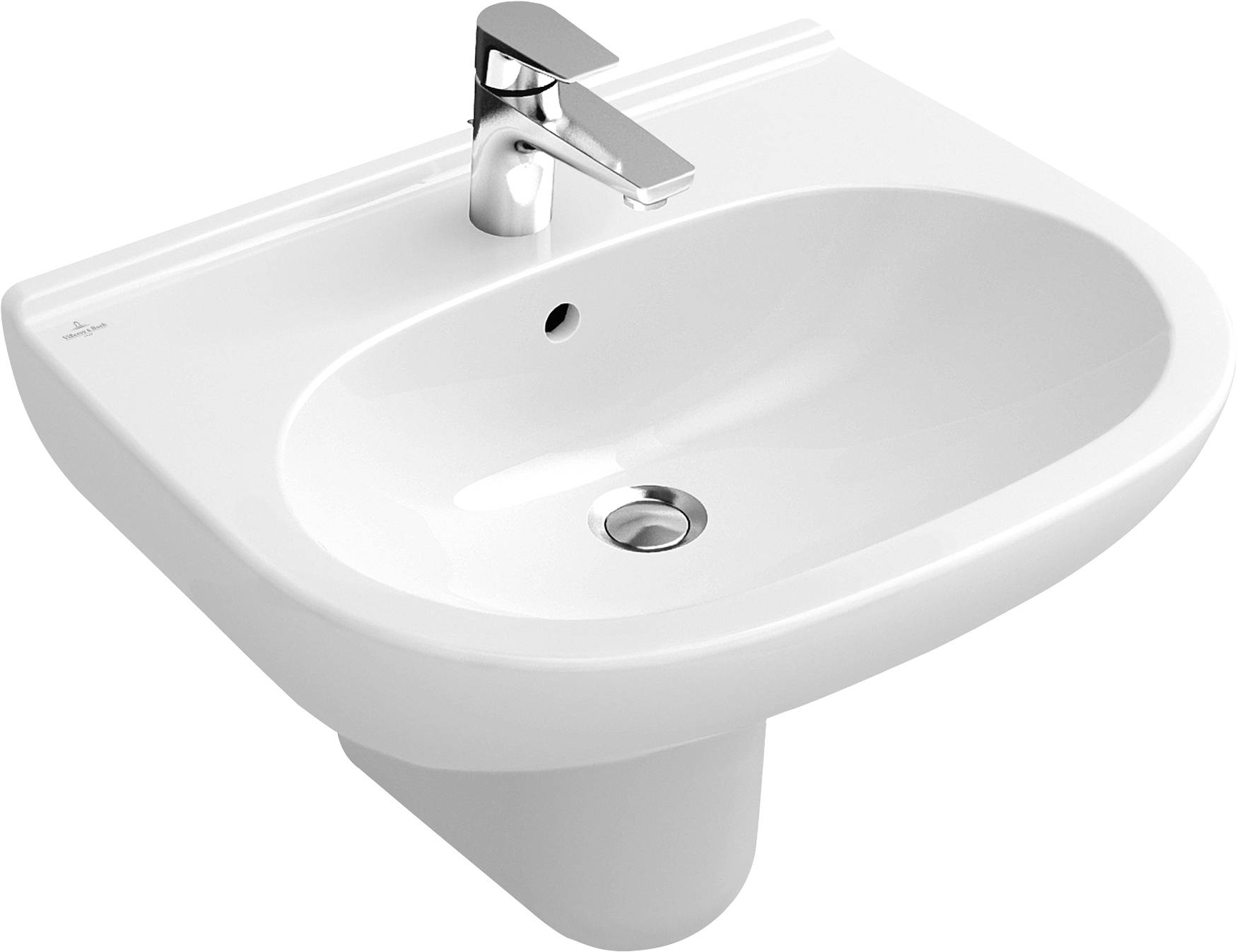

Oval washbasin.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Description

Oval washbasin manufactured in accordance with EN 14688 and EN 31.


Features and benefits:

  • Sanitary ceramics.
  • Complies with EN 31 and EN 14688.

General information

Color

White

Finish

Gloss

Material

Ceramic

Shape

Oval

Length

600 mm

Width

490 mm

Uniclass

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Wall-hung washbasins

Standard

To EN 14688 and EN 31.

Form

Wall-hung wash basin.

Connecting dimensions

To BS EN 31.

Materials

-

Body

Ceramic.

Finish and colour

White alpin, gloss.

Size

600 x 490 mm.

Water supply, overflow and waste holes

-

Water supply

Single tap hole, centred.

Guidance for specification option:

Suitable for 3-hole tap fittings, central tap hole punched out.

Overflow

None.

Waste

Bottom waste outlet. No chainstay hole.

Weight

18 kg.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

ARCHICAD
-

1

OBJ
-

1

SketchUp
-

1

3Ds Max
-

1
