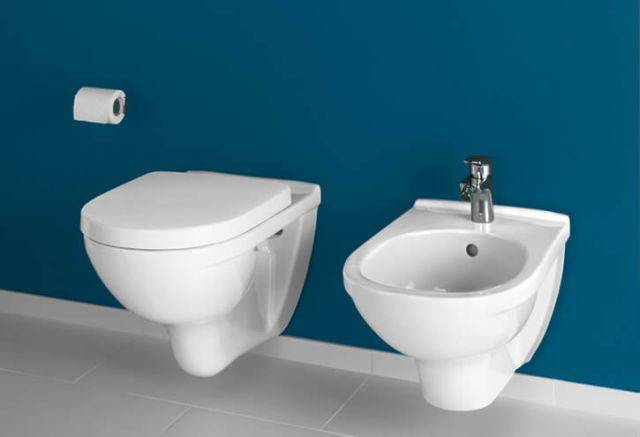

O.Novo WC Complete 5688 H1
Verified by manufacturer 9 months ago
Combi-Pack Oval.
Description
Oval WC combi-pack manufactured in accordance with EN 997.
Features and benefits:
- Manufactured from sanitary ceramics.
- Flush volume: 3/ 4.5 L.
- Horizontal outlet.
- Wall mounted.
- The pack includes a washdown WC 5660, WC-seat with quick release and soft closing hinges 9M38 S1 01.
- LEED: 4.
General information
Color | White |
Material | Ceramic |
Shape | Oval |
Length | 490 mm |
Width | 360 mm |
Height | 330 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Product range |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997, Class 2. |
Pans | To BS EN 997, Class 2. |
Form | 5660H1, wall mounted.5660HR, DirectFlush, wall mounted. |
Materials | |
Body | Ceramic. |
Finish and colour | White Alpin.White Alpin CeramicPlus. |
Sizes | |
Cistern capacity | 3/ 4.5 L. |
Pan height | 330 mm. |
Weight | 18 kg. |
Sustainability data
Material | Ceramic |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
 ARCHICAD | - | 1 |
