Operating theatre sliding door

Name: Operating theatre sliding door
Brand: Dortek Ltd
SKU: 6PxdP9UxF32wnXtRNhDwtC

Verified by manufacturer 2 months ago

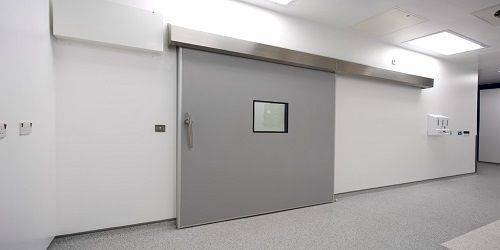

Hermetically sealing sliding operating theatre door.

Jump to:

Application

Suitable for the following applications:

A range of hermetically sealing sliding operating theatre doors specifically designed for hospitals and healthcare environments.

Features and benefits:

Dortek hermetic doors are specialist hygienic doors of high quality and robust construction which are designed to deliver safety, reliability and efficiency in environments where infection control is critical.
The door has a unique patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
Controls air leakage.
Lower air handling costs.
Reduces cross contamination.
Smooth hygienic surface.
Safe reliable, low maintenance.
No floor track required.
Good sound reduction creates quiet working environment.

Color	Blue White Yellow Cream Green Grey Orange Other Turquoise Red Show more
Material	High pressure laminate (HPL) Guidance for specification option: Faced both sides with 1 mm hard plastic laminate.
Shape	Rectangle
Warranty description	One year

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors

Product range	Doors / Sliding Doors

Track system	Anodized aluminium rail system with nylon bearings.
Door leaves	-
Construction	Hard plastic laminate over PU core. Guidance for specification option: 60 mm thick with a 1 mm-thick hard plastic laminate facing on 5 mm-thick board/ 6 mm-thick hard plastic laminate and a 48 mm-thick polyurethane core. Framed in anodized aluminium profiles.
Finish and colour	F2255 Polar White. F2296 Sno White. F7927 Folkestone. F1998 Oslo. F7880 Thistle F5127 Monaco. F2828 Tropical Blue. F7851 Spectrum Blue. F2833 Sandstone. F2731 Sand Maple. F2887 Savoy Beech. F2510 Golden Morning Oak. Other. Guidance for specification option: Other finishes may be available upon request.
Operation	Automated with two infra-red detectors. Automated with two push buttons. Automated with two touchless sensors. Manual. Guidance for specification option: Non self-closing. Manufacturer guidance Automated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Interlocking systems available. Other methods of actuation available - contact manufacturer.
Hardware	Stainless steel D handle and flush grip. Stainless steel lever handle both sides.

Battery back-up	Not required. Required.
Door frame	Anodized aluminium corner profile. Stainless steel.
Vision panels	300 x 600 mm. Guidance for specification option: Double glazed. 400 x 400 mm. Guidance for specification option: Double glazed. 600 x 600 mm. Guidance for specification option: Double glazed.
Canopy	Aluminium with sloping top. Stainless steel with sloping top. Steel, polyester powder coated white with sloping top.
Guides	Internal bottom track with nylon guide.
Door width	1000–1100 mm. 1200–1600 mm. 1700–2000 mm. Bespoke. Guidance for specification option: Special sizes available upon request, consult manufacturer. Manufacturer guidance Standard door blade widths.
Height	2100 mm. 2400 mm. Manufacturer guidance Standard door blade heights.
