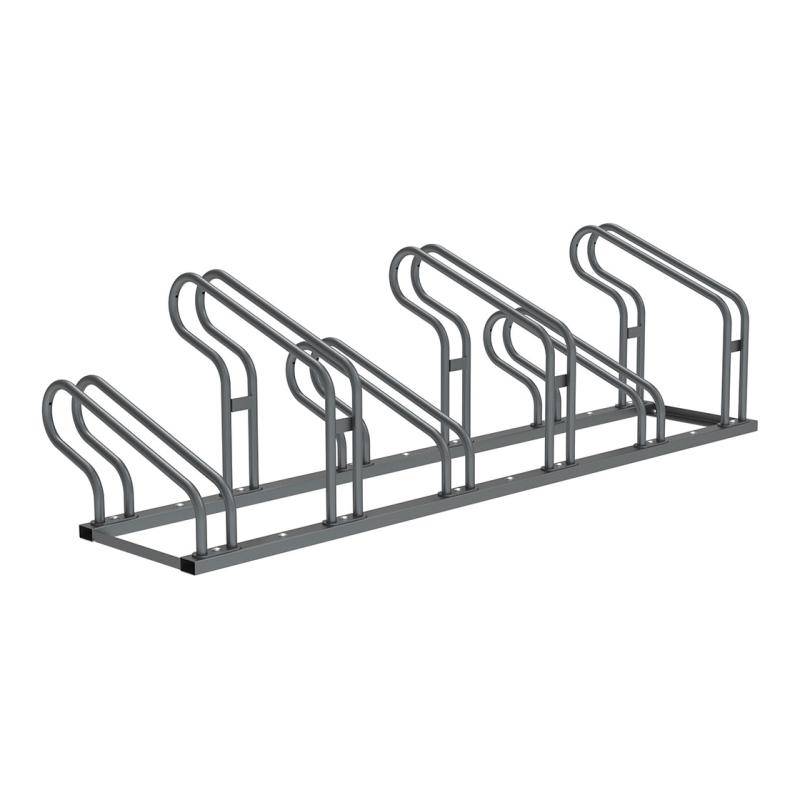

Optimum Bicycle Rack
Verified by manufacturer 9 months ago
Steel tube bike rack with optional security bars
Application
Suitable for installing in public places such as train stations, large offices and universities.
Description

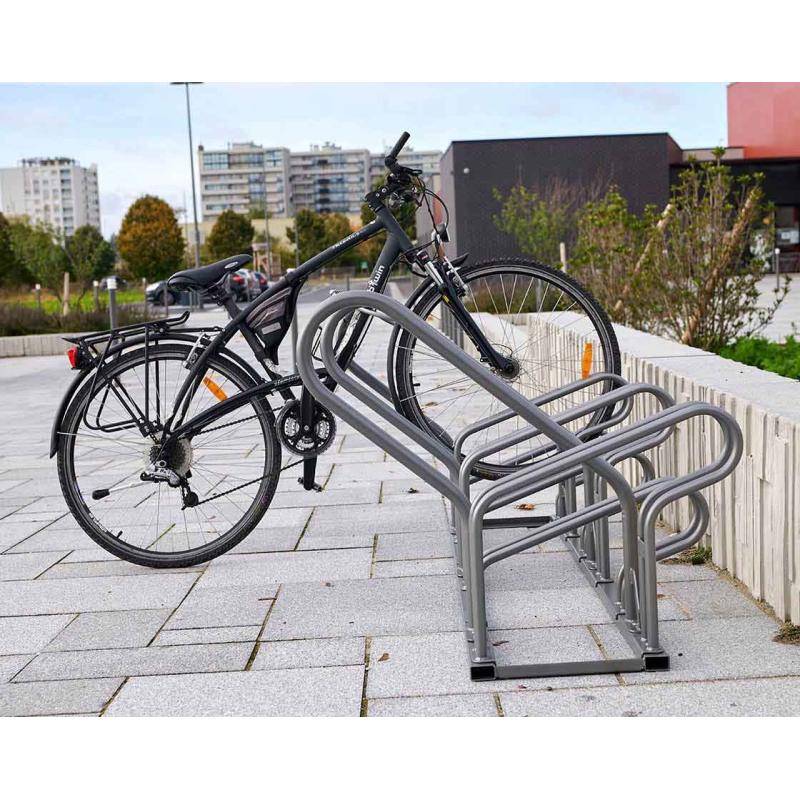

A bike rack that holds wheels perfectly in place for total stability. The security bars allow users to easily lock wheels and frames together for maximum security.
Features and benefits:
- Available in two finishes.
- Model has 6 spaces for bicycles.
- Height above ground: 527 mm.
- Width: 572 mm.
- Structure steel tube 50 x 30 mm in 2 mm gauge and Ø 22 mm tube in 1.2 mm gauge.
- Rack at two different heights.
- Wheel perfectly held
- Installation can be free-standing or anchored to the ground through Ø 12 mm holes (bolts not included).
- Additional options of a secondary security bar for maximum safety.
- Available flat pack for cost effective shipping, or fully assembled.
- Galvanised Optimum bicycle rack - Bicycle racks - Bicycle and motorbike solutions - Procity UK
- Security bars Secondary security bar - galva - Procity UK
General information
Color | Red Blue Green Brown Silver |
Finish | Galvanized Painted |
Material | Steel |
Shape | Other |
Length | 1900 mm |
Width | 910 mm |
Height | 795 mm |
Uniclass | |
CAWS | Q50/32 Cycle stands Q50/210 Cycle stands |
Specification data - Stainless steel cycle stands
Stand type | Cycle. |
Number of stands | Six. |
Base | Anchored base. |
Finish as delivered | Galvanized.Galvanized and painted.Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Accessories | 35 mm secondary security bar. None. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel is 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
