P-FLEX Bollard

Verified by manufacturer 2 months ago

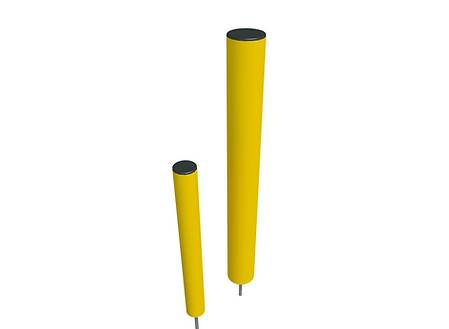

P-FLEX Bollard 170 mm

Polybar Group Variant:

High-performance synthetic polymer protection bollard that features P-FLEX technology, designed for the protection of equipment, walls, doors and corners.

Jump to:
+353892546217 Website

Application

Suitable for a variety of applications including equipment, buildings and racking.

Description

The P-FLEX Bollard is a superior high-performance impact protection system designed to deflect upon impact providing safe protection and superior durability for a range of applications from door protection to signposting on pedestrian walkways.


Features and benefits:

  • P-FLEX Technology - a revolutionary high-performance flexible synthetic polymer designed to deflect and safely absorb impacts.
  • Available in two diameters and various heights.
  • Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
  • Bespoke branding capability.
  • Single 'hidden' steel threaded rod anchoring system.
  • Hygienic and easy to clean and maintain
  • Zero exposed steel or risk of exposed corrosion.
  • High resistance against acids, alkali, and solvents.
  • Typically 40% recycled polymer content.
  • 100% recyclable at end-of-life.
  • Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
  • Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.

General information

Color

Yellow

Black

Other

Finish

Smooth

Material

Polymer

Steel

Shape

Circle

Length

Bespoke

Width

110 mm

170 mm

Height

1000 mm

1200 mm

1500 mm

2000 mm

2500 mm

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

High-performance flexible synthetic polymer.

Steel reinforcement

Required.

Guidance for specification option:

Robust steel rod anchoring system.

Dimensions

-

Size and profile

Ø170 mm.

Height

1000 mm.

1500 mm.

2000 mm.

2500 mm.

Length below ground

150 mm.

Top profile

Flat.

Base

Flat.

Finishes

-

Colour

Black, RAL 9004.

Yellow, RAL 1021.

Other.

Guidance for specification option:

Other colours are available subject to minimum order size.

Consult manufacturer for details and insert requirements.

Cast finish

Smooth.

Impact resistance

26 900 joules.

Guidance for specification option:

6.97 tonne forklift travelling 10 km/h.

Manufacturer guidance

Dynamic Impact Test.

Tested Impact Energy @ 90°.

Density

0.95 g/cm³.

YieldStress

28 N/mm².

Manufacturer guidance

Yield stress to DIN EN ISO 527.

Elongation at break

300%.

Tensile Modulus

850 MPa.

Manufacturer guidance

Tensile E modulus to DIN EN ISO 527.

Shore Hardness - D

66 N/mm².

Thermal conductivity (maximum)

0.38 W/m.K.

Application temperature range

-100 to +80℃.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Polymer

Steel

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Typically 40% recycled polymer content.

Expected Life

40 year

Literature

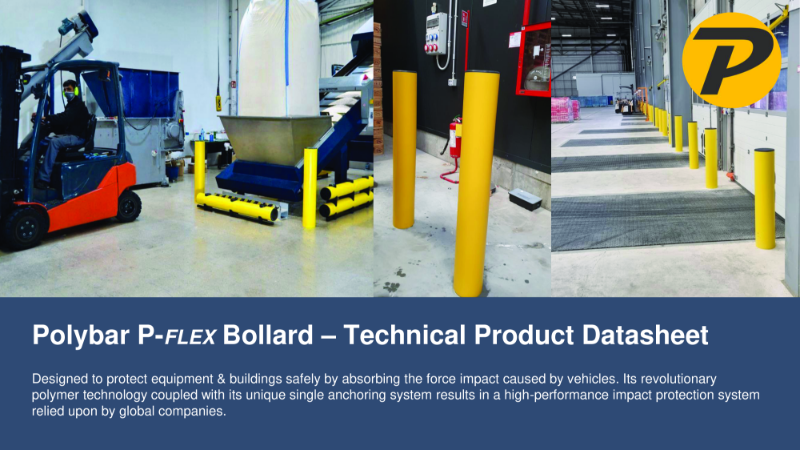

Polybar P-FLEX Bollard Technical Data Sheet

Polybar P-FLEX Bollard Technical Data Sheet
