Padstones - Concrete Padstone

Verified by manufacturer 26 days ago

Naylor Concrete Products Ltd

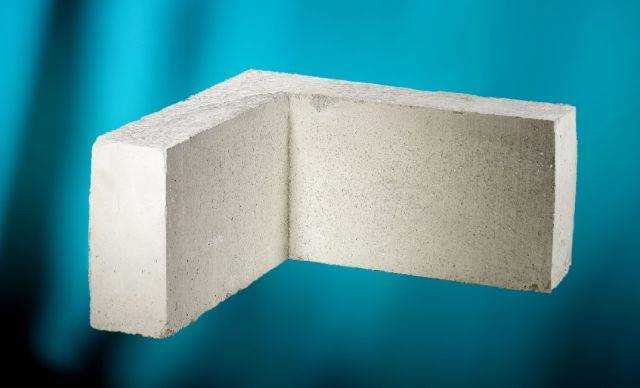

Concrete padstones available in standard stock sizes or L-shaped.

Jump to:
01226 320810 Website

Application

Suitable for forming a base or pad for a steel beam or lintel.

Description

A full range of padstones are available with a minimum strength of 50 N/mm² and are suitable to take special fixings or any other site situations.


Features and benefits:

  • A large range of 19 sections is available as standard stock items with an additional two L-shaped padstones.

General information

Color

Grey

Finish

Textured

Material

Concrete

Shape

Rectangle

Length

215 mm

330 mm

440 mm

660 mm

Width

140 mm

100 mm

215 mm

Height

100 mm

215 mm

Warranty description

50 year

Guidance for specification option:

Design life.

Uniclass

Pr_20_85_85_60 PadstonesPrimary

CAWS

F31/150 Concealed precast

Product range

Lintels / Padstones

Specification data - Padstones

Sizes

100 x 140 x 100 mm.

215 x 140 x 100 mm.

330 x 140 x 100 mm.

440 x 140 x 100 mm.

140 x 140 x 140 mm.

Show more

Sustainability data

Material

Concrete
