Application

Suitable for individual use, or with the accompanying table to form an outdoor picnic or dining suite.

Description

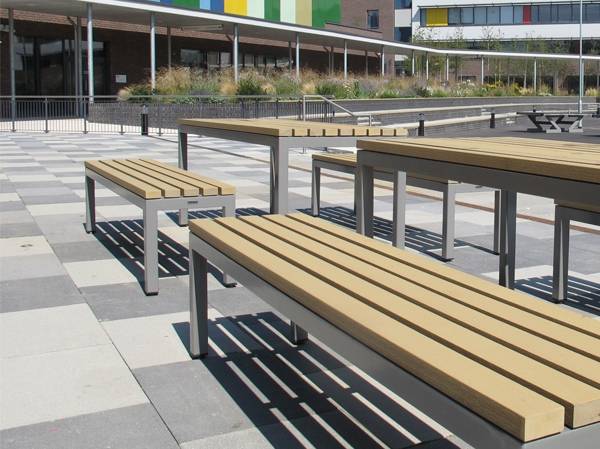

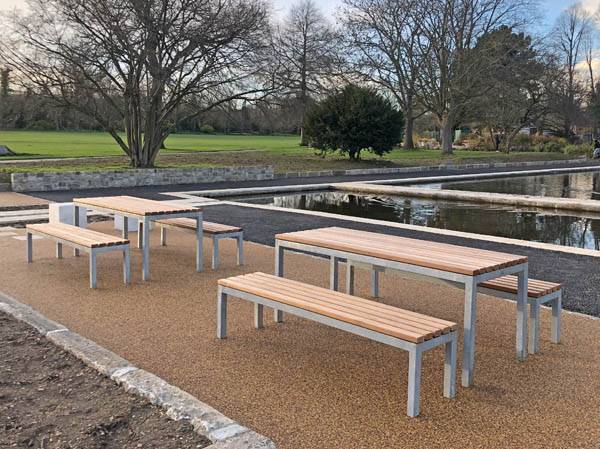

Parallel benches can be used individually or with the accompanying table to form an outdoor picnic or dining suite. The combination of a steel frame and closely-spaced slats make the benches sufficiently heavy to be used as freestanding units on secure sites, and are also offered as bolt-down and in-ground options for more public areas.


Features and benefits:

  • Bench-top slats are in iroko hardwood as standard, with selected models also available in wood plastic composite (WPC) material.
  • Two standard lengths are offered, to comfortably accommodate either three or four people.

General information

Color

Grey

Brown

Other

Guidance for specification option:

Polyester powder coated frame to any RAL colour.

Finish

Smooth

Powder-coated

Galvanized

Material

Timber

Steel

Shape

Rectangle

Size

-

Manufacturer guidance

L x W.

Length

1800 mm

Width

400 mm

Height

465 mm

Warranty description

One year

Uniclass

Pr_40_30_29_84 Street and site benchesPrimary

CAWS

Q50/220 Benches

Q50/30 Street furniture

Product range

Seating

Specification data - Street and site benches

Length

2.4 m.

Base

Freestanding.

Guidance for specification option:

Standard; height above ground: 465 mm.

Root fixed.

Guidance for specification option:

Height above ground: 450 mm.

Bolt down.

Guidance for specification option:

Height above ground: 455 mm.

Manufacturer guidance

  • All fixing types use a bolt/ stud that screws into the insert fitted into the leg, allowing height adjustment of up to 20 mm.
  • On sloping sites, each leg can be adjusted independently so that top surfaces can be levelled.

Material

Standard: Iroko hardwood timber slats and steel frame.

Finish as delivered

Standard: Smooth planed slats and galvanized frame.

Colours

RAL.

Guidance for specification option:

Polyester powder coated to any RAL colour.

Slats

Iroko timber, smooth planed finish.

Iroko timber, UV protective finish.

Wood plastic composite (WPC).

Guidance for specification option:

PPB 6 only.

Frame

Steel, galvanized finish.

Guidance for specification option:

Standard.

Steel, polyester powder coated finish, RAL.

Guidance for specification option:

Finished to any RAL colour; insert requirements.

Form

Four-person bench.

Width

400 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
