PAS68 Terra Sliding Cantilevered Gate - Anti-Terrorist HVM Sliding Gate

Verified by manufacturer 3 months ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

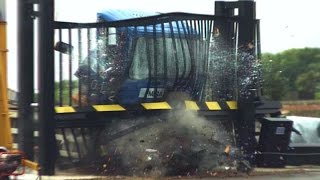

The Terra Sliding Cantilevered Gate is a sliding gate impact tested to the British PAS 68 Specification, stopping a 7.5-tonne vehicle travelling at 50 mph. PAS 68 Classification Code: V/7500[N3]/80/90

Jump to:
BOS
+44 (0)1293 548301 Website

Application

Suitable for high-security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

Description

The Terra Sliding Cantilevered Gate is a sliding gate impact tested to the British PAS 68 Specification, stopping a 7.5-tonne vehicle travelling at 50 mph. PAS 68 Classification Code: V/7500[N3]/80/90:1.5/0.0.


Comprising a gate leaf, heavy-duty crash impact beam and posts. Successfully PAS 68 impact tested with 7.5 t at 50 mph. It is a cantilevered gate, meaning no track is required in the roadway. The HVM (hostile vehicle mitigation) gate has been proven to stop vehicles, providing HVM, counter-terrorist, impact-resistant barriers preventing vehicle as a weapon attack. Operational speed is dependent on model and length; contact the manufacturer for details.


Features and benefits:

  • All made to order.
  • Secured by Design and a PSSA verified product.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.
  • Can secure entrances 8 m plus, provides counter-terrorist protection for wider entrances.
  • Minimal site penetration, shallow foundation and embedment depths.
  • Enclosed runback track allows the gate to be fully projected across the road without tipping.
  • Manual operation under power fail conditions.
  • Ease of use and installation.

General information

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Guidance for specification option:

Low carbon steel.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_59_79 Sliding vehicular barriersPrimary

CAWS

Q40/45 Gates

Q40/570 Gates

Specification data - Sliding vehicular barriers

Format

Cantilevered, sliding.

Method of operation

Manual or Automatic.

Barrier dimension

-

Height

2400 mm.

Manufacturer guidance

Insert requirement. 2400 mm (as standard) up to 3000 mm.


Span

-

Manufacturer guidance

Insert requirement. 6000 mm (maximum).


Barriers

-

Type

Bar and Weldmesh infill.

Sheet.

Material

Carbon steel.

Finish as delivered

-

Worked finish

Shot blasted.

Applied finish

Polyurethane painted.

Guidance for specification option:

Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrially polluted inland sites to BS 5493.

Colour

-

Manufacturer guidance

Insert RAL requirement.

Accessories

None.

100 mm diameter red/ green LED traffic light head with monitored safety circuit.

Control pedestal – dual height.

Control pedestal – HGV height.

Control pedestal – standard height.

High security cabinet.

Manual override in case of power failure.

Signage.

UPS (uninterrupted power supply).

Guidance for specification option:

Allows a number of operations in power failure mode.

Safety

Audible alarms.

Flashing beacons.

Induction loop/ Vehicle detector loop system.

Lasers.

Light curtain.

Show more

Access control

ANPR – Automatic number plate recognition.

Audio intercom.

Card reader.

Digital keypad.

GSM intercom.

Show more

Top protection

55 mm serrated edge

Anti-climb rotating strip

Anti-climb serrated edges

Barbed tape

Barbed wire

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC

IFC2X3

1
