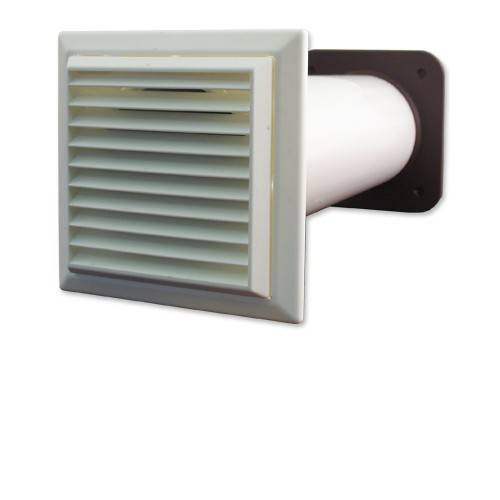

Passive Vapour Vent MK2

Verified by manufacturer 10 months ago

Extendable Type

Sovereign Chemicals Ltd Variant:

Passive dehumidifier to increase room ventilation, helps prevent black mould.

Jump to:
+44 (0)1229 870800 Website

Application

For increasing room ventilation. Suitable for most wall thicknesses.

Description

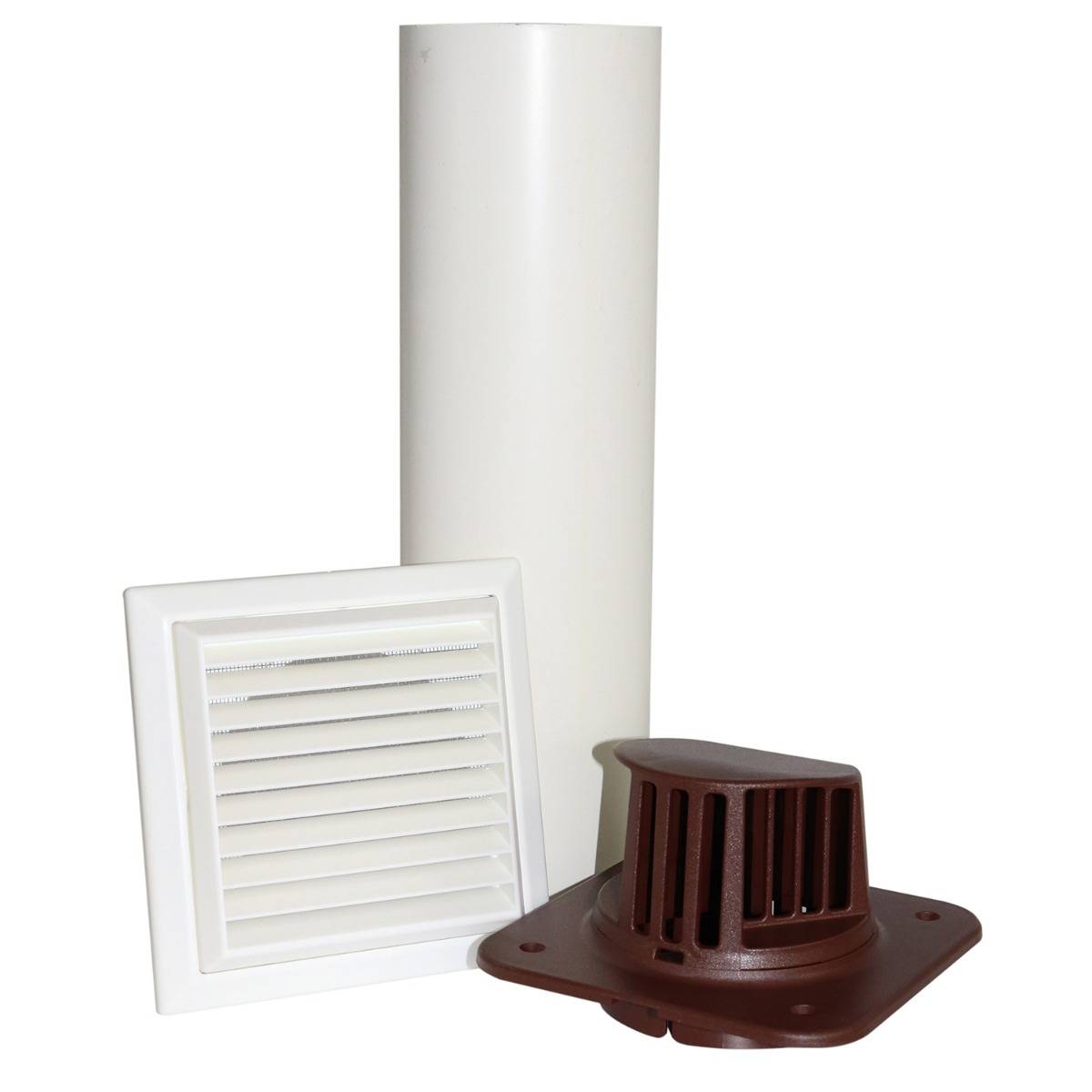

The Passive Vapour Vent MK2 contains a permeable membrane within the main plastic circular tube. This encourages moisture migration due the differences between external and internal temperature and air pressure. The membrane acts as a molecular sieve, allowing water vapour to pass to the outside whilst resisting rapid air movement and therefore heat loss. The vent is also fitted with a specially designed cowl which counteracts the detrimental effects of external wind on performance.


Features and benefits:

  • No moving parts.
  • Works passively 24 hours a day (a passive dehumidifier).
  • Quiet operation (generates no noise).
  • Low installation cost.
  • Available in standard, extendable or high rise version.
  • Reduces draughty air flow and heat loss.
  • Works at peak condensation times.
  • No night time disturbances from compressors or fans.

General information

Color

White

Uniclass

Pr_70_65_04_28 External wall grillesPrimary

CAWS

U90/340 Through wall ventilator ducts

U90/340 Through wall ventilator ducts

Specification data - External wall grilles

Size

102 mm diameter.

Tube diameter

102 mm.

152 mm.

Tube length

350–600 mm.

Guidance for specification option:

Extendable only.

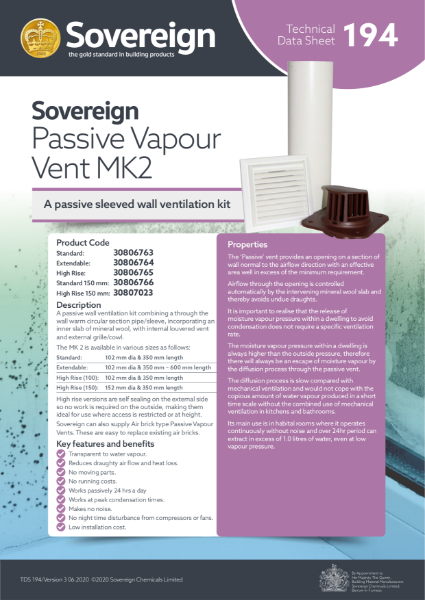

Literature
