PE740 Deaerator
Verified by manufacturer 22 days ago

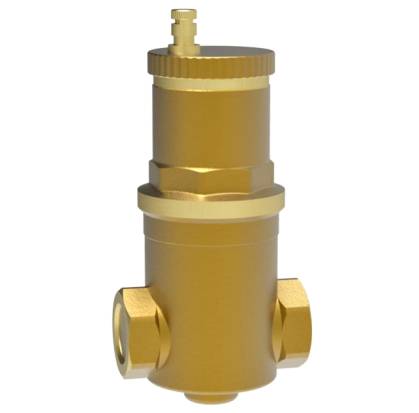

PE740.08 - 1" Female BSP High Capacity Deaerator
PE740.08 - 1" Female BSP High Capacity Deaerator
Deaerators are used for the continuous elimination of the air contained in the hydraulic circuits of the air-conditioning systems.
Application
The deaerator may be used on heating and cooling circuits to ensure progressive elimination of air. Installation is particularly recommended after the boiler, on the pump intake side, where microscopic bubbles are most likely to form.
Description
The PE740 deaerators are used for the continuous elimination of the air contained in the hydraulic circuits of the air-conditioning systems. Thanks to their characteristics they are able to automatically eliminate all the air present in the plant down to the level of micro-bubbles. The PE740 deaerators guarantee optimal system operation without noise, corrosion, overheating or mechanical damage.
Features and benefits:
- All threads are conform to ISO 228.
- Guarantees optimal system operation without noise, corrosion, overheating or mechanical damage.
- Automatically eliminate all the air present in the plant.
General information
Color | Gold |
Material | Brass Stainless steel Polymer EPDM |
Shape | Other |
Width | 82 mm 90 mm |
Height | 173.5 mm 210.5 mm |
Uniclass | |
CAWS | S90/620 Valves generally T90/425 Valves generally |
Specification data - Pressure differential deaerators
Arrangement | Upright installation.Guidance for specification option: The deaerator should only be installed in an upright position, preferably:
|
Material | Brass CB753S/ CW617N.Guidance for specification option:
|
Connections | Threaded.Manufacturer guidanceAll threads are conform to ISO 228. |
Connection sizes | 1" female. |
Height | 173.5 mm. |
Width | 82 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Material | Brass Stainless steel Polymer EPDM |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
