Pendock Ducting - FDT Floor Screed Ducting - Floor Ducting

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

In screed floor duct profiles for heating and water pipes with a screed.

Jump to:
+44 (0)1952 580 590 Website

Application

For fixing to the surface of the subfloor before screeding.

Description

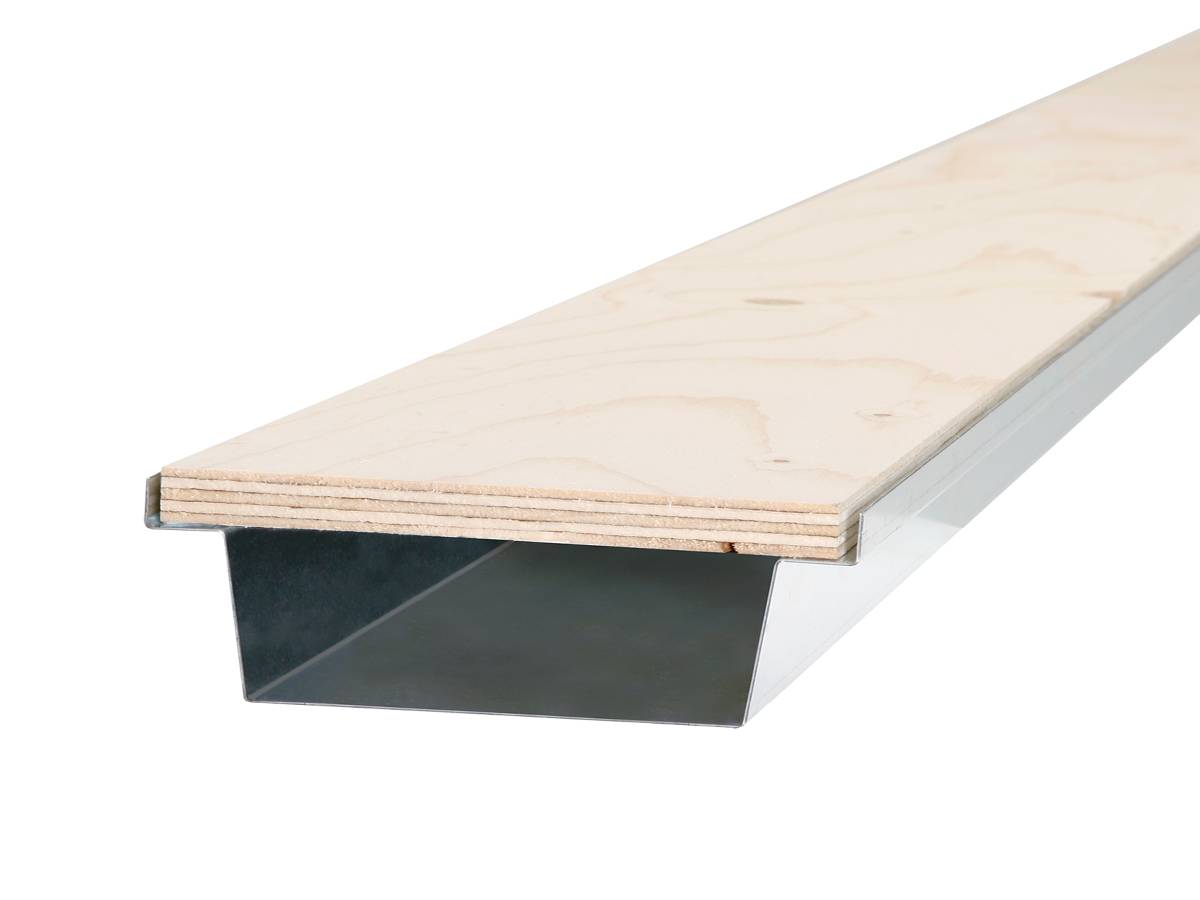

This range of floor ducting profiles consists of preformed tray sections made from 22 gauge hot-dipped galvanized steel and is designed for fixing to the surface of the subfloor before screeding. Return flanges give recessed support to pre-cut 12 mm-thick plywood covers, laid flush with the rest of the finished floor.


Features and benefits:

  • The manufacturing process utilized by Pendock enables almost any size of floor ducting to be supplied.
  • A complete range of accessories is available on standard and non-standard products, including butt joint plates, corner sections, T-junctions and stop-ends.
  • It is permissible to lay continuous floor finishes, including tiling and carpeting, over the duct cover board, provided that building plans identify the location of the duct.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Plywood

Shape

Trapezoid

Length

2500 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_65_70_11_31 Floor-mounted cable trunking and ductingPrimary

CAWS

P31/300 Floor ducting/ trunking

Specification data - Floor-mounted cable trunking and ducting

Width

100 mm.

150 mm.

200 mm.

Depth

50 mm.

70 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Galvanized steel can be recycled easily with other steel scrap in the electric arc furnace (EAF) steel production process. Zinc volatilises early in the process and is collected in the EAF dust that is then recycled in specialist facilities and often returns to refined zinc production.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

Floor Ducting

Floor Ducting

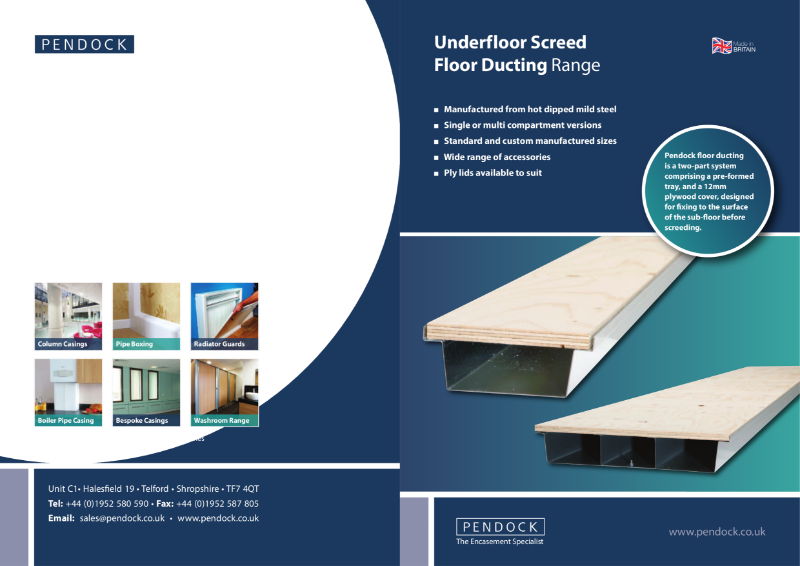

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure
