Pendock Linea - Building Linings - Parapet Cappings

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Parapet Wall Capping

Jump to:
+44 (0)1952 580 590 Website

Application

Decorative weatherproof exterior parapet wall capping.

Description

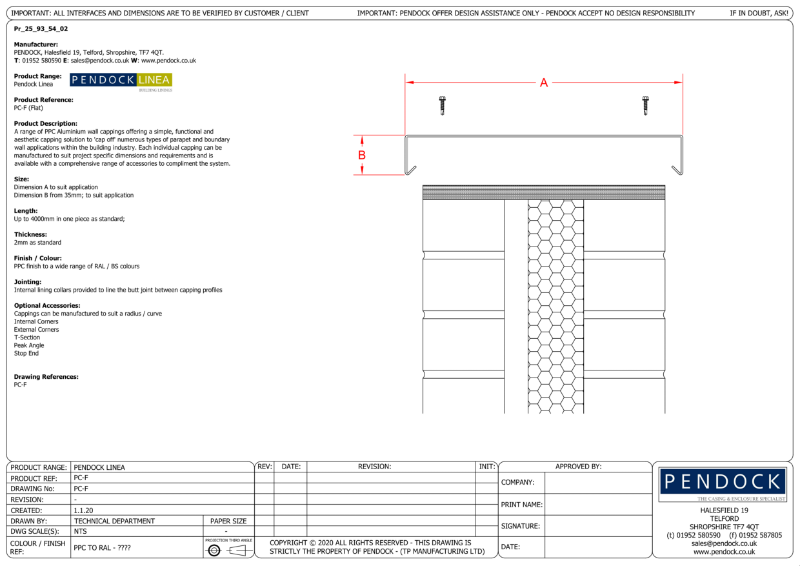

Manufactured from high quality sheet aluminium with a PPC finish, the parapet and wall capping product range incorporates flat; pitched and sloping cappings, which can be face-fixed or use concealed fixings.


All parapet cappings are manufactured to the specifications and dimensions of each individual project to ensure tolerances are maintained, installation is straightforward and the finished result is to a high standard.


A wide range of capping styles, designs and forms are available within the Pendock Linea system, which provides excellent versatility, specification choice and cost effectiveness.

General information

Color

Other

Guidance for specification option:

Polyester powder coated to any RAL colour

Finish

Powder-coated

Material

Aluminium

Shape

Other

Guidance for specification option:

Three sided capping with return drip details

Length

Bespoke

Guidance for specification option:

Up to 4 m in a single length.

Width

Bespoke

Height

Bespoke

Guidance for specification option:

Minimum 35 mm legs.

Warranty description

25 year

40 year

Manufacturer guidance

Life expectancy of aluminium: 40 years (rural / suburban areas); up to 25 years (industrial / marine areas).

Uniclass

Pr_25_93_54_02 Aluminium capping unitsPrimary

CAWS

F30/780 Coping system

Specification data - Aluminium capping units

Material

Aluminium.

Finish

Polyester powder coated.

Material thickness (minimum)

2 mm.

Bespoke.

Dimensions

Guidance for specification option:

Consult manufacturer and insert requirements.

Fixings

Suitable fixing type for substrate - Timber or TEK fixing with ePDM washer.

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Recycle, re-purpose & re-use
Another key material that we use widely in the manufacture of several of our products is aluminium. Its corrosion-resistant properties, comparatively low weight, when compared to other metals used in construction, and its ability to be specified with a range of finishes make it a popular solution.

Coupled to this, is the fact that it is one of the world’s most recycled and recyclable materials. To underline this capability, it has been calculated that around 75% of all aluminium produced since the late 1800s is still in use today.

Also, the re-melting of aluminium requires only 5% of the energy needed for primary production, according to various bodies, including Council for Aluminium in Building (CAB), the International Aluminium Institute (AIA) and The Aluminium Federation (ALFED).

Manufacturer guidance

Aluminium is the most cost-effective material to recycle, using around only 5% of the energy and emissions needed to make it from the raw material bauxite. In addition, all the scraps left over from the aluminium production process can be melted down and used again and again.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

Pendock Linea - Building Linings - Parapet Cappings

Pendock Linea - Building Linings - Parapet Cappings

Pendock Linea - Building Linings - Parapet Cappings - Sloping

Pendock Linea - Building Linings - Parapet Cappings - Sloping

Pendock Architectural Products - Overview Brochure

Pendock Architectural Products - Overview Brochure

Case studies

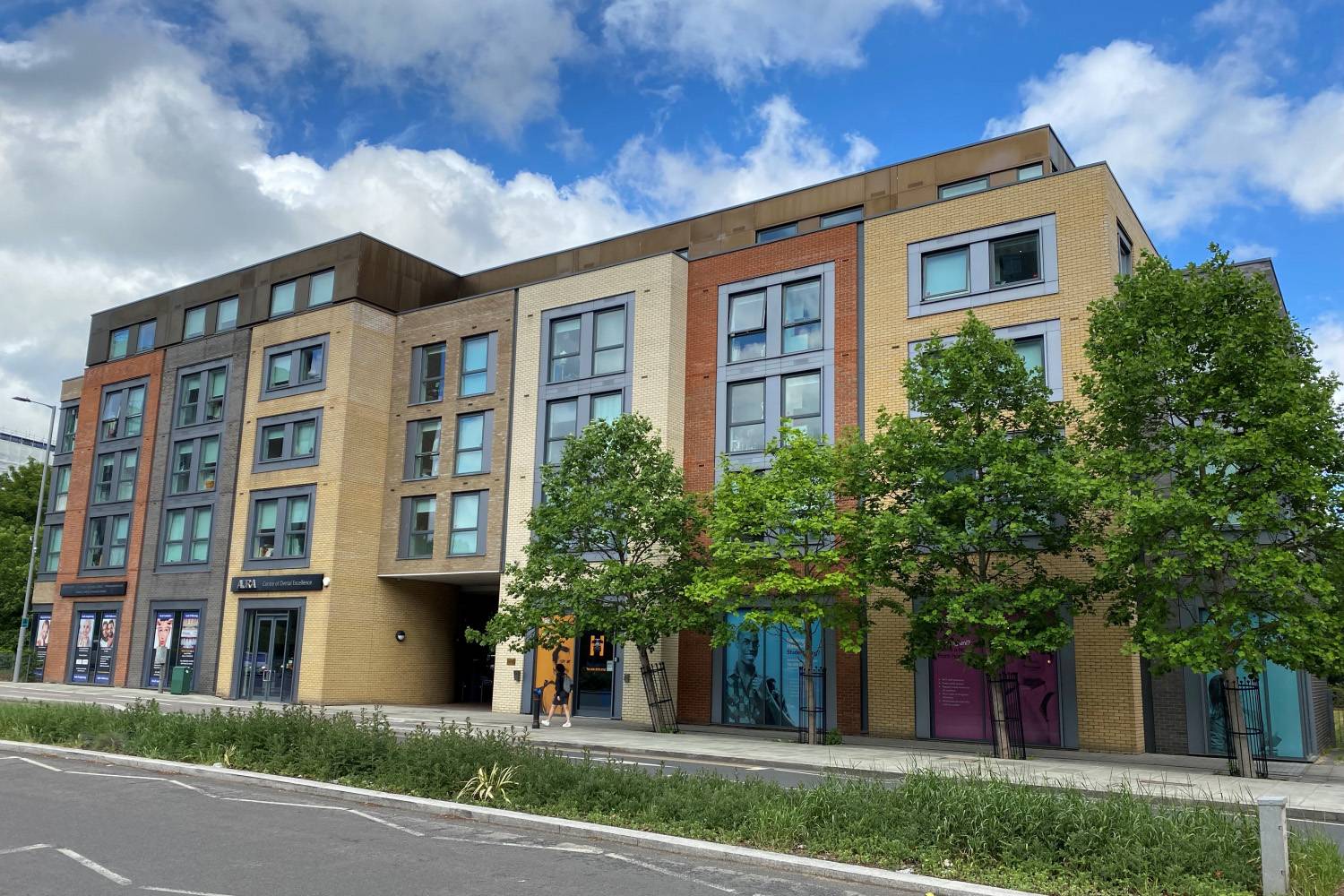

Parapet capping tops out student accommodation
