Perforated Metal Planks (Stainless Steel) - Perforated Metal Planks
Verified by manufacturer 1 month ago
BN-G
BN-G

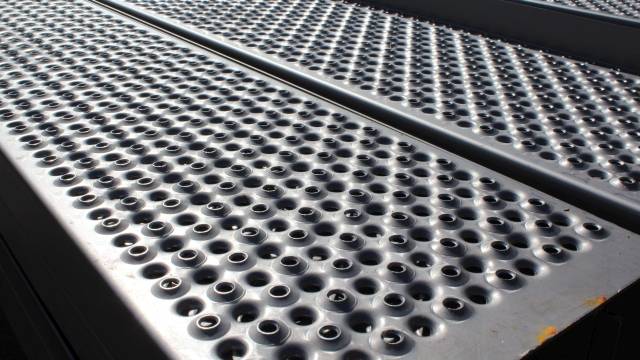

Perforated stainless steel planks, available in a wide range of variants.
Application
- BN-O: Suitable for use with normal pedestrian traffic.
- BZ: Environments where fats, grease and oils are used.
- BR: Suitable for areas of heavy loads on small contact areas, e.g. vehicle navigability on ramps or parking areas.
- BN-G: Indoor environments where the primary considerations are a closed smooth surface for guaranteed walking comfort.
- BP: Large areas which have to be covered in industrial areas and where stringent demands are made on load bearing capacity.
Description
Perforated stainless steel planks, available in a wide range of variants.
Features and benefits:
- High slip resistance.
- Suitable for use in high load areas.
- C-profiled structural plank, manufactured on CNC punching machines.
Type:
- BN-G has closed, punched dimple indentations, pressed upwards in the top surface and offers high anti-slip resistance.
- BN-O is similar to BN-OP, with punched holes, which are pressed downwards. It provides increased drainage performance, and light and air permeability.
- BN-OP is similar to BN-O, with double the amount of drainage holes. It provides increased drainage performance, and light and air permeability.
- BP-UE is similar to the BP, with a higher slip resistance due to additional raised punching.
- BR has rhombic profile with extra high punching (punched holes at 2.5 mm).
- BZ has distinctive surface profiling and a high level of slip resistance.
- BP has smooth line profiling and high loading capacity.
General information
Color | Silver |
Finish | Anti-slip Bright Manufacturer guidanceSurface finish. |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304) and Grade 1.4401 (316). |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/45 Ramps/ walkways L30/460 Walkways |
Product range |
Specification data - Stainless steel cold-formed planks
Format | Closed.Perforated. |
Finish | Mill.Anti-slip.Acid pickled.Electro polished.Manufacturer guidanceSurface finish. |
Slip resistance value – water wet (minimum) | To BS 7976/ DIN 51130, R10. |
Accessories/ Other requirements | Not required. Plank clips. Guidance for specification option: Consult manufacturer for further details. |
BaseMaterial | Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Thickness | Manufacturer guidance1.5–2.5 mm, specifier to detail. |
Perforation | Closed and raised punched dimples. Manufacturer guidancePerforation type. |
Open space | 0%. Manufacturer guidanceOpen area. |
Height | Manufacturer guidance30–150 mm, specifier to detail. |
Width | 150 mm. 200 mm. 250 mm. |
Length | Up to 10 000 mm, specifier to detail. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Germany |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 1 |
Literature
Lichtgitter Perforated Metal Planks
