Perseo Max Retractable Seating

Verified by manufacturer over a year ago

Hussey Seatway Ltd

A beam mounted chair primarily designed for use on Retractable Platforms.

Jump to:
+44 (0)1985 847200 Website

Application

Suited to theatre, conference and cultural facilities.

Description

Retractable seating mounted onto a platform.

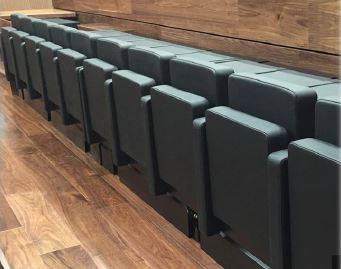

Perseo Max chair:

The product features high backrests and fully upholstered full length arm stanchions ensuring this chair provides high levels of comfort. Available for installation on fixed and retractable tiering as well as a flat floor arrangements.


Seatway TP Platform:

The retractable platform system has been developed to feature a welded design leading to an Inherently stiffer structure. The platforms accommodate any of the manufacturer's bench and chair range leading to a fully integrated solution. Manufactured in the UK and certified to EN 1090.


Features and benefits:

- Seating:

  • Fully upholstered seat and back.
  • Sprung inner seat core with cold moulded polyurethane foam.
  • Full length upholstered arm stanchions.
  • Self-tipping seat base.
  • Available on retractable platforms with an 900 mm row depth and 320 mm row rise.


- Platform:

  • Distinctive fully welded platform design.
  • Adjustable cantilevers on every row to compensate for any floor deviances.
  • Parallel guidance system for straight line operation.
  • Stiff and dynamically correct under-structure with unique space frame construction methods.
  • Row to row, parallel and vertical, column interlock.
  • Non marking polyurethane wheels.

General information

Color

Black

Guidance for specification option:

RAL 9004.

Other

Guidance for specification option:

Fabric colour bespoke to project requirement.

Finish

Powder coated

Material

Steel

Fabric

Wood

Warranty description

Ten year

Guidance for specification option:

Ten year warranty, condition based.

Size

-

Manufacturer guidance

Bespoke based on project requirement. Seat centres from 460 mm.

Uniclass

Pr_40_30_29_72 Retractable seatsPrimary

CAWS

N10/172 Retractable/ demountable seating systems

Specification data - Retractable seats

Fire performance

BS 5852 Ignition Source 5.

Manufacturer guidance

The fabric and foam comply with BS 5852:1990 (Source 0, 1 and 5). Other codes or European Standards can be satisfied as required. Applies to plastic, fabric and foam.

Form

TP-F - Wall and floor-fixed.
TP-M - Mobile unit.
TP-R - Wall-fixed, recessed.
TP-T - Travelling system.

Telescopic platform

-

Unit width

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Number of rows

-

Manufacturer guidance

Consult manufacturer and insert requirement.

Row depth

850 mm.
900 mm.
915 mm.
1800 mm.

Guidance for specification option:

Double depth.

Manufacturer guidance

Custom row depths are available, contact manufacturer for details.

Row rise

260 mm.
280 mm.
300 mm.
320 mm.

Manufacturer guidance

Custom row rises are available, contact manufacturer for details.

Seat spacing (lateral)

460 mm.
490 mm with arms.

Manufacturer guidance

From 460 mm.

Seats and backs

-

Material

Fabric from the Camira Xtreme range.

Guidance for specification option:

Customers own choice of fabric can also be specified.

Colour

-

Manufacturer guidance

Fabric available in a range of colours, consult manufacturer.

Frames

-

Material

Steel.

Finish

Powder coated.

Colour

Black.

Integral accessories

Not required.
Seat numbers and row letters.
Show wood seat and back panels.
Dampened seat tipping.
Dual action gas struts.
Semi-automatic fold down operation.
Front, side and rear safety rails.
Integral power.
Fascia panel systems.
Aisle lighting.
Flex rows for wheelchair spaces.
Electronic partial opening feature.

Standards

To EN 12727:2000, BS 5852:1990, BS 7176:1995, BS EN 1021 - 1 & 2:1994, BS EN 13200-5.

Centres

460 mm.

Guidance for specification option:

No arms.

490 mm.

Guidance for specification option:

Arms.

500 mm.

550 mm.

Height

420 mm.

Guidance for specification option:

Upholstered/plastic benches.

460 mm.

Guidance for specification option:

Gallery PC & arts PC.

Width

1100 mm.

Manufacturer guidance

Aisle width.

Armrests

Upholstered.

Wood.

Sustainability data

Country of product manufacture

United Kingdom
