Pilkington Fire Rated Horizontal (Roof/ Floor) Glass
Verified by manufacturer 15 days ago

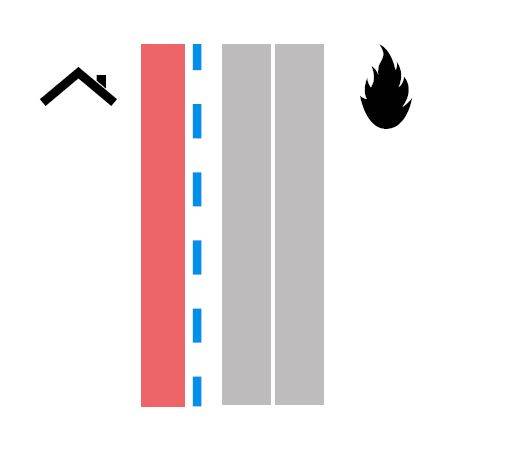

Pyrostop® 30-401 (Horizontal (I/E))
Pyrostop® 30-401 (Horizontal (I/E))
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
A range of Pilkington fire resistant products for horizontal applications, roof, floor and loaded floors.
Application
- Roofs.

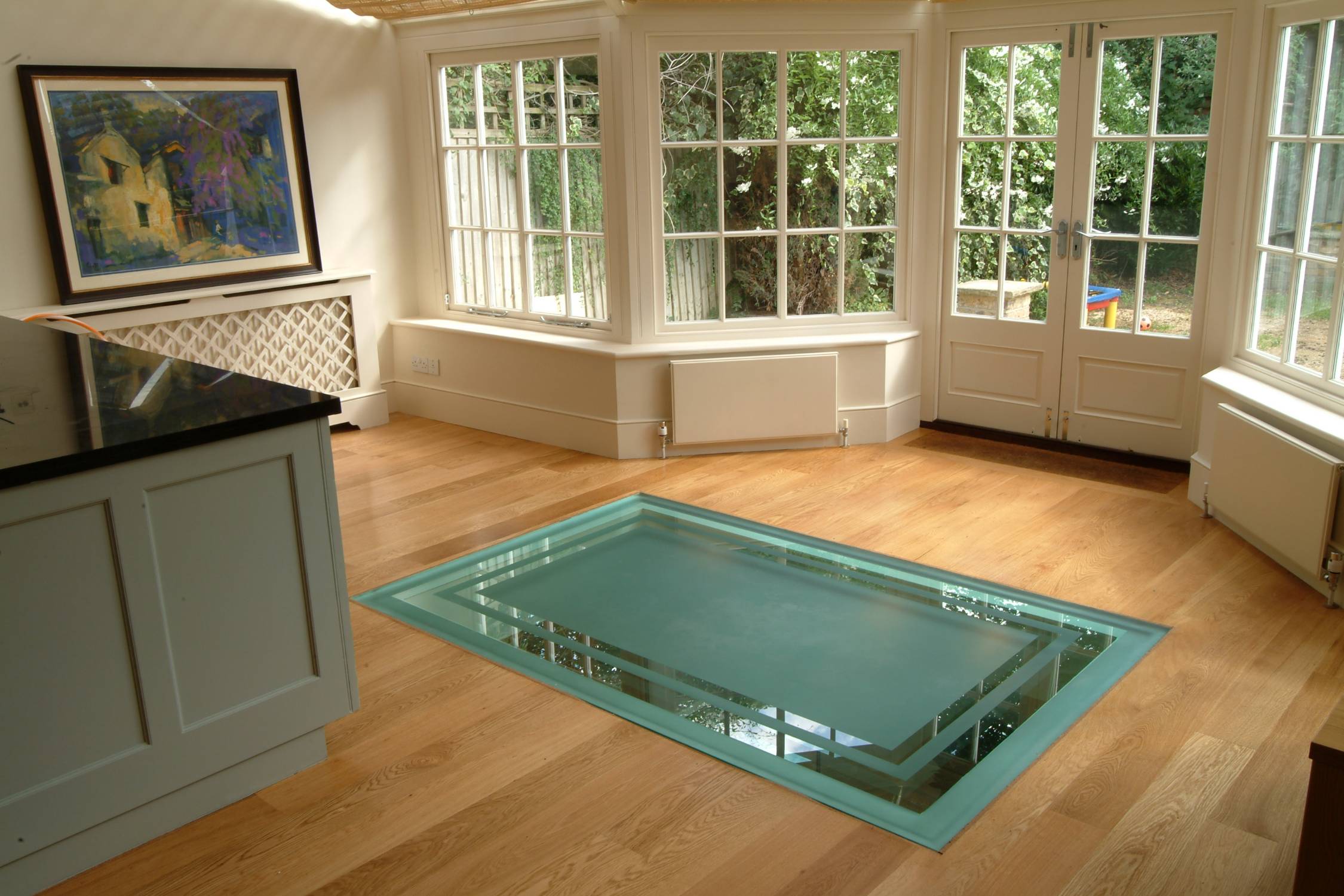

- Floors.
- Load bearing floors.
Description
A range of Pilkington fire resistant products for horizontal applications, roof, floor and loaded floors. A bespoke range of tested solutions, classified from EW30 to REI60 for containing fire spread and for maintaining compartmentalization between buildings and floors.
Roof products are designed to prevent fire spread from the inside to the outside of the building, whilst floor products prevent fire spread between compartmentalized floors, allowing architectural design and maximizing the transmission of natural light whilst also (delete) performing the basic loaded functions of a normal floor.
These products are specifically designed and tested in horizontal form and cannot simply be a product that is tested in a vertical application and rotated through 90 degrees. Detailed design work may also be required to ensure product performance.
Features and benefits:
- Complies with EN 1279-5.
- Resistance to Fire (EN 13501-2): E/EW 30, EI 30 or EI 60.
- Suitable for internal or external applications.
- Ug-value (EN 673): 1.0—1.6 W/m²K.
- Light transmittance (EN 410): 62—69%.
General information
Color | Clear |
Finish | Laminated |
Material | Glass |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H13/115 Structural glass assembly H11/110 Curtain walling H10/10 Patent glazing H10/115 Patent glazing |
Specification data - Thermally toughened glass sheets
Thickness | 44 mm. |
Body colour | Clear. |
Performance requirements | |
Fire performance | 30 minutes. |
Light | Transmittance 63%. |
Solar control | 36%. |
Thermal insulation | 1.2 W/m²K. |
Sound attenuation | 40 (1,-4) dB. |
Impact resistance | To BS EN 12600: 1(C)2 / 1(B)1. |
Light reflectance | 16%. |
Reaction to fire | B-s1,d0. |
TemperatureRange | -40 to +50°C. |
Security | NPD / P2A. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Germany |
Material | Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.04 kg CO₂ eq/m² Self declared |
Recyclability | Glass panes can be re-melted on float line following correct separation from unit |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001:2015 - Environmental Management
ISO 9001 Quality Management
ISO 9001:2015 - Quality Management System
