Pilkington Pyroclear® Fire Resistant - Glazing sheet

Verified by manufacturer 8 days ago

Pyroclear® 30-001 (Internal / External applications)

Pilkington United Kingdom Limited Variant:

An advanced toughened fire-resistant glass.

Jump to:
Website

Application

  • Doors and door sets, with side and over glazed panels, internal and external.
  • Glazed partitions and screen assemblies.
  • Units with integral blinds available.
  • Stairwells, lobbies and escape routes.
  • Protected fire fighter shafts
  • Overhead glazing and façades.
  • Load-bearing glass floors (for safety, must be insulation rated).
  • A wide range of practical framing options, glazing configurations and glass sizes. Available in a comprehensive size range and can be used in various combinations with other glass types in Insulating Glass Units (IGUs).

Description

Pilkington Pyroclear® is an advanced toughened fire-resistant glass for use as a basic integrity-only barrier. It is based on a new technology development which Pilkington have been perfecting and crafting for several years, built on an in-depth understanding of the behaviour of glass in fire, including new knowledge of the detail that influences the probability of glass failure.


Pilkington Pyroclear® is manufactured to high quality control standards, combining the best available expertise in both automotive and architectural premium glass processing. It is based on NSG proprietary technology combined with new R&D insights on the factors that affect the probability of premature failure of advanced toughened glass in fire (long acknowledged as a weakness of this type) and our proprietary accumulated technical experience on glass and glazing systems for integrity fire resistance from years of extensive fire testing and experience in fire safety.


Features and benefits:

  • Pilkington Pyroclear® is an integrity only product for 30 and 60 minutes, (E30 and E60) to BS EN 13501-02.
  • Integrity with reduced heat radiation (EW60) is achieved by using Pilkington Pyroclear® Plus in an insulating glass unit (IGU) or a monolithic laminated glass.
  • Unique product design and system description, manufacturing process and quality assurance system.
  • Recognised to have a superior visual quality due to special processing, high quality toughening and high quality process control.
  • Has achieved a target of more than 50 consecutive successful fire tests in timber framed systems.
  • Designed for compatible edge cover of up to 20 mm for metal frames and 15 mm for timber (NB. Typical value for modified toughened is commonly given as 10 mm maximum to minimise the risks of unpredictable failure).
  • Exploits our developed proprietary R&D knowledge and expertise on glazing systems in timber frames (system design, materials, glazing arrangements).
  • Large pane size capability in metal systems (1.970 m x 4.0 m).
  • Pilkington Pyroclear® has been tested with a variety of glazing seals including a foam tape option for use in timber doors and screens.

General information

Color

Clear

Finish

Smooth

Material

Glass

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_71_33_88 Thermally toughened glass sheetsPrimary

CAWS

L40/80 Fire-resistant channel glazing – plastics/ elastomeric channel

L20/430 Wood doorsets

L20/420 Wood doorsets

L40/55 Bead-fixed insulating glass units – drained and ventilated bead

L20/480 Doorsets

L20/25 Wood panelled doors

L10/45 Rooflights

L10/33 Proprietary windows

L10/31 PVC-U windows

L10/30 PVC-U windows

L10/25 Aluminium windows

L10/20 Steel windows

L10/15 Wood windows

L10/10 Wood windows

L20/410 Wood doorsets

L40/470 Zipper gasket glazing

L20/250 Wood panelled doors

L40/490 Single-sided gasket glazing

L40/65 Fire-resistant tape/ Strip glazing

L40/75 Fire-resistant channel glazing – solid section channel

H10/10 Patent glazing

L40/90 Internal tape glazing

L40/515 Fire-resistant channel glazing – plastics/ elastomeric channel

L20/20 Wood flush doors

H10/115 Patent glazing

L40/510 Fire-resistant channel glazing – solid section channel

L20/280 Doors

L40/58 Bead-fixed insulating glass units – solid bedding, inside bead

L10/580 Secondary glazing system

L10/560 Glazed screen system

L10/550 Glazed metal screens

L10/510 Glazed wood screens

L10/480 Roof windows

L10/460 Rooflights

L10/400 Composite windows

L10/390 Proprietary windows

L10/350 PVC-U windows

L10/330 Aluminium windows

L10/310 Steel windows

L10/210 Wood windows

L20/230 Wood flush doors

L20/55 Doorsets

H13/115 Structural glass assembly

H11/110 Curtain walling

L40/505 Fire-resistant tape/ Strip glazing

Product range

Fire Protection

Specification data - Thermally toughened glass sheets

Composition

Optifloat clear.

Thickness

6 mm.

Body colour

Clear.

Performance requirements

-

Fire performance

30 minutes.

Light

90%.

Solar control

85%.

Thermal insulation

5.7 W/m²K.

Sound attenuation

32 (-2,-2) dB.

Impact resistance

To BS EN 12600: 1(C)1.

Size:

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Light reflectance

8%.

Reaction to fire

A1.

TemperatureRange

250°C (maximum).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass

Recyclability

The product can be re-melted in float lines.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Composite product, so recycled content depends on ratio of materials used.

Literature

Pilkington Fire Resistant Glass Range Brochure

Pilkington Fire Resistant Glass Range Brochure

Pilkington UK Glass Range Brochure

Pilkington UK Glass Range Brochure

Pilkington Pyroclear® 30-001

Pilkington Pyroclear® 30-001

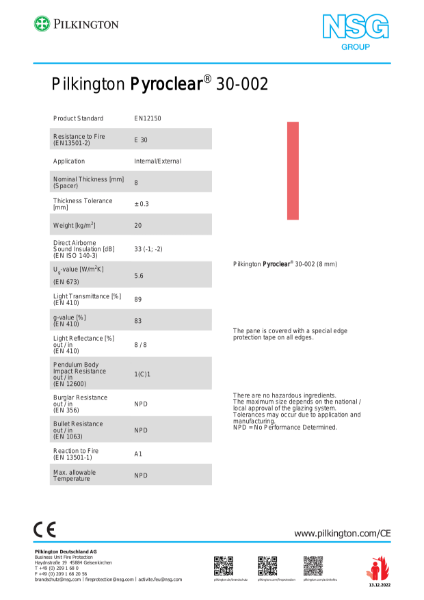

Pilkington Pyroclear® 30-002
