Pillar B - Hydraulic bollard
Verified by manufacturer 4 days ago
PILLAR B 600
PILLAR B 600
CE Marking
Certificate type

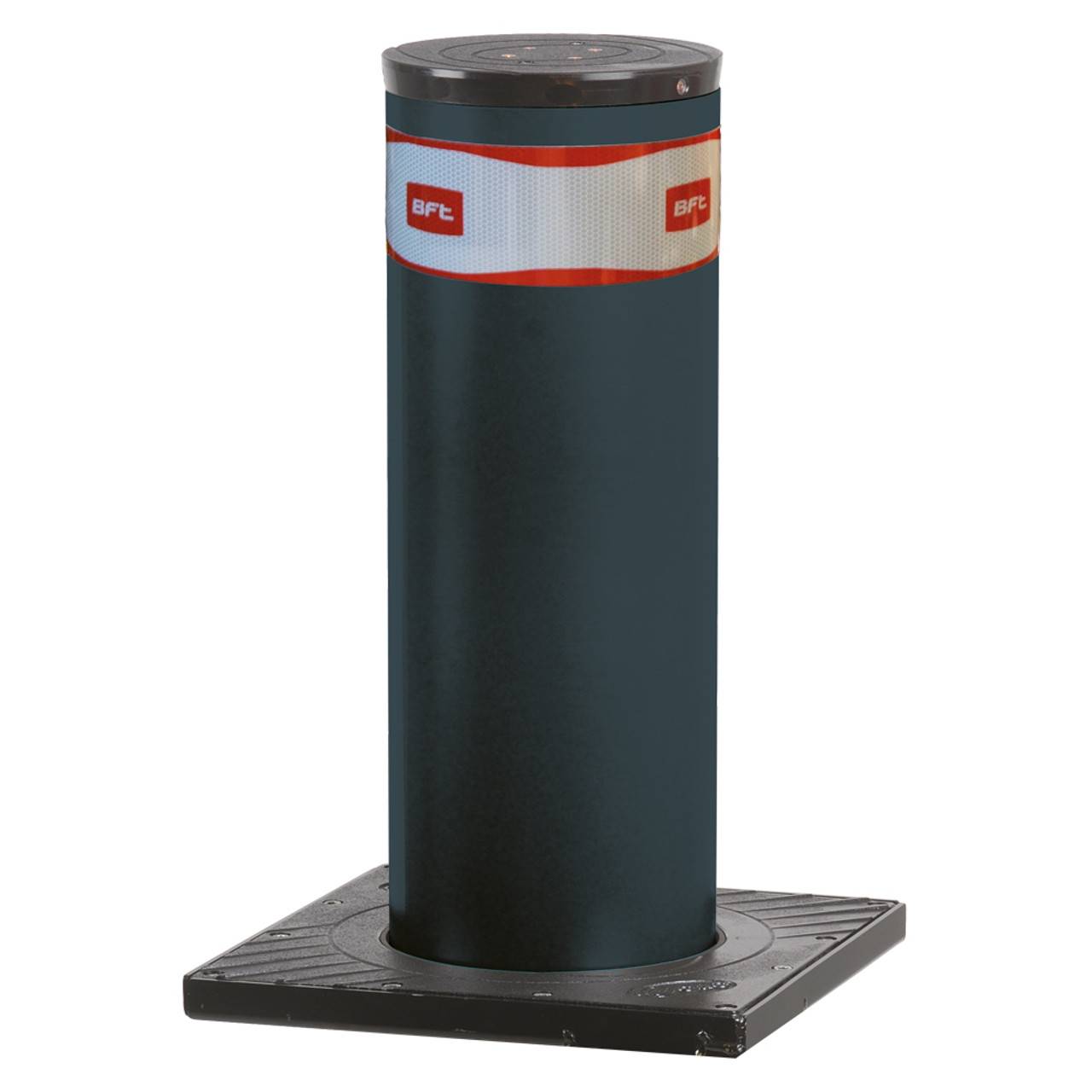

Pillar B is an hydraulic bollard for intensive use.
Application
Hydraulic bollard suitable for sensitive sites such as ministries or airports, as the shaft raises in the event of a power failure.
Description
Pillar B is an hydraulic bollard for intensive use, recommended for high security and sensitive sites.
Features and benefits:
- Available in two sizes.
- Available in two finishes grey or chrome.
- Fitted with an LED light crown.
- Hydraulic bollard.
- Hydraulic security bollard is suitable for protecting sensitive sites.
General information
Color | Grey Silver |
Finish | Powder-coated Chrome |
Material | Stainless steel |
Shape | Circle |
Width | 275 mm |
Height | 600 mm 800 mm |
Uniclass | |
CAWS | Q50/190 Bollards Q50/31 Bollards Q50/194 Retracting bollards |
Specification data - Stainless steel rising bollards
Automation | |
Method of operation | Hydraulic with manual override. |
Electrical supply | 230 V a.c. |
Controllers | Perseo CBD. |
Dimensions | |
Size and profile | 275 mm. |
Height | 600 mm. |
Top profile | Flat. |
Base | Flat. |
Finishes | |
Worked finishes | Slate grey (RAL 7015).Stainless steel. |
Applied finishes | LED light crown. |
Accessories | Stop sign.Traffic light.None. |
Operating time | 5 seconds. |
Usage | 3000 per day. |
Ingress protection | IP67. |
Operating temperature | -40°C to 60°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Third party certifications
CE Marking
Declaration of conformity Pillar b
Literature
Pillar B
