PipeBloc® PWP
Verified by manufacturer 11 days ago
PWP32FP – 32 mm
PWP32FP – 32 mm
UL-EU Certified
Certificate type

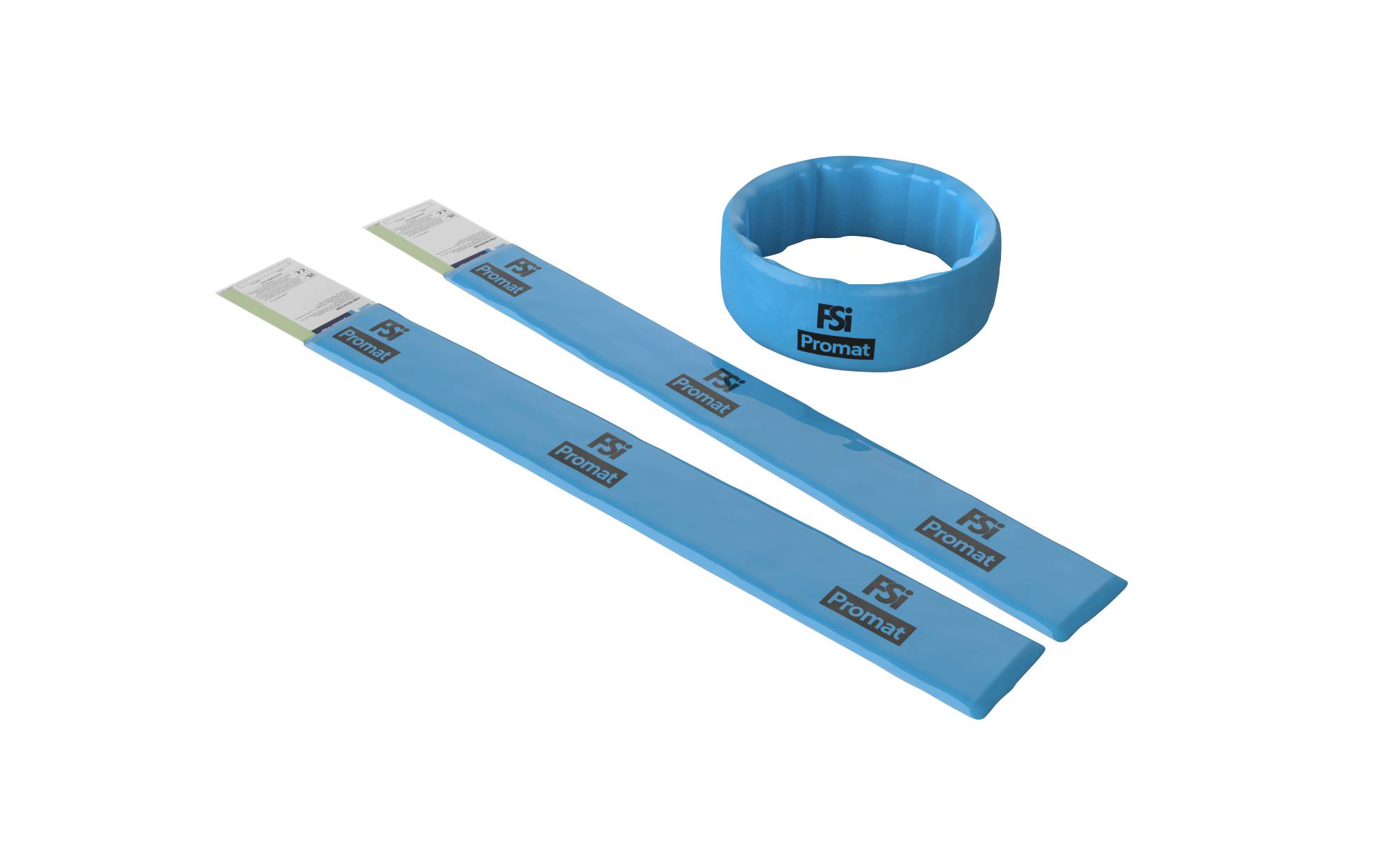

Pipebloc PWP is a fire resistant prefabricated pipe wrap.
Application
Application / Use:
- To reinstate fire resistance through walls and floors where combustible services penetrate the substrate.
- Used in conjunction with FSi products such as Stopseal Batt, Silverseal Compound and Pyrocoustic Sealant.
Description
Pipebloc PWP is a fire resistant prefabricated pipe wrap
consisting of a PE sheathing and an intumescent insert for
interior penetration sealing applications. Pipebloc PWP is
designed to provide a high volume expansion and pressure
seal during a fire to combustible pipes that pass through floor
and wall service openings.
General information
Color | Other Guidance for specification option: Branded LDPE sheath, black inner. Black |
Material | Low density polyethylene (LDPE) Guidance for specification option: Sheathing. Intumescent Guidance for specification option: Insert. |
Width | 40 mm |
Uniclass | |
CAWS | P12/44 Pipe collar - insulated wrap |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 32 mm.Guidance for specification option: Pipebloc PWP width. For penetrations seals, opening size and penetration service covered as per requirements of UL-EU-01022-CPR. |
Fire performance | To BS EN 1366-3:2009 and BS EN 13501-2:2016.Guidance for specification option:
|
Materials | LDPE sheathing with intumescent insert. |
Finish/ Colour | Branded LDPE sheath, black inner. |
Weight | 0.1–3.4 kg. Guidance for specification option: (depending on Pipebloc PWP size). |
Application temperature | 5–35°C. Guidance for specification option: Recommended temp ranges +5°C to +35°C. |
Shelf life | Five year. Guidance for specification option: (from date of production). |
Third-party certification | CE Mark ETA-20-1008, UL-EU-01022-CPR, UAE CoC; ISO 9001: 11378. |
Position | Fitted in hole or opening. Guidance for specification option: For larger openings, the aperture will need to be filled with Stopseal Batt at the same time as Pipebloc PWP is installed. See TDS001 for installation and UL-EU-01022-CPR for tested systems. For smaller openings / annular space apply Pyrocoustic Sealant at 5 mm depth after wrap is installed. Use pointing tool to smooth off. |
Sustainability data
Material | Low density polyethylene (LDPE) Guidance for specification option: Sheathing. Intumescent Guidance for specification option: Insert. |
Third party certifications
UL-EU Certified
UL-EU-01022-CPR - PipeBloc PWP
Literature
TDS021 - V1.3 - PipeBloc PWP - Aug 2024

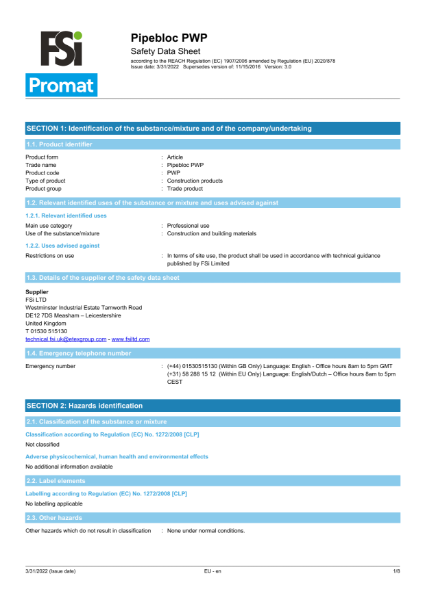

SDS020 - V3.0 - Article - PipeBloc PWP
PipeBloc PWP - DoP
