PIR WaterSave® - Water Flow Control System

Verified by manufacturer 6 months ago

Andel Ltd

Motion sensor water flow control system for water sustainability and BREEAM credit WAT03 when used in WC areas.

Jump to:
+44 (0)1484 845000 Website

Application

An effective water sustainability solution for office buildings, hotels, care homes, schools and any buildings with communal areas with running water.

Description

PIR WaterSave® is a motion sensor water flow control system that reduces water usage, water wastage and the risk of water leaks. Installed in any areas within a building where there is running water such as bathrooms, shower rooms, WCs and kitchens, the motion sensor automatically ensures that water is only supplied when movement is detected.

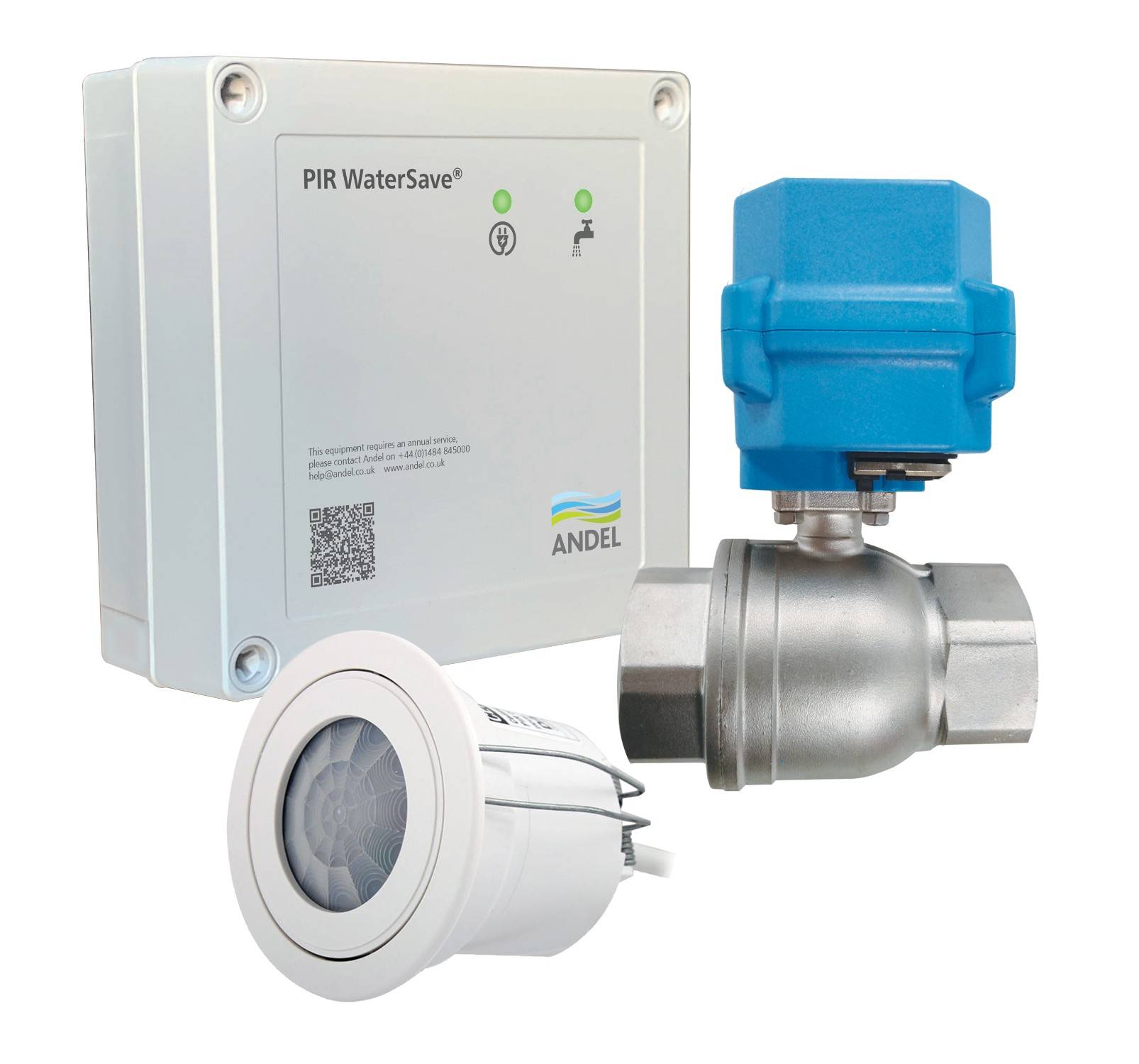

The system comprises a wall-mounted control panel and a 360° PIR (passive infra-red) motion sensor which together control low-energy, motorised isolating valves, switching the water supply on and off as required, through the detection of movement in the monitored area.


Features and benefits:

  • Reduces water usage.
  • Reduces water wastage.
  • Protects against damaging and costly water leaks.
  • Saves on water bills.
  • Can earn one BREEAM WAT 03 credit.
  • The system can connect to an existing PIR motion sensor lighting system.
  • Each control panel can manage up to three motorised valves and a further two PIR motion sensors if required.

General information

Color

Grey

Finish

Satin

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Square

Length

50 mm

Width

175 mm

Height

175 mm

Warranty description

Ten year

Uniclass

Ss_75_70_52_96 Water supply control systemsPrimary

CAWS

N13/420 Proximity sensor control units

Specification data - Water supply control systems

Objectives

Wall-mounted control panel installed in areas where there is running water.

Equipment

Low-energy, motorized isolating valves.

Guidance for specification option:

  • WRAS-approved.
  • Stainless-steel motorized ball valves supplied with a 2-core flying lead.
  • Orifice sizes: 10, 15, 20, 25, 32, 38 or 50 mm.

Sensors

360° PIR (passive infra-red) motion sensor.

Equipment interconnectivity

Wired.

Cables

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Containment

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Control equipment power supply

Mains supply.

Guidance for specification option:

  • Mains supply: 86–264 V.a.c., 50/60 Hz.
  • Mains fuse protection: 3 Amp.
  • Maximum current consumption: 60 W.
  • Minimum current consumption: 150 m A (approximate).

Enclosure material

Acrylonitrile butadiene styrene (ABS).

Ingress protection (IP) rating

IP 66.

Dimensions

175 x 175 x 50 mm.

Manufacturer guidance

Control panel height x width x depth.

Fixing

Control panel: Surface-mounted internal wall, optional wall brackets supplied with the unit.
PIR motion sensor: Ceiling mount with spring-loaded retaining clip. (64 mm diameter hole required for fitting).

Indicator colour

Green LED.

Guidance for specification option:

  • Power on: Green LED (no light when power is off).
  • Water on: Green LED (no light when water supply is off).

Manufacturer guidance

Status and alarm indicators.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
