Plank Grating B-CUBE Dimple - Perforated Metal Plank
Verified by manufacturer 2 months ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Environmental Product Declaration
Certificate type
Safety gratings.
Application
- Internal & external anti slip maintenance walkways
- Access walkways and maintenance platforms
- Landings
Description

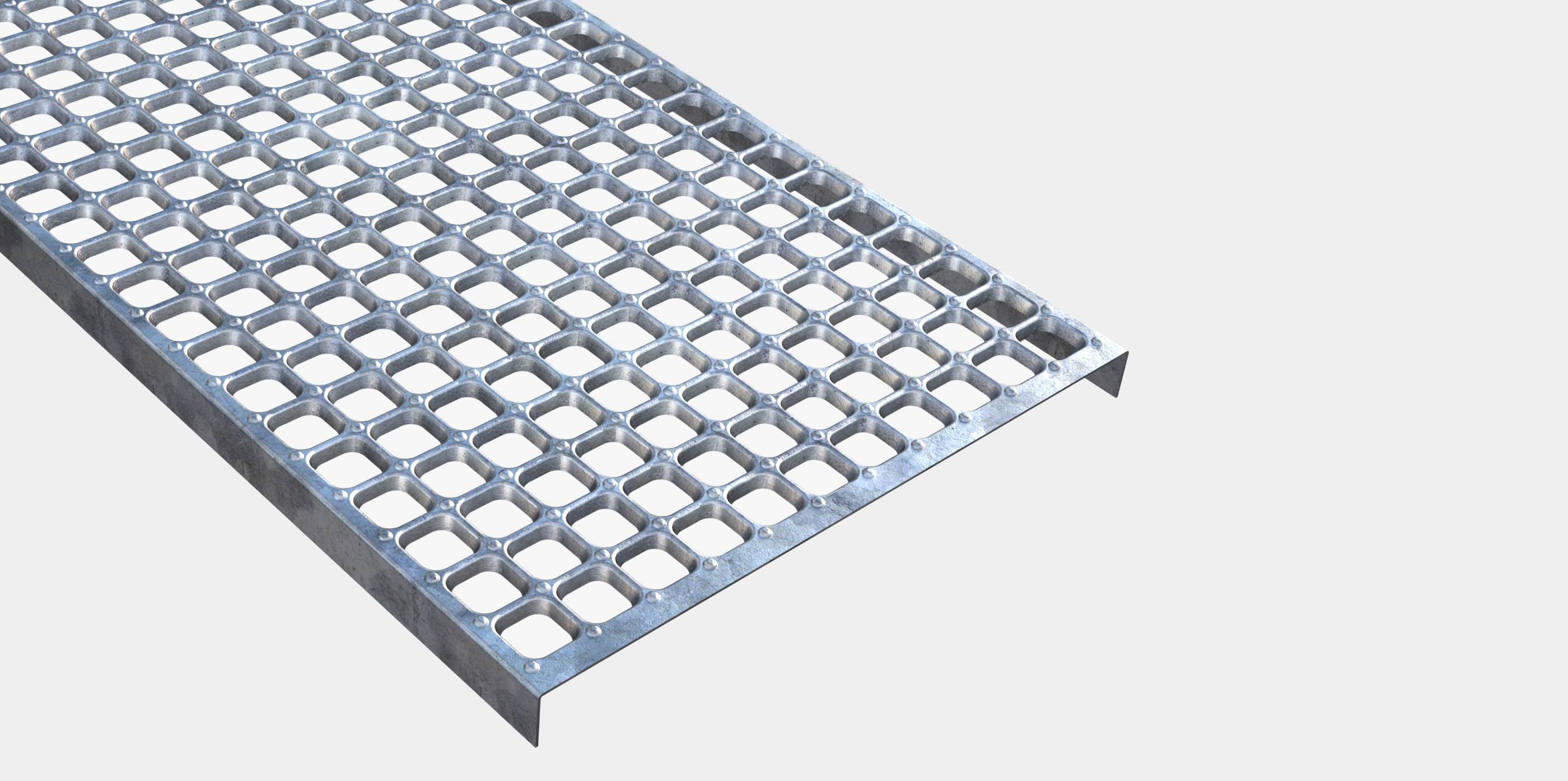

Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.
General information
Finish | Unfinished |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | Q10/312 Footway gratings L30/460 Walkways L30/45 Ramps/ walkways |
Specification data - Footway gratings
Size | Manufacturer guidanceInsert requirement, contact manufacturer for information. |
Grating type | Perforated plank. |
Material | Stainless steel.Steel.Guidance for specification option: 240 YP, hot-dip galvanized to EN 1461. |
Pattern | 34 x 34 mm downward drainage holes.Guidance for specification option: 50–56% free area. 35 mm ball proof (to BS 4592). 43.5 x 43 .5 mm C-C grid. |
Fixing type | Fixing Clip - Lower Part.Fixing Clip - Upper Part MA44/Cube. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2.33 kg CO₂ eq/kg Manufacturer guidanceCarbon Steel Hot Dip Galvanised 2.6kg CO2e/kg |
Recyclability | 100% |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 45001 Health and Safety Management
ISO 45001
ISO 9001 Quality Management
ISO 9001
Environmental Product Declaration
Verified EPD Certificate - punched hole gratings
Literature
B-CUBE Dimple
CUBE loading chart & m2 weights
Case studies
New Air BP Jet Fuel Station - plank gratings
