Plate heat exchangers suitable for a range of applications including HVAC, offshore oil platforms, casinos, hospitals, universities, chemical plants, refineries, gas processing facilities, amusement parks, data centres, breweries, geothermal pool resorts, power plants, factories, steel mills, schools and ethanol plants.

Description

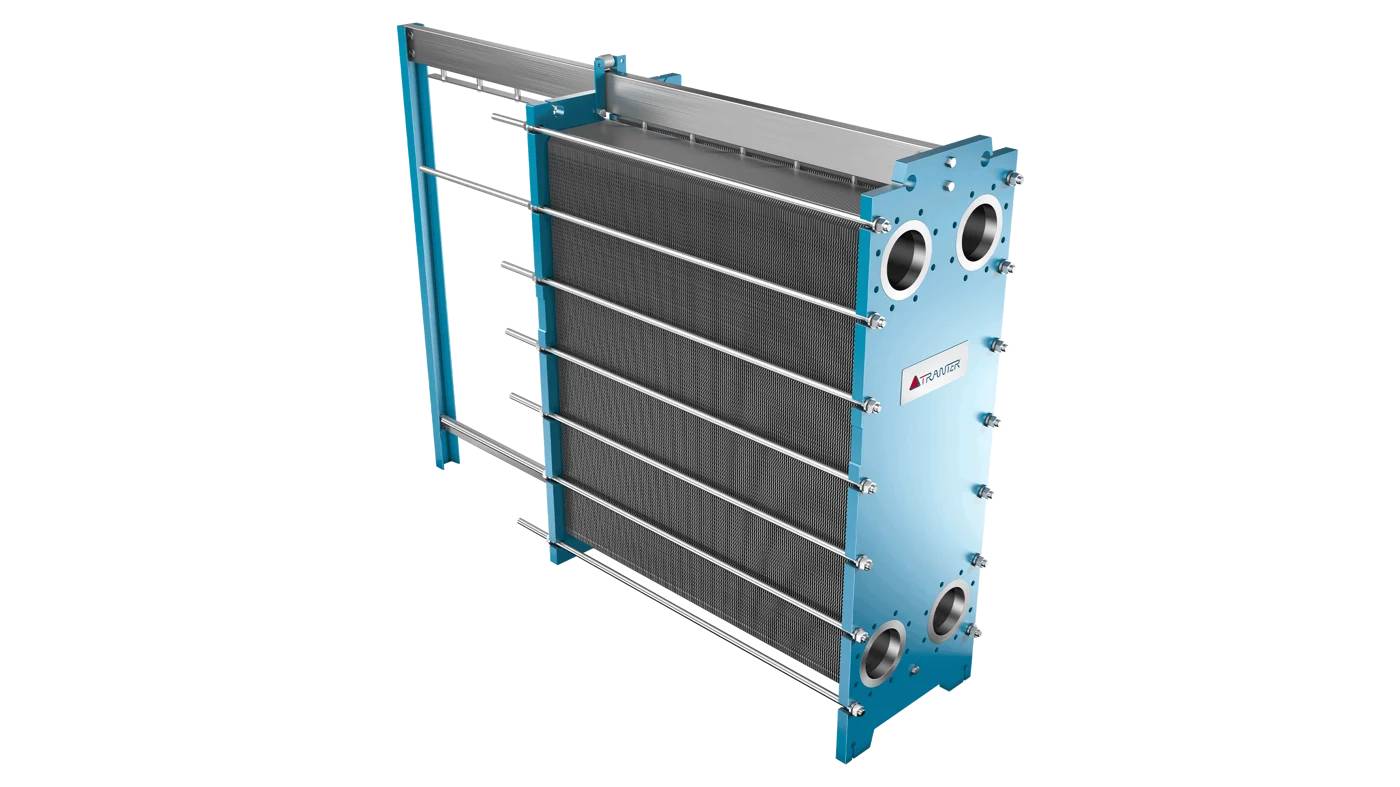

The Superchanger is Tranter’s gasketed plate heat exchanger. The plates and gaskets are designed to achieve specific goals, such as higher pressure ratings, more efficient heat transfer with lower pressure drop, and handling tough media, such as streams with a high particulate load.


GT Series

The GT series features a deeper gasket groove for higher pressures – up to 25 barg, a shallow draw depth for tight temperature approaches and an inside-out halo alignment system. The series is specifically designed for HVAC or other tight-temperature-approach applications. Models are available in DN150 and higher port sizes. The plate series features HydroFit -Variable draw depth to help distribute flow from port to heat transfer area and the Omniflex plate pattern – a patented Tranter design enabling high energy efficiency. The plate pattern induces high turbulence and enhanced heat transfer rates, with low pressure drop.


GL Series

GL series plates have herringbone-style embossing that are available across a large span of angles, making them versatile for a wide range of applications.


GC Series

Some GC plates feature a deeper-than-standard draw depth and a longer pitch, maximizing the disengagement space and making them suitable for low-pressure drop or viscous fluid applications. Additionally, they are optimal for steam applications and can deliver high heat transfer rates at low pressure drops.


GX Series

GX plate technology uses two asymmetrical plate patterns and a neutral gasket plane (meaning either side can be the gasket side) to create six possible flow channel configurations. That means each stream sees a different channel geometry, which is why these plates are superior performers when the flows are unbalanced and the allowable pressure drops are reasonably close.


GFP Series

A plate and frame heat exchanger utilizing wide-gap plates economically recovers heat from hard-to-handle waste streams in a variety of industries, including pulp and paper, sugar processing, alcohol production, grain processing, chemicals, textiles and ethanol distilling. Standard materials are EN 1.4301 (304SS) and EN 1.4401 (316SS). Custom requirements for Hastelloy C-276, 254SMO or other alloys, which can be cold formed, can also be accommodated.


GD Series

The double-wall plate heat exchanger is intended for use where the two fluids on each side of the plates should not mix—due to possible contamination or an undesirable reaction. If a leak through one of the plates or around one of the gaskets should occur, the fluid is vented to the outside of the heat exchanger before any intermixing can occur. The leak is immediately evident even before disassembly of the heat exchanger.


Features and benefits:

  • Maximum efficiency.
  • Wide spread of applications.
  • Advanced gasket/bleed port design.

General information

Color

Blue

Beige

Black

Brown

Cream

Show more

Finish

Coated

Material

Stainless steel

Titanium

Rubber

EPDM

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Minimum length - 10 mm,

Maximum length - 5000 mm.

Width

Bespoke

Guidance for specification option:

Minimum width - 180 mm,

Maximum width - 1600 mm.

Height

Bespoke

Guidance for specification option:

Minimum height - 500 mm,

Maximum height - 4500 mm.

Warranty description

18 months

Uniclass

Pr_60_60_38_62 Plate heat exchangersPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Plate heat exchangers

Primary medium

-

Fluid

Hot water.

Steam.

Water.

Glycol.

Flow rate

-

Manufacturer guidance

Any flow rate can be made available. Please insert requirements.

Inlet temperature

-

Manufacturer guidance

Minimum inlet temperature -30oC,

Maximum inlet temperature 180oC.

Please insert requirements.

Outlet temperature

-

Manufacturer guidance

Minimum outlet temperature -30oC,

Maximum outlet temperature 180oC.

Please insert requirements.

Working pressure

-

Manufacturer guidance

Maximum working pressure of 25 Bar Gauge available. Please insert requirements.

Pressure loss

-

Manufacturer guidance

Please insert requirements (Bar).

Secondary medium

-

Fluid

Hot water.

Steam.

Water.

Glycol.

Flow rate

-

Manufacturer guidance

Any flow rate can be made available. Please insert requirements.

Inlet temperature

-

Manufacturer guidance

Minimum inlet temperature -30oC,

Maximum inlet temperature 180oC.

Please insert requirements.

Outlet temperature

-

Manufacturer guidance

Minimum outlet temperature -30oC,

Maximum outlet temperature 180oC.

Please insert requirements.

Working pressure

-

Manufacturer guidance

Maximum working pressure of 25 Bar Gauge available. Please insert requirements.

Pressure loss

-

Manufacturer guidance

Please insert requirements (Bar).

Output

-

Manufacturer guidance

Any wattage available. Please insert requirements.

Material

-

Plates

Stainless steel.

Titanium.

Gaskets

EPDM.

NBR.

FKM.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Stainless steel

Titanium

Rubber

EPDM

Manufacturing plant location

Recyclability

99% recyclable

Expected Life

30 year
