Application

Suitable for hotels and student accomodation.

Description

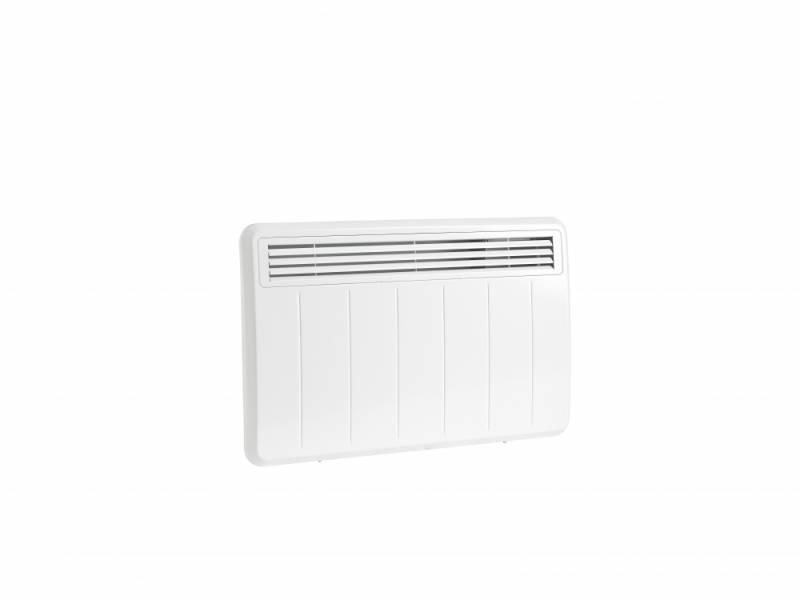

Wall controlled PLXE NC tamper-proof panel heaters provide building managers of hotels and student accommodation the opportunity to pre-configure the time and temperature settings of each heater and limit occupancy control adjustment.



The programming of the Dimplex Wall Controller is set by the Building Control Manager using the ConfigR App which is available via a free download on iOS or Android App stores (registration for ConfigR is required). Each individual heater must be paired up with its own single dedicated Dimplex Wall Controller.


Features and benefits:

  • Tamper-proof panel heater.
  • 24/7 timer with 4 time and temperature settings (Via ConfigR APP).
  • Up to four hour boost (Via ConfigR APP).
  • Adaptive start pre-heating (Via ConfigR APP).
  • Requires additional purchase of DWC (Dimplex Wall Controller).
  • Complies with Lot 20 of the ERP directive.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Width

450 mm

620 mm

690 mm

860 mm

Height

430 mm

Warranty description

Two year

Uniclass

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

V90/590 Equipment

Specification data - Room heaters

Third party certification

UKCA, CE and BEAB.

Room heaters type

Panel.

Output

0.50 kW.

Finish

Epoxy polyester powder-coated, Traffic White (RAL 9016).

Accessories

078445 - Dimplex Wall Controller.

Guidance for specification option:

A Dimplex Wall controller is required for each heater as multiple heater connection is not possible.

Controls

Digitally controlled, electronic thermostat.

Guidance for specification option:

Accurate to (±0.2°C). Setpoint range (7-26°C).

Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day.

Continuous heat modes: Eco, Manual, Frost Protect.

Additional Modes: Away, Boost, Setback.

Heating element

Compact, finned, mineral filled and sheathed.

Safety features

Thermal cutout (auto reset type) and overheat detection.

Ingress protection (IP) rating

IP24.

Battery back-up

CR2032 Lithium manganese dioxide 3V coin cell battery.

Guidance for specification option:

To backup real time clock. Battery life >5 years.

Supply

1.3 m fitted, 3 core for fused spur installation, 1/N/PE ~230–240V, 50 Hz Class I, with earth wire.

Width

450 mm.

Sustainability data

Country of product manufacture

United Kingdom
