DN65 PN16 LUGN50065MDVEPV1623COM
Statement of compliance
Certificate type

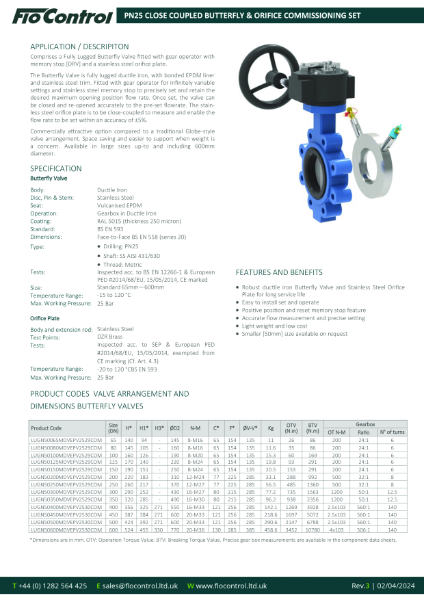

Fully lugged butterfly and orifice plate commissioning set.
Typically in plant rooms and on branches.
The Close Coupled Butterfly Valve & Orifice Plate Commissioning Set comprises a Fully Lugged Butterfly Valve fitted with gear operator, incorporating a memory stop [DRV] and a stainless steel Orifice Plate.
The Butterfly Valve is fully lugged ductile iron, with bonded EPDM liner and stainless steel trim. Fitted with gear operator for infinitely variable settings and stainless steel memory stop feature to precisely set and retain the desired maximum opening position flow rate. The valve once set can once be closed and re-opened accurately to the pre-set flow rate.
The stainless steel Orifice Plate is provided to be close coupled to measure and enable the flow rate to be set within an accuracy of ±5%.
The Close Coupled Butterfly Valve & Orifice Plate Commissioning Set is a commercially attractive option compared to traditional Globe style Valve arrangement. The Butterfly Valve concept is space saving and easier to support when weight is a concern. The Close Coupled Butterfly Valve & Orifice Plate Commissioning Set is also available in large sizes up-to and including 600mm diameter.
Features and benefits:
Color | Blue Black Silver |
Material | Iron Stainless steel Rubber |
Warranty description | 18 months Manufacturer guidance18 months. |
Uniclass | |
CAWS | S90/650 Flow reducing/ servicing valves S90/650 Flow-reducing/ servicing valves |
Product range |
Standard | To BS EN 593. Inspected according to BS EN 12266-1 & European PED #2014/68/EU, 15/05/2014, CE marked. |
PN rating | PN16.PN25. |
Materials | |
Body | Ductile Iron. RAL 5015 (thickness 250 micron). |
Shaft | Stainless Steel. |
Disc | Stainless Steel. |
Seat | Vulcanized EPDM. |
Operation | |
Manual | Gear. |
TemperatureRange | -15 to 120°C. |
Country of product manufacture | United Kingdom |
