Pneumatic Vibration Isolators for Low Frequencies and Sensitive Equipment - Pneumatic Air Spring Mounts

Verified by manufacturer 4 months ago

PAL9-6 - PAL Series for protecting sensitive equipment

ACE Fabreeka UK Variant:

PAL and RLA series of pneumatic vibration isolators for low frequencies and sensitive equipment.

Jump to:
+44 (0)1942 727440 Website

Application

PAL Series for protecting sensitive equipment:

Precision Aire™ levelling PAL air spring systems from Fabreeka® use automatic levelling air springs. These isolators are ideally suited for conditions requiring both height control and vibration isolation. Fabreeka® PAL isolators meet all of the essential requirements for instrumentation, electron microscopes, measuring stations and precision manufacturing machines.


RLA Series to isolate large amplitude emitting equipment:

For effective vibration and shock isolation in all kinds of dynamic testing equipment such as:

  • Automotive test benches (such as road simulation, MAST, Hexapod, hydropulse units).
  • Earthquake simulation equipment.
  • Wind power test benches.
  • Railway test benches.
  • Aircraft component testing systems.
  • Material testing stations.
  • Emergency generators, with or without foundations.
  • Shredders.
  • All other kinds of large foundation.

Description

PAL Series for protecting sensitive equipment:

Precision Aire™ air spring elements with automatic levelling (PAL).


Air spring elements in the PAL series provide superior low-frequency vibration isolation for measurement equipment, electron microscopes, MRI scanners, coordinate measuring machines and precision manufacturing equipment. Precision Aire™ levelling PAL air spring systems from Fabreeka® use automatic levelling air springs. These isolators are ideally suited for conditions requiring both height control and vibration isolation. Fabreeka® PAL isolators meet all of the essential requirements for instrumentation, electron microscopes, measuring stations and precision manufacturing machines.


Features and benefits:

  • Standard Fabreeka® PAL isolators have natural frequencies from 1.5 to 2.7 Hz, depending on isolator height.
  • Bespoke isolators optionally have even lower natural frequencies (down to 0.5 Hz).
  • PAL air springs respond quickly to changes in load and centre of gravity.
  • Deviations from positions once present are automatically readjusted.
  • A complete Fabreeka® PAL system consists of at least three main master isolators for three-point level control.
  • Each isolator has an integrated level-control valve that functions as a load sensor and height control.
  • Any number of additional slave isolators may be added to support the total device weight.

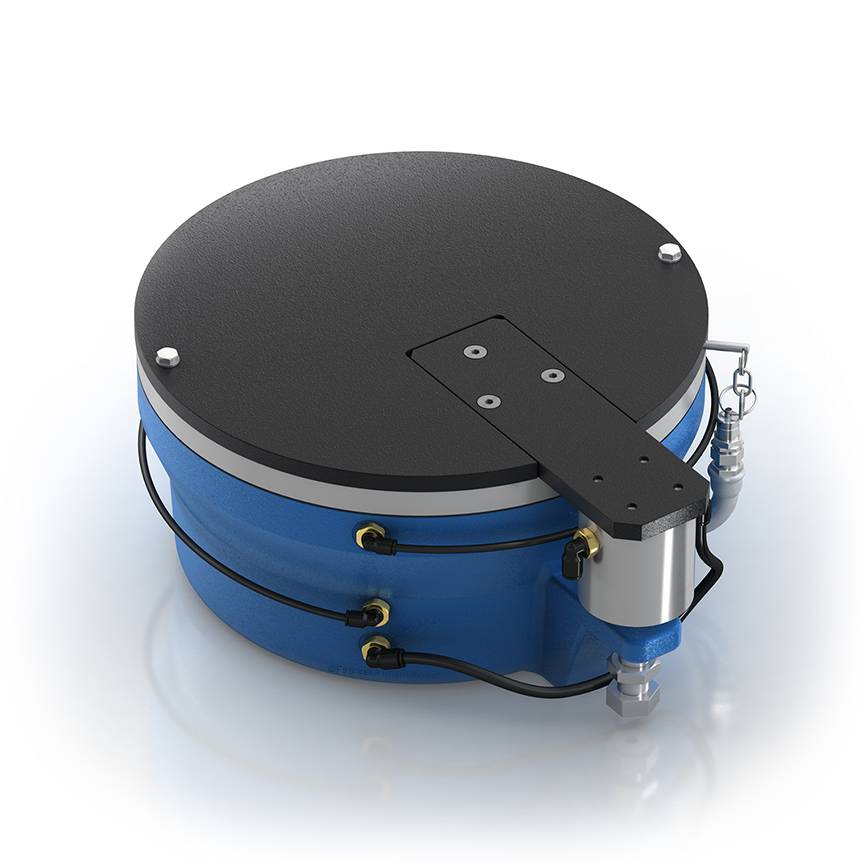

RLA Series to isolate large amplitude emitting equipment:

Fabreeka Precision Aire belted bellows RLA type rang.


RLA air springs are calculated and prepared following pressure vessel regulations DGRL 2014/68/EU. Production and assembly processes in regards to safety, testing and quality control are in accordance with Machinery Directive 2006/42/EC. RLA air springs are equipped with safety valves for overpressure and over travel limitation functions as standard.


Features and benefits:

  • Load range of 3,500 kg to 31,500 kg depending on design size.
  • Virtually constant load-independent vertical natural frequency over a wide load range.
  • Low vertical natural frequency to below 0.7 Hz (optionally with additional volume).
  • Switchable vertical natural frequency (optionally with additional volume).
  • Progressive vertical stiffness curve n Horizontal natural frequency adaptable by design in a wide range to match a particular application.
  • Low-noise version (sound hardness at E2 4.45 kg/m²/s) for best possible solid-bound soundproofing.
  • niveautone® design using mechanical-pneumatic Triflow® proportional control valves.
  • Optional pneumatic double chamber principle for effective visco-pneumatic system damping.
  • Effective damping behaviour by optional adjustable laminar flow damping.
  • Optional internal viscous safety damping for Lehr’s damping ratios up to 0.25.

General information

Material

Aluminium

Shape

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_80_77_94_65 Pneumatic isolation mountsPrimary

CAWS

K11/27 Acoustic separating floor system

K11/275 Acoustic separating floor system

K11/295 Floating floor system

Specification data - Pneumatic isolation mounts

Isolator type

PAL isolator.

Guidance for specification option:

PRECISION AIRE™ air spring elements with automatic levelling (PAL).

Maximum load

550 kg.

Manufacturer guidance

At max. operating pressure of 7 bar.

Isolator damping

6–20%.

Guidance for specification option:

Vertical (adjustable).

3–6%.

Guidance for specification option:

Horizontal.

Levelling accuracy

+/– 0.15 mm to +/– 0.025 mm.

Horizontal isolator natural frequency

2.0–4.5 Hz.

Guidance for specification option:

(−6).

2.0–4.5 Hz.

Guidance for specification option:

(−12).

Vertical isolator natural frequency

2.5–2.7 Hz.

Guidance for specification option:

(−6).

1.5–1.7 Hz.

Guidance for specification option:

(−12).

Controls

-

Equipment

Level control valves.

Product Reference

Pneumatic Vibration Isolators for low frequencies and sensitive equipment

Type

PAL9-6.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Aluminium

Recyclability

Product is an assembly composed of multiple materials and would therefore require disassembling and components recycled individually.

Manufacturer guidance

Disassemble the product, made from standard materials (aluminium, Brass, Plastic, Rubber) and can therefore be recycled where appropriate.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

10 %
