Polyurethane Quayside Post and Rail

Verified by manufacturer 1 month ago

BX 1577-2

Broxap Street Furniture Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • FSC

    FSC

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Polyurethane posts with either polyurethane, galvanised steel or stainless steel horizontal rails

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for pedestrian guidance, edge protection, demarcation, parking prevention or ornamental use in a range of settings, including town centres, shopping centres, parks, car parks, harbours, seafronts or residential estates

Description

Robust multi-rail post and rail system available manufactured from polyurethane with polyurethane, galvanised only or stainless steel horizontal rails.


Features and benefits:

  • Available with a baseplate fixing or root fixed
  • Available as a short version with 2 horizontal rails or a taller version with 3 or 5  horizontal rails
  • Posts also available in ductile iron


Polyurethane is recommended for use in coastal areas where corrosion may be an issue for other materials

General information

Color

Finish

Powder-coated

Material

Polyurethane (PUR)

Shape

Other

Length

Bespoke

Width

75 mm

340 mm

350 mm

Height

650 mm

1271 mm

Warranty description

One year

Uniclass

Ss_25_14_63_63 Post and rail fencing systemsPrimary

CAWS

Q41/130 Protective barriers

Q41/135 Proprietary protective barriers

Q41/130 Protective barriers

Specification data - Post and rail fencing systems

Posts

Polyurethane.

Rails

Polyurethane.

Carbon steel.

Stainless steel, 1.4401 (316) grade.

Site applied finishes

Coated Black RAL 9005.

Coated Traffic Red RAL 3020.

Coated Dark Blue RAL 5013.

Coated Mid Blue RAL 5015.

Coated White RAL 9016.

Coated White Aluminium RAL 9006.

Coated Anthracite Grey RAL 7016.

Coated Traffic Yellow RAL 1023.

Coated Holly Green BS4800 14 C 39.

Coated Moss Green RAL 6005.

Coated Dark Grey BS4800 18 B 25.

Coated Duchess Blue BS4800 20 C 40.

Coated to a non standard BS/RAL colour.

Coated Goose Grey BS4800 00 A 05.

240 grit satin polished.

Galvanized.

Weight

6 kg.

Base

Baseplate.

Root fixed.

Size:

650 x 75 mm.

Configuration

Polyurethane Quayside 2-Rail Post

Diameter

50 mm.

Sustainability data

Country of product manufacture

United Kingdom

Material

Polyurethane (PUR)

Manufacturing plant location

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA Agrément Certificate

BBA Agrément Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

FSC

FSC

FSC® (FSC-C122338) Certification

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 Environmental

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA Agrément Certificate

BBA Agrément Certificate

UKCA Marking Certification

Literature

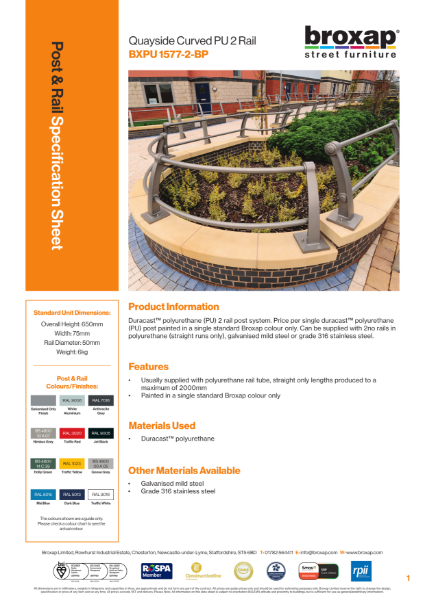

Polyurethane Quayside Post and Rail Specification Sheet
