PolyWRAP Column Protector - Warehouse Column Protector

Verified by manufacturer 2 months ago

Brandsafe

PolyWRAP Column Protector: Enhance safety with this highly visible solution, cushioning against HGV/MHE impacts. Ideal for industrial settings where column protection is vital for property owners.

Jump to:
BOS
+44 (0)1525 850222 Website

Application

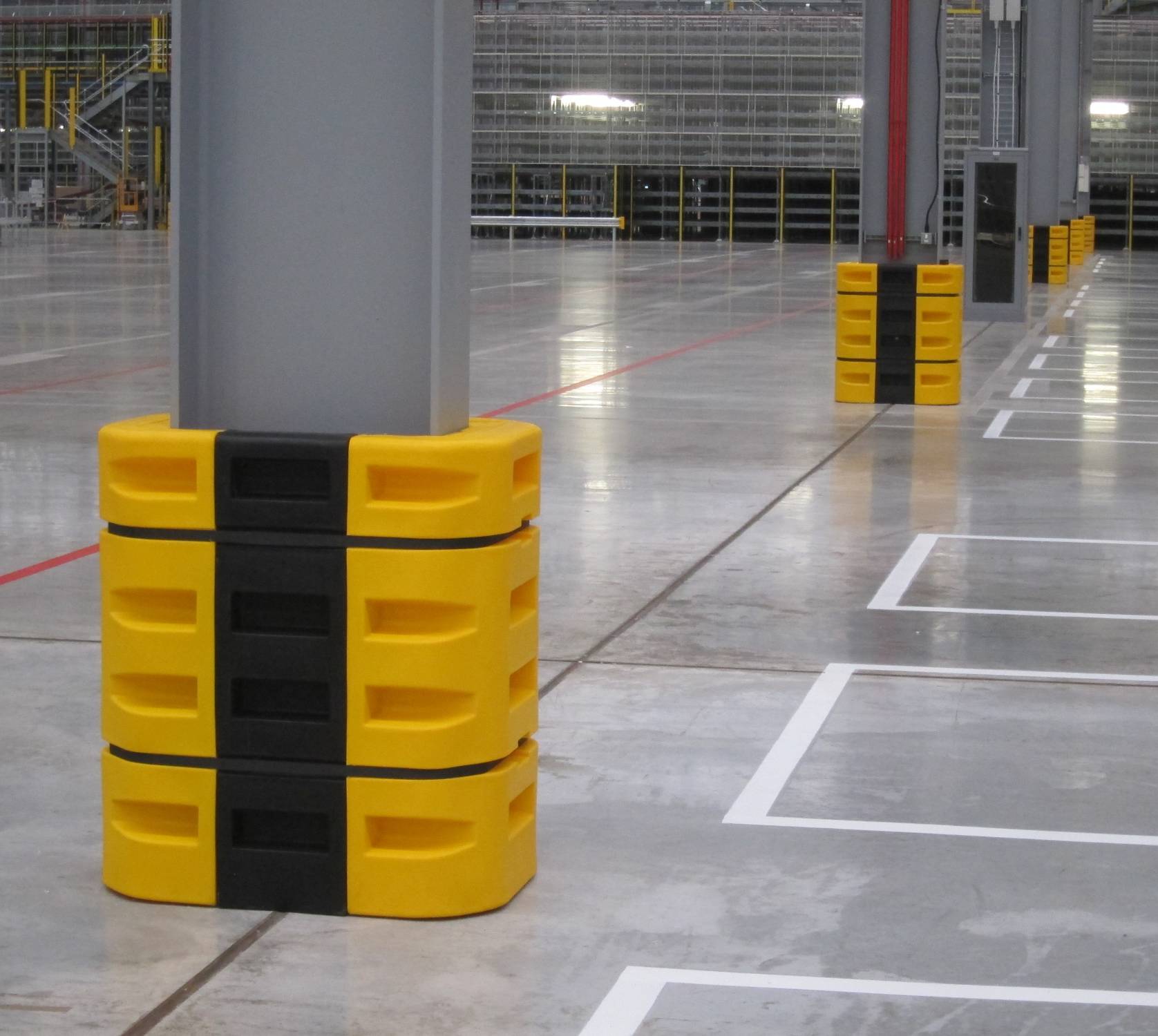

PolyWRAP Column Protector - Warehouse Column Protector: suitable for protection of structural columns and vehicles from damage.

  • Industrial Warehouses: Safeguard structural columns from HGV/MHE impacts, preventing damage to assets and ensuring worker safety.
  • Manufacturing Facilities: Protect columns from collisions with heavy machinery, maintaining a productive and safe working environment.
  • Loading Docks: Enhance safety during loading and unloading procedures by absorbing impacts and preventing damage to columns and vehicles.
  • Commercial Parking Lots: Provide effective protection against accidental collisions, minimizing damage to columns and vehicles in busy parking areas.

Description

PolyWRAP Column Protector - Warehouse Column Protector: designed to safeguard structural columns and vehicles from damage.


Features and benefits:

  • The air cushion impact energy-absorbing design reduces the risk of operator injury.
  • Stackable design ensures easy recognition by HGV and MHE operators.
  • Clam-shell design with a dimple and rib feature offers a 20 mm tolerance on steel column dimensions.
  • Secured by two black 25 mm, 250 kg rated ratchet action webbing straps.
  • Polyethylene mouldings can withstand a temperature range of -40 to +90 degrees.
  • Manufactured in the UK from medium-density polyethylene.
  • Designed and tested to withstand impacts in excess of 2.5 tonnes at 7 mph.
  • Optional steel skirting for fork and pallet impact.

General information

Color

Yellow

Black

Finish

Other

Bright

Material

Polyethylene

Shape

Other

Square

Length

650 mm

Width

650 mm

Height

1040 mm

Uniclass

Pr_35_90_43_13 Column guardsPrimary

CAWS

Q41/135 Proprietary protective barriers

Q41/135 Proprietary protective barriers

Specification data - Column guards

Material

Polyethylene.

Column protector width

650 mm.

Column protector height

1040 mm.

Colour

Yellow.

Black.

Fixings

Two 25 mm wide ratchet straps.

Temperature range:

-40°C to +90°C.

System accessories

Optional steel skirting for fork and pallet impact.

Configuration

PW-150.

PW-200.

PW-250.

PW-600.

PW-900.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

PolyWRAP Column Protector - Brandsafe Spec Sheet

PolyWRAP Column Protector - Brandsafe Spec Sheet
