"Safe Touch" low surface temperature convector.

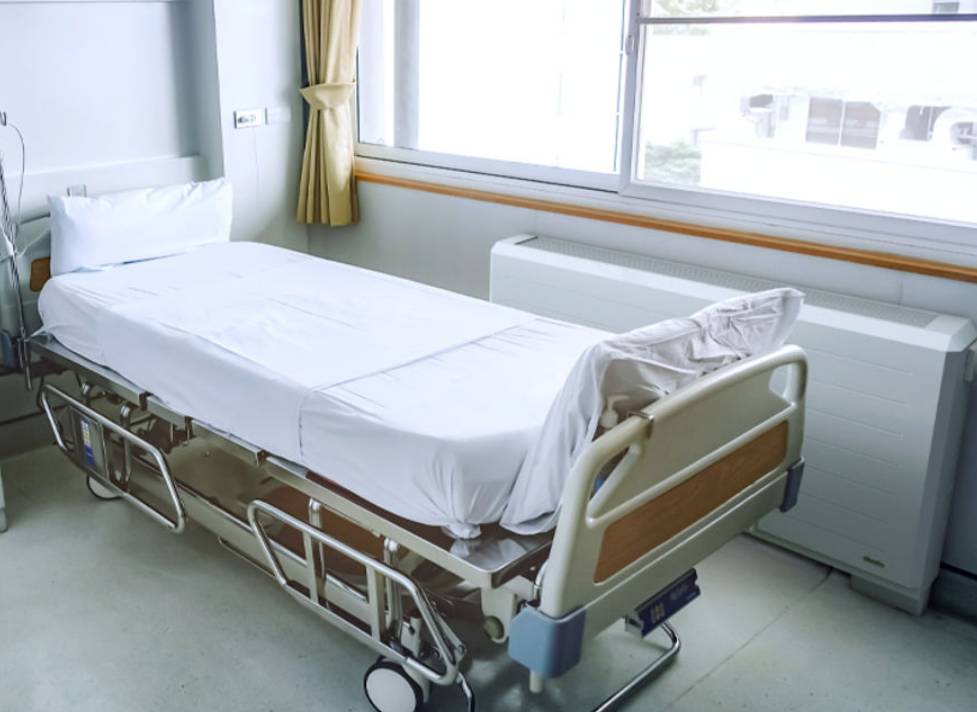

Suitable for the education, healthcare and the care sector.

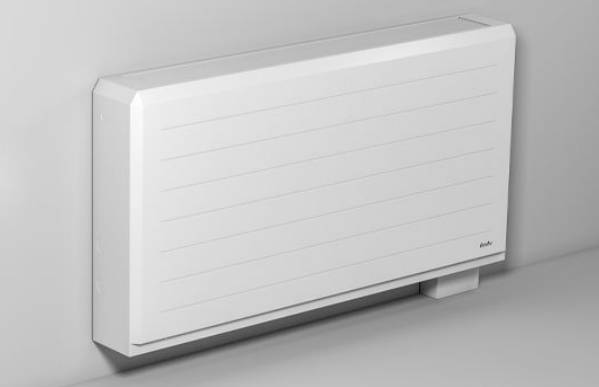

The PowerKon +ST is a strong single piece profile casing, made of 1.6 mm steel with 3 mm rib details for extra strength and durability. The essential component is the low water content PowerKon emitter, designed as a single water way emitter to maximize the thermal performance. It's tested in line with the BS EN 442 and also compliant with NHS DN4 requirement. The PowerKon +ST can be installed extremely quickly, thanks to its strone one-piece profiled casing. 1/2" BSP directional LPHW connections, wall/floor brackets and wall spacer are included. It is ideal for the eduction, healthcare and residential care sectors. Casing and bracketry coated with an anit-bacterial and scratch resistant epoxy powder, colored in RAL 9016, pure white. There are no joints in the casing to gather dirt, dust and potential bacteria. There are two floor mounted and two wall mounted models of the PowerKon +ST. The unit is flexible to use, thanks to its various heights, depths and lengths.
Features and benefits:
Color | Grey Guidance for specification option: RAL 9006 white aluminium. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 650 mm 850 mm 1050 mm 1250 mm 1450 mm |
Width | 120 mm 170 mm 220 mm |
Height | 500 mm 650 mm 800 mm |
Uniclass | |
CAWS | T90/477 Trench convectors T90/477 Trench convectors |
Standards | To BS EN 442. |
Third party certification | NHS DN4 compliant. |
Position | Wall mounted. |
Electrical supply | Single phase.Twin phase. |
Casing finish | Powder coated steel. |
Model | PowerKon ST. |
Casing | WTG (Wall Top Grille). WFG (Wall Front Grille). FTG (Floor Top Grille). FFG (Floor Front Grille). |
Width | 120 mm. 170 mm. 220 mm. |
Height | 500 mm. 650 mm. 800 mm. |
Length | 650 mm. 850 mm. 1050 mm. 1250 mm. 1450 mm. |
Grille finish | Epoxy powder, colored in RAL 9016. |
Country of product manufacture | Germany |
