Application

The PowerLogic PM5000 series meters are capable of essential cost management applications:

  • Cost allocation to aggregate energy consumption of all utilities (i.e., WAGES) and allocate costs per area, per usage, per shift, or per time within the same facility
  • Sub billing to charge tenants for individually measured utility (i.e., WAGES) usage
  • Bill checking to verify that the utility only charged for actual energy usage

The PowerLogic PM5000 series meters are also suitable for sub-metering applications, as the meters track real-time power conditions and monitor control functions, provide basic power quality values, and monitor equipment and network status in an effort to increase network reliability and power availability.

Description

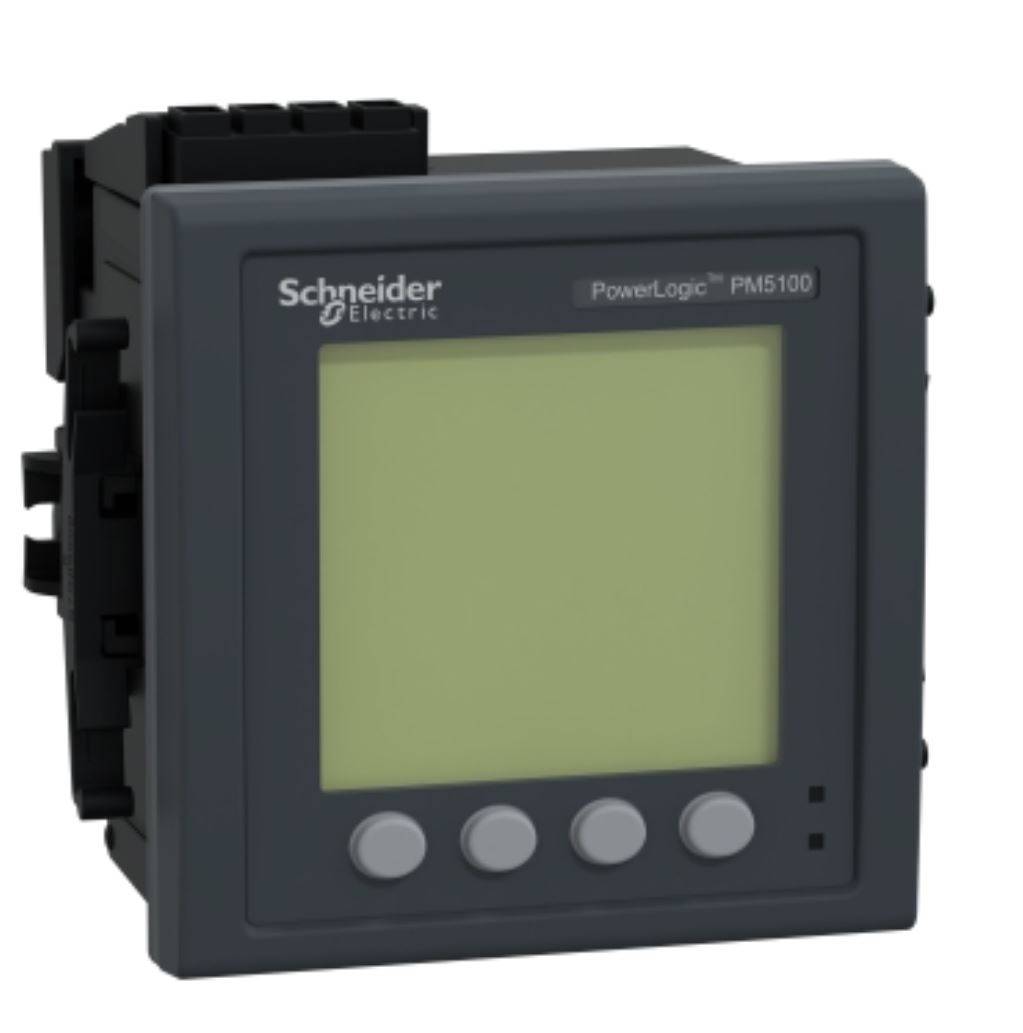

Compact, versatile meters for energy cost and basic network management applications.


Features and benefits:

  • Accuracy class 0.2S (PM5500 models) and 0.5S (PM5100, PM5300 models) for active energy metering
  • Compliance to regulations EN50470-1/3 (MID), IEC 61557-12, IEC 62053-21/22, IEC 62053-23
  • Dual Ethernet ports (PM5500 models) to daisy chain meters together - less wiring, simpler installation
  • Ethernet-to-serial gateway functionality
  • Onboard web pages (PM5500 models) for viewing real-time and logged information
  • Cyber security enhancements to help ensure data integrity
  • Data logging (PM5300, PM5500 models) locally in non-volatile memory ensures that information is not lost during a power or communications outage
  • Multiple tariffs (PM5300, PM5500 models) gives flexibility in the billing structure
  • Individual harmonics in addition to THD and TDD to help locate the source of disturbances
  • Graphical display with intuitive menu-driven navigation means information is easy to locate and read (optional remote display for PM5563 meters)
  • Compact design, two clips for mounting
  • 4 current inputs (PM5500 models)
  • Extended voltage range (direct connection up to 690 V L-L)
  • Real-time clock with battery back up.

- End users benefit

  • Comprehensive, consistent and superior performance with compliance to international metering standard IEC 61557
  • Precision metering and sub-billing thanks to energy metering compliance to IEC 62053-22 Class 0.5S to 0.2S
  • Help save on energy costs through demand logging with timestamp, alarms and relays
  • Billing flexibility with compliance to MID and support for up to 8 different tariffs
  • Improve electrical network management with power quality analysis features
  • Ease of use with intuitive menu-driven navigation and support for eight different languages
  • Complete WAGES monitoring due to four Digital Inputs and two Digital outputs (solid state)
  • Seamless integration with StruxureWare Power Monitoring Expert software

- Panel builders benefit

  • Ease of installation thanks to numerous design features means less time to install and more savings
  • Ease of programming due to an enhanced, intuitive, menu-driven graphical user-interface
  • Cost effectiveness for the price sensitive panel builder, as a single product or product family can meet the majority of requirements
  • Aesthetically pleasing offer to help boost the panel builders’ image and reputation
  • Simplified ordering for a comprehensive set of features in the best combinations - no feature overlap with option modules

- System integrators benefit

  • Ease of integration into larger systems and solutions with dual Ethernet and proper protocols, thus saving them time (and money)
  • Ease of setup thanks to the intuitive menu navigation on the graphical display, including phasor wiring validation, and onboard web pages
  • Cost effectiveness since a single product (or product family) that can meet the majority of system requirements.


CE conforming to IEC 61010-1 and CULus conforming to UL 61010-1.

General information

Color

Black

Shape

Square

Length

96 mm

Width

72 mm

Height

96 mm

Warranty description

18 months

Uniclass

Pr_80_51_51_22 Digital metering equipmentPrimary
Pr_80_51_51_23 Digital multifunction metering equipment

CAWS

V90/430 Electrical accessories

Specification data - Digital metering equipment

Display

Monochrome graphic LCD, 128 x 128 pixels.

Rated voltage

90–450 V a.c.
100–300 V d.c.

Current measuring range

50–8500 mA.

Rated frequency

45–65 Hz.

Metering functions

Current
Voltage.
Frequency.
Power factor.
Energy.
Active and reactive power.

Mounting

Flush-mounted.

Ingress protection (minimum)

IP54 display: Conforming to IEC 60529.
IP30 rear: Conforming to IEC 60529.

Outputs

One digital.

Type:

-

Manufacturer guidance

A variety of PowerLogic PM5000 units are available, please consult technical literature for details and insert requirements.

NominalSupplyVoltage

24 V a.c (±15 %).

Flame retardant

UL94-5VB.

Communications

Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V.
JBUS. Support: RS485.

Standard

UL 61010-1.
EN 50470-3.
EN 50470-1.
IEC 62053-22.
IEC 60529.
IEC 62053-24.
IEC 61557-12.
IEC 62053-23.
IEC 62052-11.
IEC 62052-31.

Network type

1P + N
3P + N
3P

Connections

Voltage circuit: screw terminal block4.
Control circuit: screw terminal block2.
Current transformer: screw terminal block6.
Input/output circuit: screw terminal block6.
RS485 link: screw terminal block4.

Sustainability data

Contains Red List materials

No

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

195 kg CO₂ eq/unit

Self declared

Guidance for specification option:

Life cycle assessment has been performed on the following life cycle phases: Materials and Manufacturing (M), Distribution (D), Installation (I) Use (U), and End of life (E).
