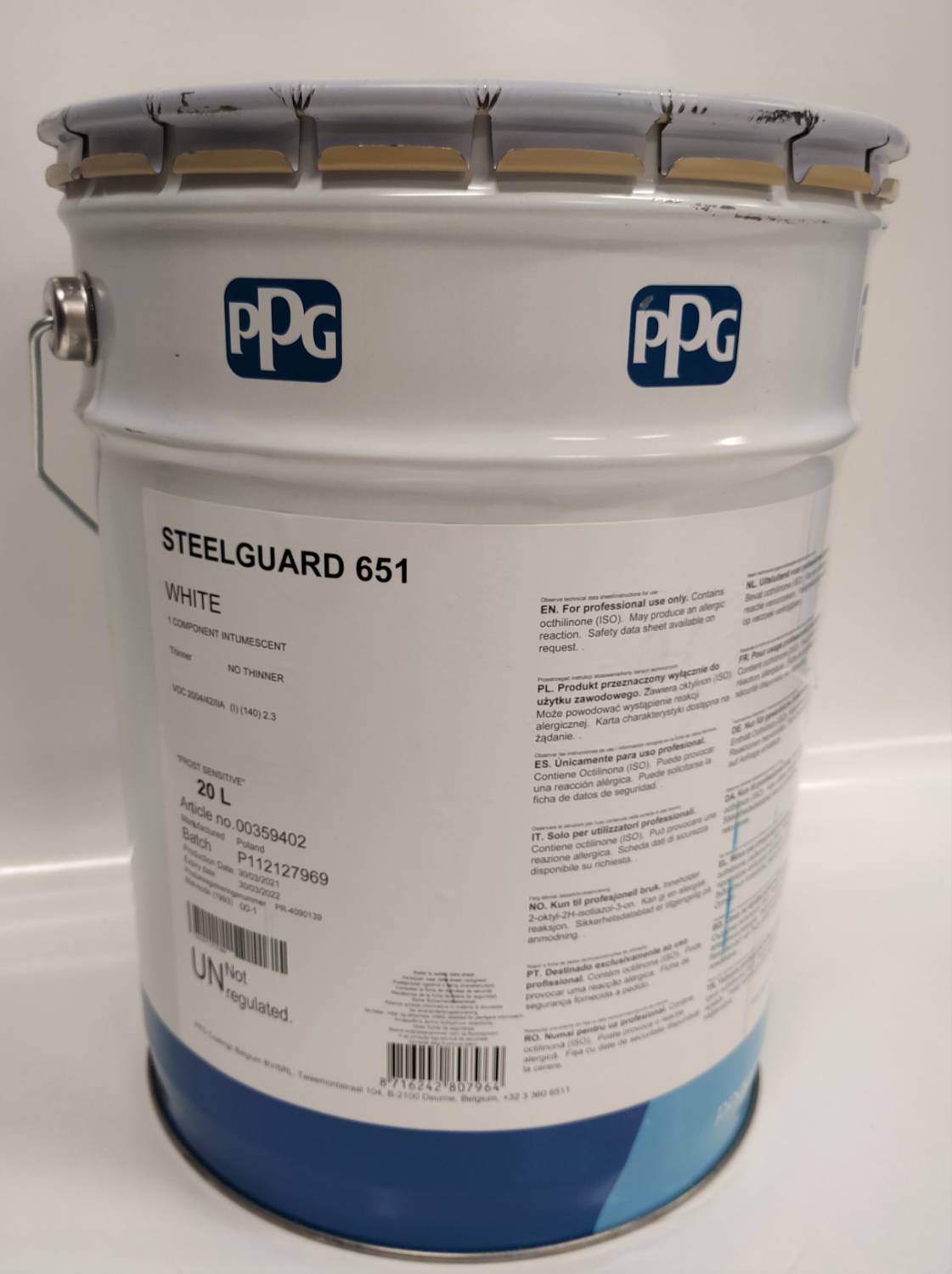

PPG STEELGUARD 651 Intumescent coating

Verified by manufacturer 4 months ago

Johnstone's Trade Paints - a brand of PPG Industries Third party certifications:
  • EPD

    EPD

    Certificate type

PPG STEELGUARD 651 is a one-component, thin-film, waterborne intumescent coating for fire protection of structural steelwork.

Jump to:
+44 (0)1924 354354 Website

Application

Cellulosic fire protection for structural steelwork.

Description

One-component, thin-film, waterborne intumescent coating for fire protection of structural steelwork.


Features and benefits:

  • Waterborne intumescent provides up to 120 minutes protection from cellulosic fires.
  • On-site application, Up to 700 µm (28.0 mils) DFT in a single coat.
  • Suitable for C1, C2 and C3 internal environments (ISO 12944); for dry internal (C1) environments no topcoat is required.
  • Tested and assessed to EN 13381-8, BS 476-20 and -21 and GB 14907.
  • CE marked product, ETA 15/0524.
  • Assessed to ETAG 018-2 for durability classifications Z1, Z2 and Y.


The following Johnstone’s Trade topcoats are approved for use over PPG STEELGUARD™ 651 at an applied DFT of 50μm for internal environments only.



  • Johnstone’s Trade Aqua Waterbased Satin or Gloss.


General information

Color

White

Finish

Matt

Material

Water-based

Guidance for specification option:

Intumescent coating.

Water-borne

Manufacturer guidance

Waterborne

Shape

Formless

Uniclass

Pr_35_31_68_43 Intumescent protective coatingsPrimary

CAWS

M60/18 Special coating

M61/110 On-site coating to primed steel

M61/115 On-site coating to galvanized steel

M61/120 On-site coating to existing steel

M61/140 On-site overcoating to existing steel

M61/150 Off-site coating to unprimed steel

M61/160 Off-site coating to primed steel

M61/170 Off-site coating to galvanized steel

Specification data - Intumescent protective coatings

Composition

Water-based.

Colour

White.

Standard

Tested and assessed to EN 13381-8, BS 476-20 and -21 and GB 14907.

Formulation

Water-borne.

Volume solids

70%.

Compatibility

Johnstone’s Trade Aqua Waterbased, Satin.

Johnstone’s Trade Aqua Waterbased, Gloss.

PPG AQUACOVER 45.

Manufacturer guidance

PPG and Johnstone’s Trade topcoats are approved for use over PPG STEELGUARD™ 651 at an applied DFT of 50 μm for internal environments only.

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

3.91 kg CO₂ eq/m²

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration BREG EN EPD No: 000354 PPG Steelguard 651
