Pre-cast Concrete Treads

Verified by manufacturer 2 months ago

Lazenby

Handmade pre-cast concrete treads for internal and external use. Variety of different styles available including flat treads, treads & risers, L shaped treads & hollow sleeves to encase a bracket.

Jump to:
+44 (0)1935 700306 Website

Application

Bespoke moulds are created which concrete is then poured into and finished. The treads are then shipped to site where they are laid over a supporting structure as a capping system. Contrasting colour nosings can be incorporated into the tread.

Description

Handmade pre-cast concrete treads for internal & external use.


Features and benefits:

  • Available with a polished or textured, anti-slip face.
  • 40mm thickness
  • Can be bedded with a simple adhesive
  • Pre-sealed with a penetrative sealer.
  • Includes cast in lifting socket to BS 5080.
  • Available in 15 standard colours as well as the option to create bespoke colours.
  • Provides a complimentary finish to a polished concrete floor allowing a continuation through a staircase.
  • All sizes are created bespoke to perfectly fit each design
  • Nosing strips can be embedded into the treads
  • Landing/half landing slabs can also be created
  • Typically laid over a rigid sub base such as steel or concrete
  • Water based low VOC sealant is used

General information

Color

Grey

Brown

Purple

Black

Green

Show more

Finish

Smooth

Guidance for specification option:

Polished.

Textured

Guidance for specification option:

Anti-slip.

Material

Concrete

Guidance for specification option:

C28/35 to C50 self-compacting concrete to BS EN 206-1 and BS 8500-2

Shape

Rectangle

Kite

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_30_90_18 Concrete step unitsPrimary

CAWS

L30/20 Stairs

L30/270 Stairs

L30/30 Proprietary stairs

L30/310 Proprietary stairs

Specification data - Concrete step units

Dimensions

-

Thickness (minimum)

40 mm.

Colour

August grey.

Azure grey.

Chestnut.

Coast.

Dusk.

Ebony.

Forest.

Fossil.

Marble.

Midnight.

Platinum grey.

Sahara.

Silver sleet.

Tempest.

Special order.

Guidance for specification option:

Insert RAL colour requirement.

Reinforcement

High bond bars.

Guidance for specification option:

Standard.

Special order.

Guidance for specification option:

Insert requirement, contact manufacturer for information.

Sealer

Not required.

Gloss.

Matt.

Satin.

Materials

C28/35 to C50 self-compacting concrete to BS EN 206-1 and BS 8500-2.

Pendulum test value

>36.

Manufacturer guidance

(Wet pendulum test).

Edges

Square.

Surface finish

Smooth.

Guidance for specification option:

Polished.

Textured.

Guidance for specification option:

Anti-slip.

Sizes

Guidance for specification option:

Insert reference, available up to 1200 x 1200 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Guidance for specification option:

C28/35 to C50 self-compacting concrete to BS EN 206-1 and BS 8500-2

Manufacturing plant location

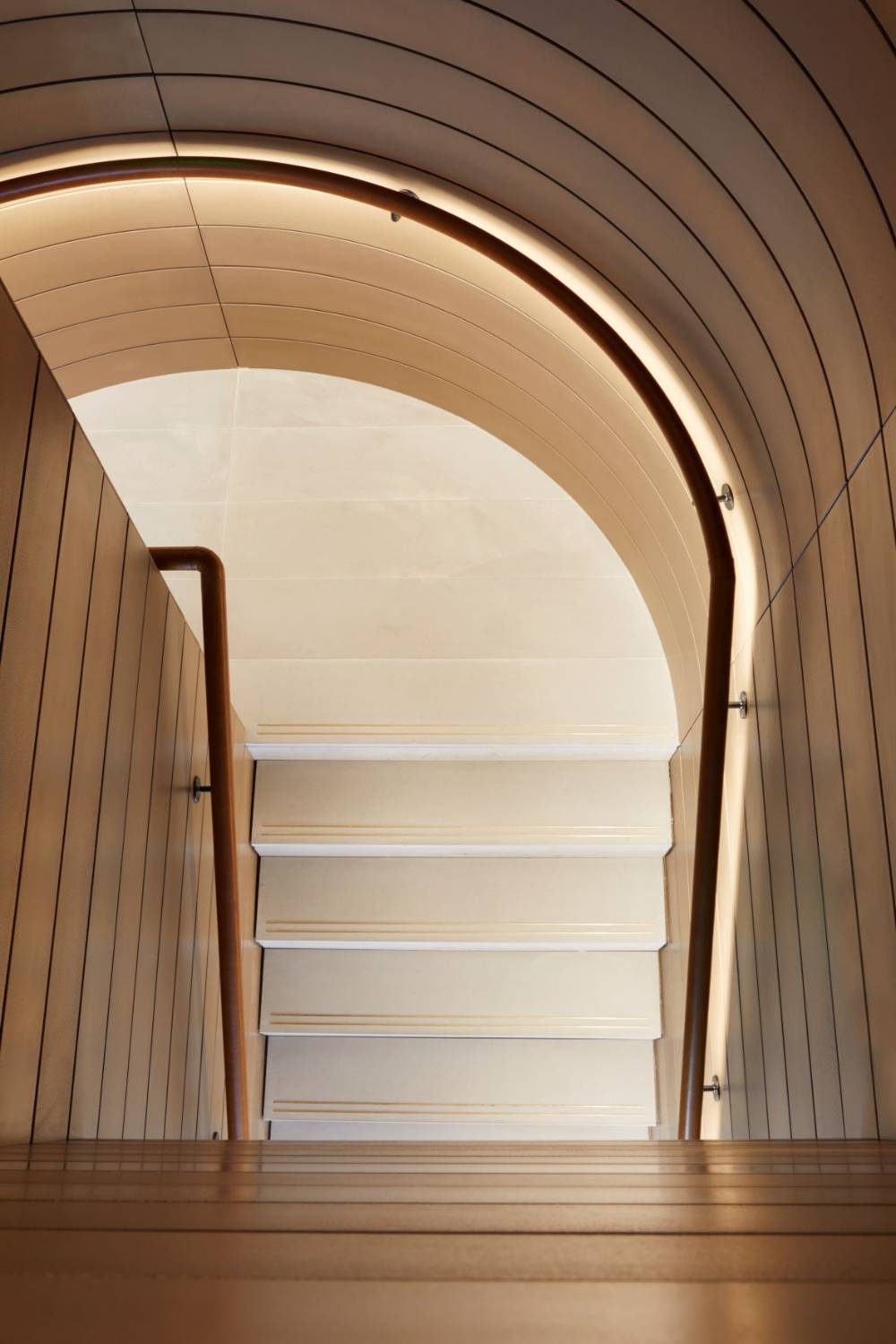

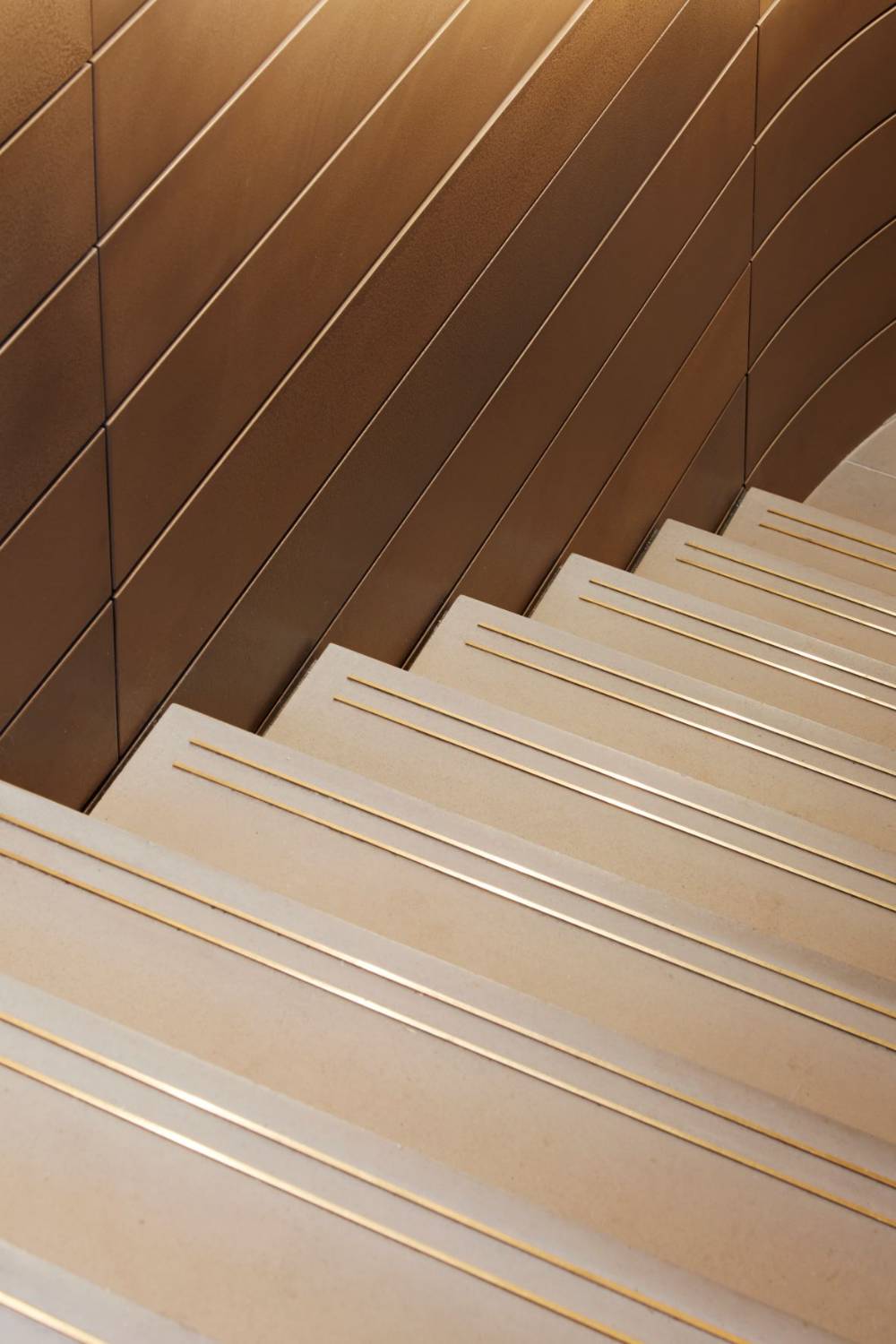

Case studies

Hawley Wharf

Hawley Wharf
