Liquid gas membrane.
Horizontal substrates, such as pile caps, require a single one-coat application at a minimum WFT (Wet Film Thickness) of 1 mm. Vertical substrates should have two coats applied.
Hydroprufe LG should be applied using a suitable brush, roller, or airless spray equipment and where a mechanical key is required to promote adhesion to subsequently cast concrete, then a quartz aggregate should be broadcast into the wet coating. Once the coating has dried, then the excess aggregate should be swept or blown from the surface.

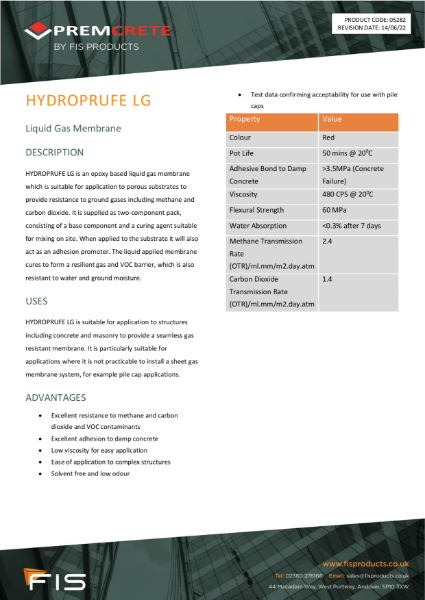

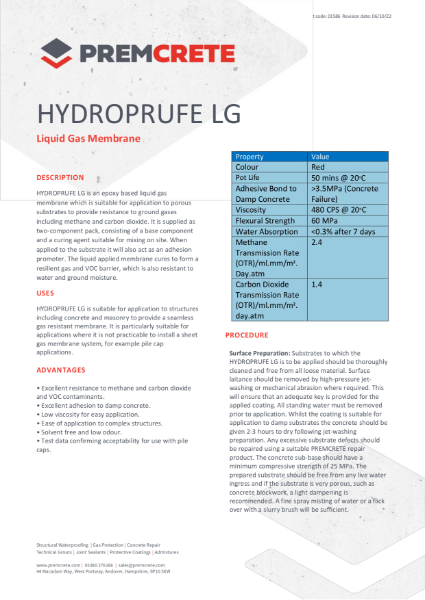

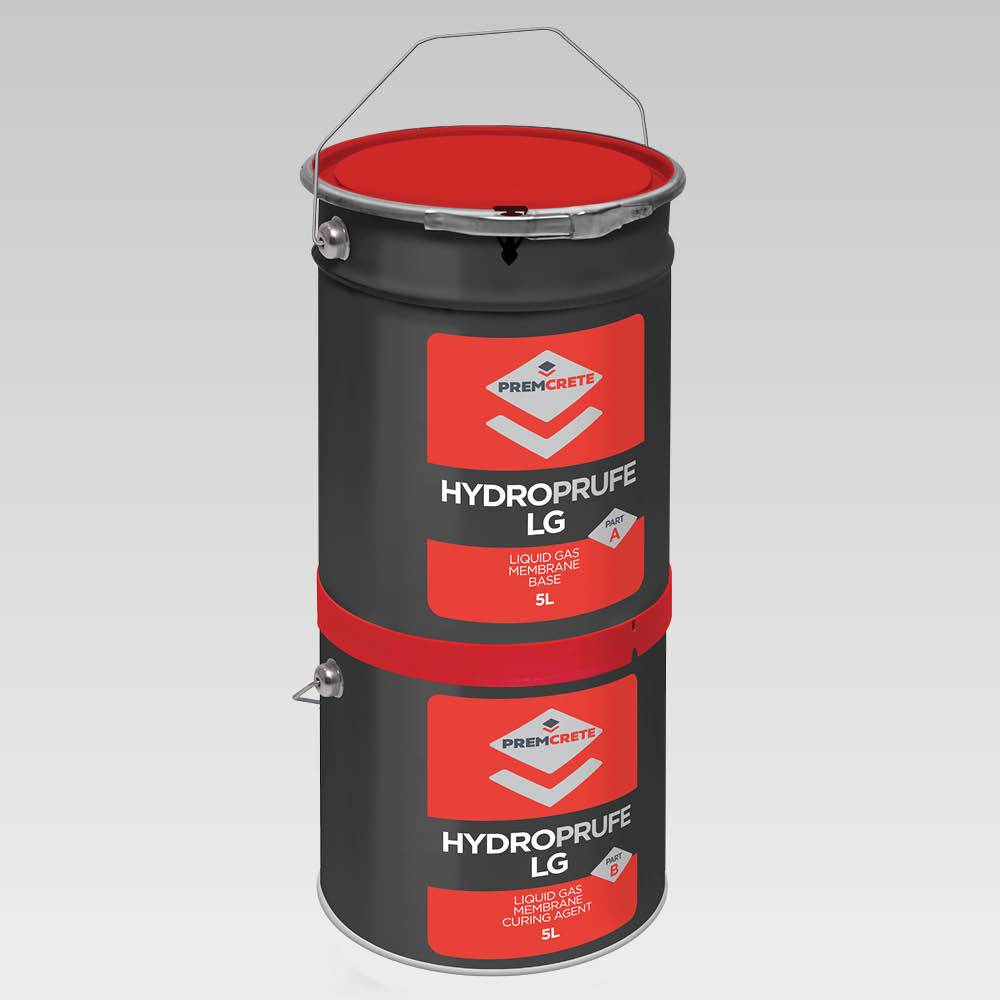

HYDROPRUFE LG is an epoxy based liquid gas membrane which is suitable for application to porous substrates to provide resistance to ground gases including methane and carbon dioxide. It is supplied as two-component pack, consisting of a base component and a curing agent suitable for mixing on site.
When applied to the substrate it will also act as an adhesion promoter. The liquid applied membrane cures to form a resilient gas and VOC barrier, which is also resistant to water and ground moisture.
Color | Red |
Finish | Epoxy |
Material | Epoxy |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | J30/10 Cold-applied damp-proofing J30/130 Cold-applied damp-proofing |
Product range |
Modifier | Polymer modified. |
Curing time | 24 hours (at 20°C). |
Methane transmission rate | 30 ml/M²/day. |
Elongation at break | 100%. |
Water resistance | 0.6 bar. |
Adhesion to concrete | 1 N/mm². |
Application temperature | 5–30°C. |
