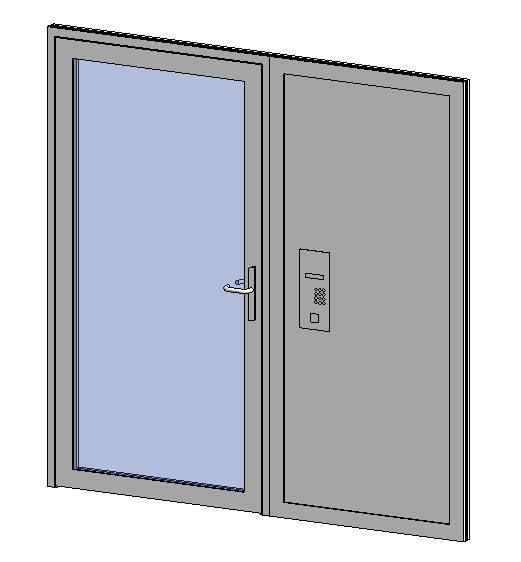

Premier Vision - Single Door + Side Panel - Steel Security Door - Communal Entrances

Verified by manufacturer 3 months ago

316 Stainless Steel - Fully Glazed Door Leaf

Martec Engineering Group Ltd Variant:
Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

External, single leaf, open out, rebated and fully glazed thermally broken steel security doorset. Secured by Design certification and complete installation rated to STS 202 level 2.

Jump to:
BOS
 +44 (0)7495693919 Website

Application

External steel security doorset.

Description

External, single leaf, open out, rebated and fully glazed thermally broken steel security doorset with multipoint lock – operating either as manual, entry control or fully automatic (all three options offering BS EN 179 means of escape as standard – upgradable to BS EN 1125).


With or without side/ top screens, including either glazed or solid insulated panels. Optional fully integrated entry control panel. Complete installation rated to STS 202 level 2 with all elements covered by a single Certisecure certificate meeting Secured by Design communal entrance door specification.


Features and benefits:

  • Side panel can optionally include integrated entry control panel.
  • Complete installation rated to STS 202 level 2 with all elements covered by a single Certisecure certificate meeting Secured by Design communal entrance door specification.
  • Powder coated to any RAL Classic colour.
  • Whole unit U-Value: 1.9 W/m²K.
  • The infill panels can either be a double-glazed glass unit or insulated steel sandwich panel. Double glazed unit comprised of attack glass outer pane to BS 6262: P8B to BS EN 356; 1.2.3 to LPS 1270; 1B1 to EN12600.
  • The ironmongery is a Fail-Secure and Fail-Safe multipoint lock with stainless steel handles inclusive of TS 007 3* euro cylinder for manual override.

General information

Color

Other

Guidance for specification option:

Powder coated to any RAL Classic colour.

Finish

Powder-coated

Polished

Material

Steel

Stainless steel

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

On all moving parts.

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary
Pr_30_59_24_85 Stainless steel doorsets

CAWS

L20/45 Doors

L20/480 Doorsets

L20/280 Doors

L20/55 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single-leaf, single-action.

Doorset size

Guidance for specification option:

Bespoke consult manufacturer and insert requirements.

Performance

-

Thermal

1.9 W/m²K.

Intruder resistance

-

Minimum requirement

Secured by Design certification. To STS 202, BR2.

Application

Both sides.

Conformity

Certification by accredited third-party certification body. Type testing not permitted.

Frame

-

Material

316 stainless steel.

Threshold

As drawing.

Perimeter seals or inserts

Guidance for specification option:

Consult manufacturer and insert requirements.

  • Dual, internal and external rebate seals to opening leaf.
  • Mastic and compression tape seal to glazing/panels, mastic to suit RAL of doorset. Optional dry glaze gasket - black.
  • Sealing to structure to suit project, but generally; mastic, insulation and EPDM/air tightness tape.

Finish

-

Texture

Polished.

Guidance for specification option:

Grain 220–240.

Colour

Silver.

Installation fasteners

Guidance for specification option:

Suitable fixings for substrate with locations based on Martec’s certification.

Door leaf

-

Panel details

Fully glazed.

Material

316 stainless steel and glazing.

Guidance for specification option:

  • Frame: Thermally broken 316 stainless steel profiles, polished with grain 220–240.
  • Glass: DGU - Martec attack specification outer pane, inner pane to suit project requirements.

Perimeter seals

Guidance for specification option:

Consult manufacturer and insert requirements.

  • Dual, internal and external rebate seals to opening leaf.
  • Mastic and compression tape seal to glazing/panels, mastic to suit RAL of doorset. Optional dry glaze gasket - black.
  • Sealing to structure to suit project, but generally; mastic, insulation and EPDM/air tightness tape.

Glazing

-

Type

In accordance with BS 6262-4, clear double safety glazing.

Guidance for specification option:

Martec attack glass specification outer pane to BS 6262. Performance ratings:

  • P8B to BS EN 356.
  • 1.2.3 to LPS 1270.
  • 1B1 to EN 12600.

Finish

-

Texture

Polished.

Guidance for specification option:

Grain 220–240.

External colour

Silver.

Internal colour

Silver.

Accessories

Not required.

Fully integrated entry control.

Guidance for specification option:

Optional fully integrated entry control concealed within insulated steel sandwich panel, no back box visible to interior. Concealed cable ways.

Fixed side screens

Not required.

Fully glazed side screen.

Guidance for specification option:

  • Frame: Thermally broken steel profiles polyester powder coated; or, thermally broken 316 stainless steel profiles, polished with grain 220–240.
  • Glass: DGU - Martec attack specification outer pane, inner pane to suit project requirements.



Insulated steel sandwich panel, side screen.

Guidance for specification option:

  • Steel sandwich panel: Thermally broken steel polyester powder coated; or, 316 stainless steel, polished with grain 220 – 240.

Fixed top screens

Not required.

Fully glazed top screen.

Guidance for specification option:

  • Frame: Thermally broken steel profiles polyester powder coated; or, thermally broken 316 stainless steel profiles, polished with grain 220–240.
  • Glass: DGU - Martec attack specification outer pane, inner pane to suit project requirements.

Insulated steel sandwich panel, top screen.

Guidance for specification option:

  • Steel sandwich panel: Thermally broken steel polyester powder coated; or, 316 stainless steel, polished with grain 220 – 240.

Ironmongery

Fail-Secure and Fail-Safe three-point concealed rebate lock with stainless steel handles/pull pads and escutcheon.

Guidance for specification option:

  • Inclusive of Sold Secure Diamond Standard/TS 007 3* euro cylinder for manual override.
  • Meets BS EN 179 means of escape requirements. Upgradable to full panic BS EN 1125 means of escape with inclusion of horizontal push bar.
  • Optional Fail-Unlocked and Fail-Safe configuration, depending on building fire strategy.
  • BS EN 179 rating 3_7_6_B_1_3_4_2_A_B for high frequency of use, cycle tested 200,000 times.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Steel

Stainless steel

Glass

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit

Revit 2017

1

Third party certifications

Secured By Design

Secured By Design

STS 202 BR 2 Premier Vision
