Printed Walls And Ceilings - Custom printed large scale sheets

Verified by manufacturer 2 months ago

Barrisol

Stretch fabric membrane printed walls and ceilings.

Jump to:
+33 3 89 83 20 20 Website

Application

Stretch fabric membrane printed walls and ceilings.

Description

Barrisol® technical walls and ceilings can be used to enhance the decor of any space. Stylish and completely adaptable, Barrisol®’s wide variety of applications is further increased by the ability to print directly on the material surface thanks to high definition printing (1080 dpi up to 5 m) and in millions of colours. Patterns, reproductions or photographs can all be printed on the canvas according to your own desires.


Barrisol Print your Mind® sheets offers a wide variety of interior design application options and are great tools for optimizing acoustics. 3D creations in Barrisol Print your Mind® find their place no matter the creation of volumes, the highlighting of a theme, a tone, a character or a brand by its visual identity are envisaged.


Thanks to the backlighting, Barrisol® canvases reveal all their beauty and push the boundaries of interior design even further by combining aesthetics, elegance and light features. Barrisol Print your Mind® sheets, when used in combination with an integral lighting system, help to enhance the uniqueness of any space.


Features and benefits:

  • Possibility of integrating lighting, heating, air conditioning and sound systems.
  • Barrisol® : Fire classification B-s1, d0.
  • Artolis® : Fire classification B-s1, d0.
  • Gts® : Fire classification A2-s2, d0 (coated).
  • 100% recyclable.
  • Biosource range.
  • Biodegradable range.
  • CE certified with printing.
  • Seven picolitres by m², solvent-free printing.
  • The maximum print width is 4.95 m seamless (depending on materials).
  • Acoustic: αw = up to 1.0 depending on the materials.
  • Luminous (maybe backlit).
  • Acoustic and Luminous (Decibel d’or 2014).
  • Extensible ink.
  • Speed/ cleanliness of installation.
  • Membranes remountable and removable at will.
  • Lightweight.

General information

Color

White

Beige

Black

Blue

Bronze

Show more

Finish

-

Manufacturer guidance

printed vinyl

Material

Vinyl

Guidance for specification option:

Biosourced Vinyl

Shape

Circle

Oval

Triangle

Square

Rectangle

Show more

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Ss_30_25_22_30 Fabric membrane ceiling systemsPrimary
Pr_35_57_22_88 Textile roll coverings

CAWS

H90/140 Internal single layer fabric system

M52/110 Wallcoverings

M52/10 Wallcoverings

Specification data - Fabric membrane ceiling systems

Ceiling support

BMS 340/01.

BMS 340/11.

BMS 340/15.

BS 350/01.

BS 350/11.

BS 350/21.

BS 350/23.

Ceiling fabric

Stretch fabric membranes.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.82 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Barrisol Print your Mind

Barrisol Print your Mind

Case studies

Barrisol Printed Light® - Hotel W by Jose Andres - Mexico

Barrisol Printed Light® - Hotel W by Jose Andres - Mexico

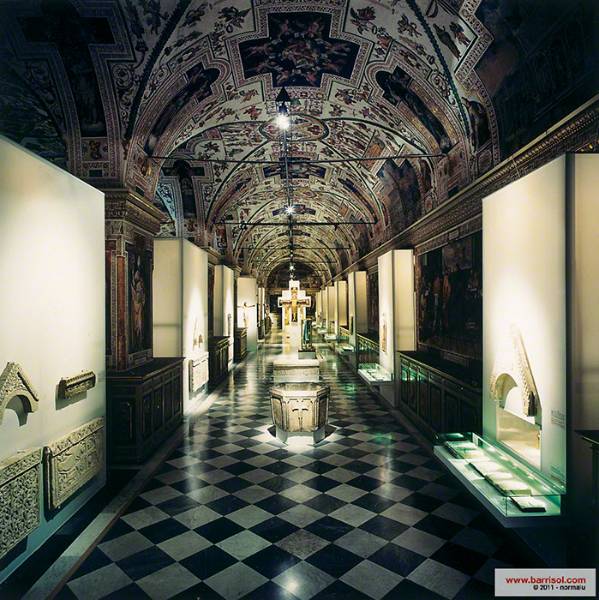

Barrisol Printed Light® - Vatican exposition

Barrisol Printed Light® - Vatican exposition

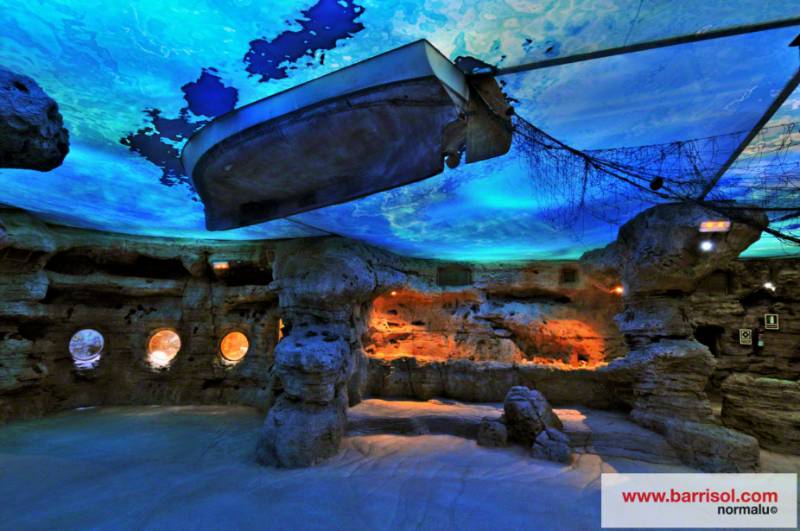

Barrisol Print your Mind® - Aquarium of Palma de Mallorca - Spain

Barrisol Print your Mind® - Aquarium of Palma de Mallorca - Spain

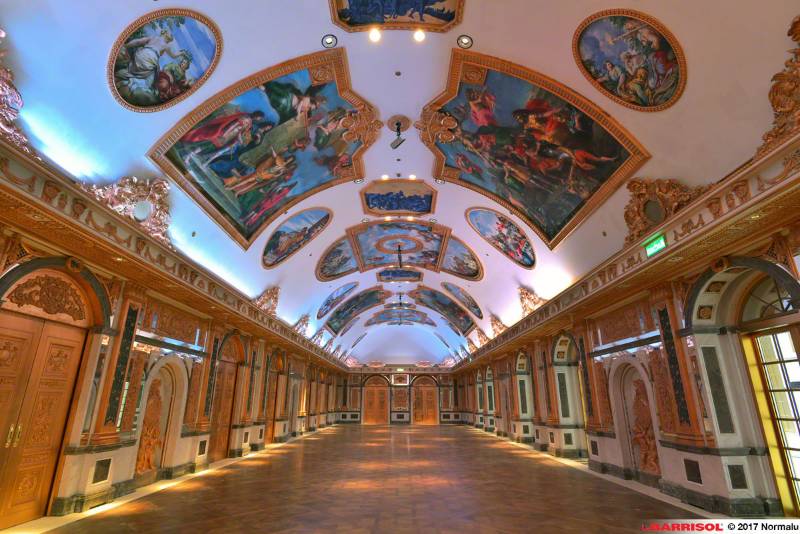

Barrisol Print your Mind® - Casino The 13 - Macau

Barrisol Print your Mind® - Casino The 13 - Macau
