Prism Stand-out Mirror
Verified by manufacturer over a year ago
Premium stand-out mirror system with internal storage space for dispensers.
Application
Washrooms, especially where space is at a premium.
Description
Innovative, multi-functional design, conceived to meet both convenience and style.

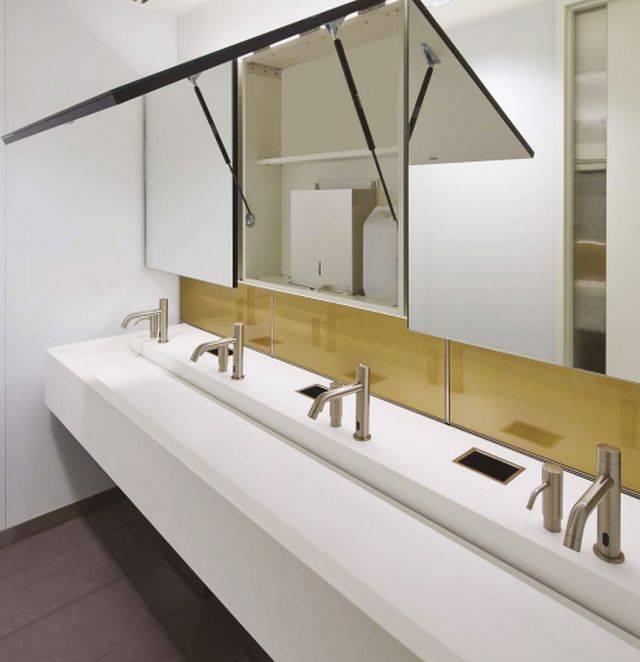

Mirror units help to declutter the vanity space by offering an attractive, concealed storage area for paper towels and soap dispensers, which can quickly and safely be replenished. In this way, Prism units save both time and floor space.
Access is effortless, thanks to the heavy duty hinges and gas struts and the overall design is sure to complement any scheme's interior styling.
General information
Shape | Rectangle Circle |
Color | Silver White |
Material | Medium density fibreboard (MDF) Glass |
Uniclass | |
CAWS | N10/270 Mirrors |
Product range |
Specification data - Glass mirrors
Classification data | |
Materials and standards | |
Materials | Medium density fibreboard / Safety glass. Guidance for specification option:
|
Dimensions | As drawing. Guidance for specification option: Insert reference. |
Thickness | 6 mm. |
Backing | Silvered to give maximum reflection. |
Frame | |
Material | None. Hardwood. Metal. |
Finish | Not required. Lacquered. Guidance for specification option: Hardwood only. Polyester powder coated. Guidance for specification option: Metal only. PVD. |
Colour | Manufacturer guidanceInsert requirements. |
Edges | |
Treatment | Safety rounded. |
Profile | Manufacturer's standard. |
Integral accessories | Accessible front panel to which mirror is bonded, fixed at top with butt hinges, gas-strut supports and secured with sprung cam lock as standard. Includes specialist housing for accessories/ dispensers where required. |
Accessories | Not required. Bespoke mirror panel shape. Etched text or icons on reverse side of mirror to indicate accessory positions. Guidance for specification option: Insert requirements. Heavy duty lift-off clips. |
Product Reference | Prism Stand-Out Mirror |
Operation | Heavy duty lift-off clips. Hinged at top with gas struts. |
Shadow colour | Manufacturer guidanceInsert requirements. Manufactured from 18 mm-thick medium density fibreboard (MDF) faced in high pressure laminate (HPL) and balanced. |
Literature
Prism Stand Out Mirror
