Pro-clad Magnesium Oxide Backed Brick Cladding

Verified by manufacturer 11 months ago

Taylor Maxwell Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Magnesium oxide backed brick cladding.

Jump to:
0203 794 9377 Website

Application

External façade installations. The system can be applied to various substrates including masonry, timber and steel-framed structures.

Description

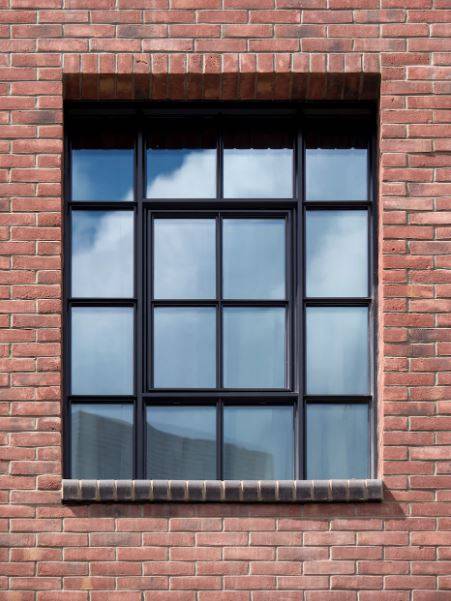

Magnesium oxide backed cladding system is a suitable solution for schemes where the brick façade system needs to be an exact match to adjoining traditionally built brickwork and can be used as a total or partially clad solution to achieve a brick cladding wall.


The BBA assessed two cladding panel designs attached to various structures via timber battens to produce the external skin of a building. The certificate (17/5475) only covers the durability of the bond between the brick facings and the magnesium oxide panels. No assessment has been made of the properties of the panels to which the brick slips have been bonded (see certificate 16/5328) or the framework used to support the panels.


The surface of this brick cladding system consists of brick slips and mortar, both of which are inorganic and therefore non – combustible. The backing panel achieves a rating of A1 when classified in accordance with BS EN 1SO 13501-1: 2002.


Features and benefits:

  • The brick slips panels are made from bricks to BS EN 771-1 : 2011.
  • The cladding panels are based on 9 mm thick magnesium oxide boards, manufactured to a defined specification.
  • The bonding agent is Brick-fix 3-1, a two-part gap filling epoxy adhesive covered by BBA Certificate 16/5328.
  • The system can be applied to various substrates including masonry, timber and steel-framed structures.
  • The brick cladding systems are versatile and can be manufactured using any standard facing bricks or an extensive range of purpose made brick slips.
  • Materials can either be collected from site or sourced independently and panels can be manufactured to suit stone, bricks or other external finishes including glazed bricks.
  • Brick slips are set into a steel template or jig that ensures accurate alignment, giving the appearance of seamless continuous brickwork.


Systems:

The fabricated panels are supplied in various sizes/designs to enable entire fascia's to be constructed including:

  • Six course panels,
  • Four course panels,
  • Soffit panels,
  • Corner panels,
  • Panels incorporating window jambs,
  • Standalone window jamb panels.


General information

Color

Other

Finish

Other

Material

Brick

Steel

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H20/150 Sheet cladding (attached to metal support systems)

H20/10 Sheet cladding

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Breather membrane

-

Material

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Secondary support structure

Stainless steel carrier rails.

Timber carrier rails.

Masonry structure.

Cavity fire barriers

-

Horizontal

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Vertical

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Cladding panels

-

Material

Magnesium oxide backed brick cladding.

Panel joints

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Reveals

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Panel size

Guidance for specification option:

Consult manufacturer and insert requirements.


The fabricated panels are supplied in various sizes/designs to enable entire fascia's to be constructed including:

  • Six course panels,
  • Four course panels,
  • Soffit panels,
  • Corner panels,
  • Panels incorporating window jambs,
  • Standalone window jamb panels.


Adhesive

Brick-Fix 3-1.

Guidance for specification option:

Epoxy adhesive used for bonding cut bricks and pavers and the fixing of brick slips to cast concrete structural units, stainless steel or powder-coated lintels, cement-bonded particle board or GRP substrates under factory conditions. It may also be used on site for the replacement of damaged brick slips.

Colour

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Sustainability data

Contains Red List materials

No

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Pro-clad Magnesium Oxide Backed Brick Cladding - 17/5475

BBA Agrément Certificate

BBA Agrément Certificate

Brick-Slip Adhesive - 16/5328
