Pro Clima Kaflex - Cable Grommet

Verified by manufacturer 5 months ago

KAFLEX duo

Pro Clima Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

A range of airtight cable and pipe sealing grommets.

Jump to:
+44 (0)1228 711511 Website

Application

Internal or external roofs, walls and floors on cables and pipes of 5–12 mm diameter. The grommet will stick to any wind or airtight membrane, smooth timber, planed or painted timber, wood-based panel or board, concrete, metal and plastic. The end of the cable or pipe must be accessible so it can be fed through the grommet.

Description

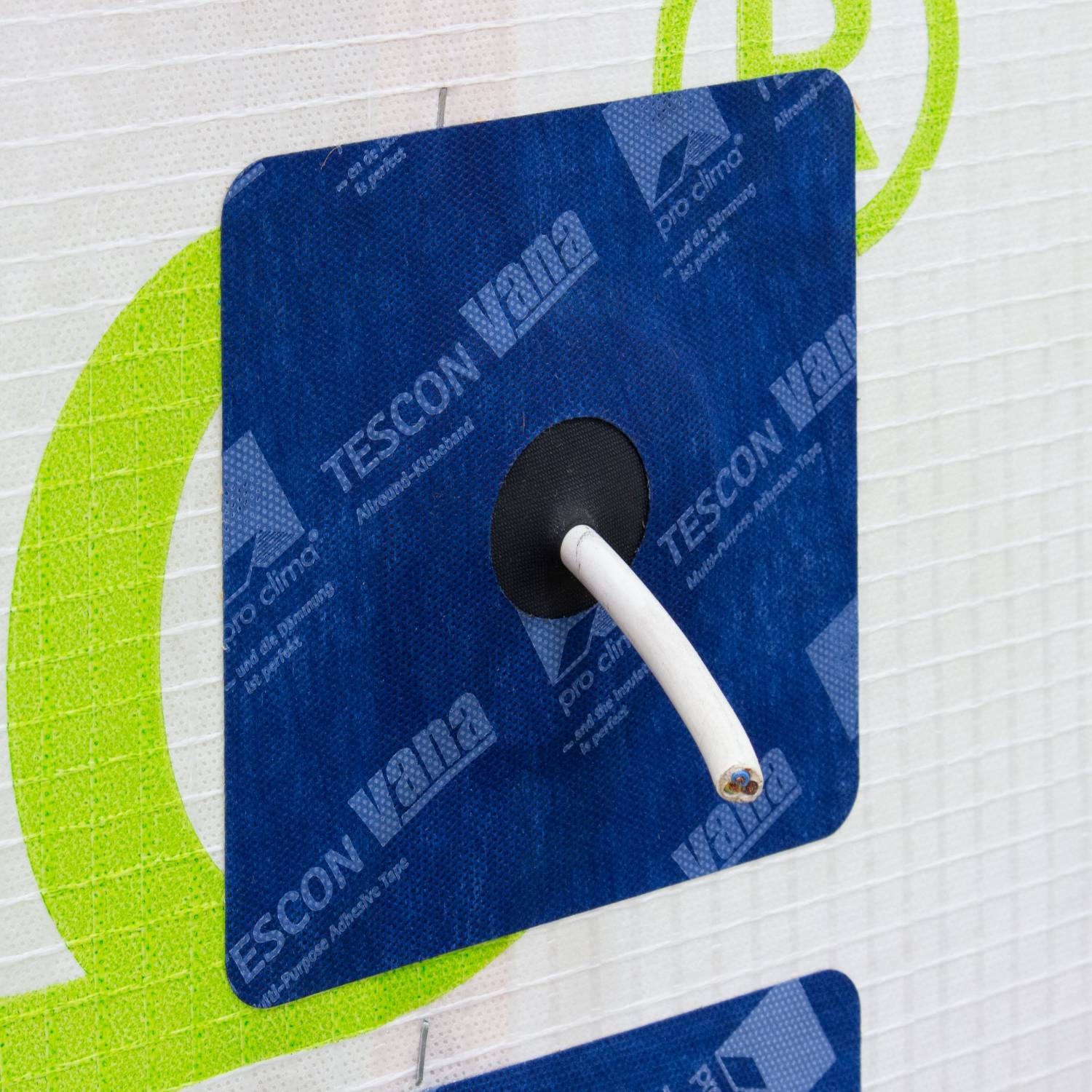

Pro Clima Kaflex is a flexible heat-resistant rubberised pipe and cable grommet supplied as either a self-adhesive patch with an integrated grommet or as a 150 mm square rubber grommet that is sealed with tape. It creates a flexible airtight seal around cables and pipes so that they can safely penetrate a building’s airtight layer.


Pro Clima Kaflex is compatible with 5–12 mm diameter cables and pipes. Versions are available for sealing single, double and multiple cables and pipes in one. Kaflex uses Tescon Vana as the adhesive. This is a tape that has been 3rd party tested and proved to remain airtight for at least 100 years.


Features and benefits:

  • Does not stick to the cable/ pipe.
  • Versatile and adaptable.
  • No expanding foam required.
  • Time saving; the self-adhesive backed Kaflex grommets mean that cables and pipes can be permanently sealed quickly.
  • Flexible EPDM rubber allows the cables and pipes to be repositioned after installation without compromising the airtight seal.
  • Kaflex Multi can airtight seal up to 16 cables and pipes in one grommet, reducing the number of potential air leakage points.

General information

Color

Black

Material

EPDM

Shape

Square

Warranty description

Ten year

Uniclass

Pr_65_70_12_18 Conduit and cable-sealing grommetsPrimary

CAWS

P31/40 Sealing around services

P31/710 Sealing

Specification data - Conduit and cable-sealing grommets

Description

Airtight cable and wire sealing grommet.

Manufacturer

Pro Clima.

Product reference

Pro Clima Kaflex.

Certification

Passivhaus ph A certified component.

Seal

EPDM rubber.

Dimensions

145 x 145 mm.

Adhesive

Tescon Vana.

Cable

For two 4.8–12 mm diameter cables.

Third party certifications

Passive House Institute - Certificate

Passive House Institute - Certificate

Pro Clima Kaflex and Roflex Passivhaus Component Certificate

Literature

Kaflex Duo Technical Datasheet

Kaflex Duo Technical Datasheet

Kaflex Mono Technical Datasheet

Kaflex Mono Technical Datasheet

Kaflex Multi Technical Datasheet

Kaflex Multi Technical Datasheet

Pro Clima Warranty Agreement

Pro Clima Warranty Agreement

Pro Clima Product Portfolio

Pro Clima Product Portfolio

Pro Clima Product Guide EBS Leaflet

Pro Clima Product Guide EBS Leaflet

Airtightness Made Easy Ecological Building Systems Leaflet

Airtightness Made Easy Ecological Building Systems Leaflet

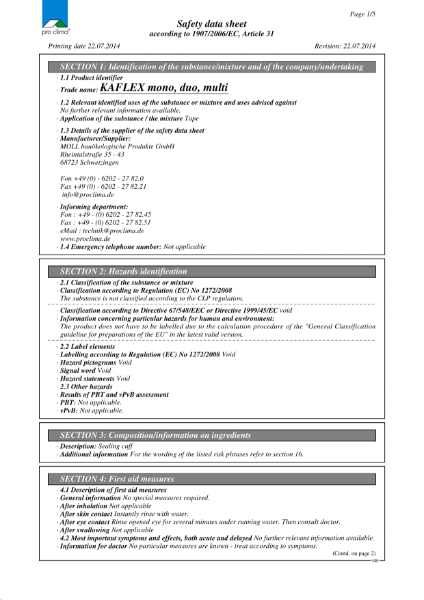

Kaflex Mono, Duo & Multi Safety Datasheet
