Pro Clima Tescon Naideck - Nail Sealing Tape

Verified by manufacturer 5 months ago

Pro Clima

Double-sided nail sealing tape.

Jump to:
+44 (0)1228 711511 Website

Application

  • Nail sealing tape under counter battens for sloped roof structures.
  • In accordance with the Central Association of the German Roofing Trade (ZVDH), the use of nail sealing tapes in combination with 'underlays/ sarking membranes with seam and perforation protection' (SOLITEX connect variants) is a required additional measure in the case of “more demanding requirements” (e.g. if the roof pitch is less than the standard roof pitch).
  • If required, TESCON NAIDECK also serves as a suitable additional measure to create a temporary covering.

Description

Butyl rubber double-sided nail sealing tape with siliconized paper release film.


Features and benefits:

  • Very good sealing effect: sealing material is pulled into the hole created when a nail or screw is fitted.
  • Conforms to regulations: satisfies the requirements of ZVDH and of SIA 232/1.
  • Reliable during the construction phase: suitable for temporary coverings / sealing during construction work.

General information

Color

Black

Finish

Smooth

Material

Butyl

Shape

Rectangle

Length

20000 mm

Width

50 mm

75 mm

Height

1 mm

Guidance for specification option:

Thickness.

Warranty description

Ten year

Uniclass

Pr_35_90_87_09 Butyl rubber sealant tapesPrimary

CAWS

H65/10 Reconstituted slate roof tiling

H60/3 Roof tiling

H65/5 Roof tiling

H60/120 Concrete roof tiling

H60/105 Clay roof tiling

H64/10 Wood shingle/ shake roofing

H67/5 Metal roof tiling

H64/15 Vertical wood shingle/ shakes

H67/8 Metal vertical tiling

H62/3 Roof slating

H61/5 Roof slating

H67/130 Metal vertical tiling

H67/110 Metal roof tiling

H65/135 Ceramic slate roof tiling

H65/125 Reconstituted slate roof tiling

H65/115 Concrete roof tiling

H65/105 Clay roof tiling

H64/130 Vertical wood shingle/ shakes

H64/110 Wood shingle/ shake roofing

H62/145 Roof slating

H62/125 Roof slating

H62/105 Roof slating

H61/105 Roof slating

Specification data - Butyl rubber sealant tapes

Fire performance

-

Fire resistance

NPD (no performance determined).

Reaction to fire

NPD (no performance determined).

Core

-

Material

Butyl rubber.

Bond

Double-sided nail sealing tape.

Size

50 mm wide.

75 mm wide.

Colour

Black.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Not recyclable due to permanent bond

Literature

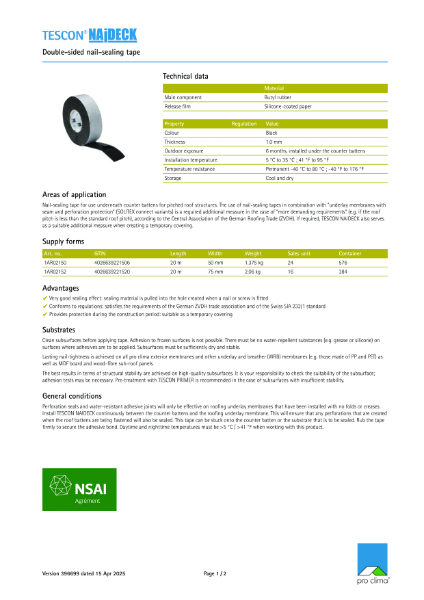

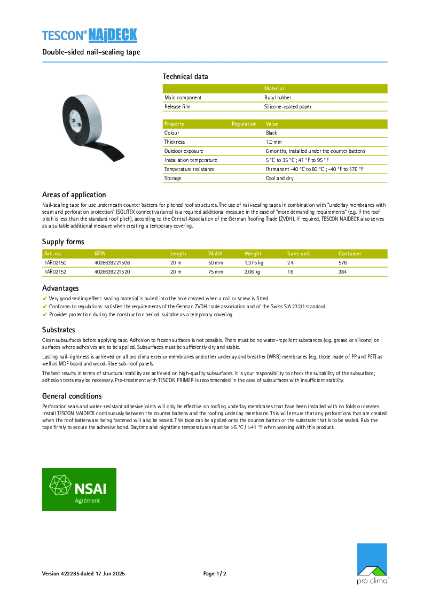

Pro Clima Tescon Naideck Technical Datasheet

Pro Clima Tescon Naideck Technical Datasheet

Pro Clima Warranty Agreement

Pro Clima Warranty Agreement

Thermal Roof Solutions Leaflet

Thermal Roof Solutions Leaflet

Airtightness Made Easy Ecological Building Systems Leaflet

Airtightness Made Easy Ecological Building Systems Leaflet

Pro Clima Product Portfolio

Pro Clima Product Portfolio

Tescon Naideck Material Safety Datasheet

Tescon Naideck Material Safety Datasheet
